How to Use XL47015 DC- DC STEP DOWN CONVERTER MODULE: Examples, Pinouts, and Specs

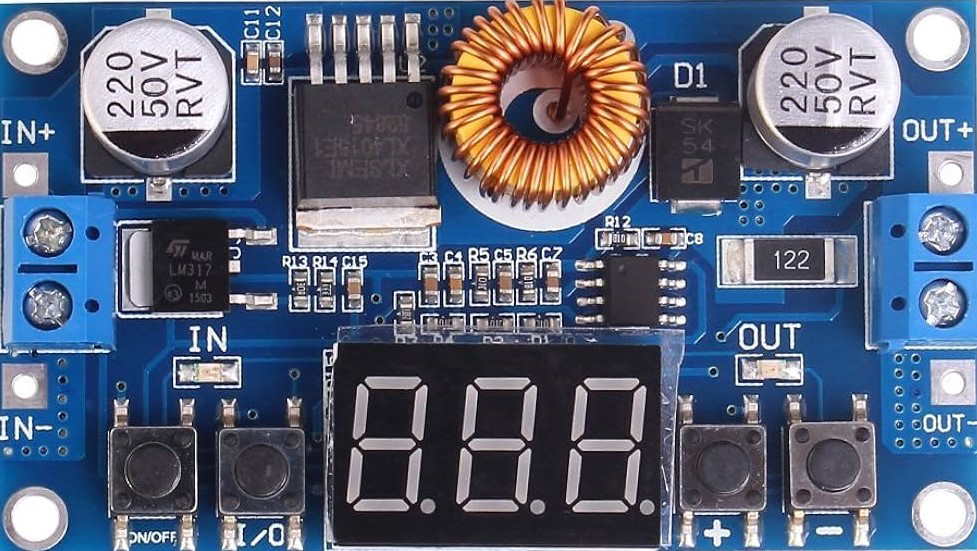

Image of XL47015 DC- DC STEP DOWN CONVERTER MODULE
Cirkit Designer LogoDesign with XL47015 DC- DC STEP DOWN CONVERTER MODULE in Cirkit Designer

Introduction

The XL4701-5 DC-DC Step Down Converter Module is a compact and efficient voltage regulator designed to convert a higher DC input voltage to a lower, stable DC output voltage. This module is based on the XL4701-5 integrated circuit, which ensures high efficiency and reliable performance. It is widely used in applications requiring regulated power for microcontrollers, sensors, and other electronic devices.

Explore Projects Built with XL47015 DC- DC STEP DOWN CONVERTER MODULE

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
DC-DC Converter and Relay Module Power Distribution System
Image of relay: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with XL47015 DC- DC STEP DOWN CONVERTER MODULE

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of relay: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
DC-DC Converter and Relay Module Power Distribution System
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of solar system router ups: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing XL47015 DC- DC STEP DOWN CONVERTER MODULE in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers (e.g., Arduino, ESP32, Raspberry Pi)
  • Voltage regulation for battery-powered devices
  • Supplying power to sensors, motors, and other peripherals
  • DIY electronics projects and prototyping
  • Industrial and automotive electronics

Technical Specifications

The following table outlines the key technical details of the XL4701-5 DC-DC Step Down Converter Module:

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.25V to 37V (adjustable via potentiometer)
Output Current Up to 5A (with proper heat dissipation)
Efficiency Up to 92%
Switching Frequency 180 kHz
Operating Temperature -40°C to +85°C
Dimensions 43mm x 21mm x 14mm

Pin Configuration and Descriptions

The XL4701-5 module typically has the following pinout:

Pin Name Description
VIN Input voltage (connect to the higher DC voltage)
GND Ground (common ground for input and output)
VOUT Output voltage (regulated lower DC voltage)
ADJ Adjustable pin (connected to the onboard potentiometer for setting the output voltage)

Usage Instructions

How to Use the XL4701-5 in a Circuit

  1. Connect the Input Voltage (VIN):

    • Attach the positive terminal of your DC power source to the VIN pin.
    • Connect the negative terminal of your power source to the GND pin.
  2. Set the Desired Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage at the VOUT pin while adjusting.
  3. Connect the Load:

    • Attach the positive terminal of your load to the VOUT pin.
    • Connect the negative terminal of your load to the GND pin.
  4. Ensure Proper Heat Dissipation:

    • For currents above 2A, attach a heatsink to the module to prevent overheating.

Important Considerations and Best Practices

  • Input Voltage: Ensure the input voltage is at least 1.5V higher than the desired output voltage for proper regulation.
  • Current Limit: Do not exceed the maximum output current of 5A. Use a heatsink for high-current applications.
  • Polarity: Double-check the polarity of your connections to avoid damaging the module.
  • Noise Filtering: Add input and output capacitors (e.g., 100µF electrolytic capacitors) to reduce voltage ripple and noise.

Example: Using the XL4701-5 with an Arduino UNO

The XL4701-5 can be used to power an Arduino UNO by stepping down a 12V DC input to 5V. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect a 12V DC power source to the VIN and GND pins of the XL4701-5.
  • Adjust the potentiometer to set the output voltage to 5V.
  • Connect the VOUT pin to the Arduino UNO's 5V pin.
  • Connect the GND pin of the XL4701-5 to the Arduino UNO's GND pin.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by XL4701-5
// Ensure the XL4701-5 output is set to 5V before connecting to Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the specified range (4.5V to 40V).
    • Verify all connections, especially the polarity of the input and output.
  2. Output Voltage is Incorrect:

    • Adjust the potentiometer while monitoring the output voltage with a multimeter.
    • Ensure the input voltage is at least 1.5V higher than the desired output voltage.
  3. Module Overheating:

    • Reduce the load current or attach a heatsink to the module.
    • Ensure proper ventilation around the module.
  4. High Voltage Ripple or Noise:

    • Add input and output capacitors (e.g., 100µF or higher) to filter noise.
    • Use shorter wires for connections to minimize interference.

FAQs

Q: Can the XL4701-5 be used to charge batteries?
A: Yes, but ensure the output voltage is set to match the battery's charging voltage, and use a current-limiting circuit if necessary.

Q: What happens if I reverse the polarity of the input voltage?
A: The module may be damaged. Always double-check the polarity before powering the module.

Q: Can I use the XL4701-5 to power a Raspberry Pi?
A: Yes, but ensure the output voltage is set to 5V and the current requirement of the Raspberry Pi (including peripherals) does not exceed 5A.

Q: Is the module waterproof?
A: No, the XL4701-5 is not waterproof. Use it in a dry environment or enclose it in a waterproof case if necessary.
