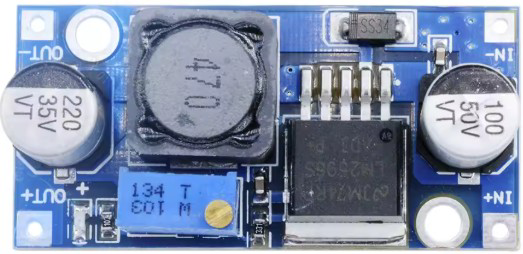

How to Use StepDownLM2596: Examples, Pinouts, and Specs

The LM2596 is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. It is widely used in power supply applications due to its high efficiency, ease of use, and robust protection features. The LM2596 supports a wide input voltage range and provides an adjustable output voltage, making it suitable for a variety of electronic projects and devices.

• DC-DC power supply modules
• Battery-powered devices
• Voltage regulation for microcontrollers and sensors
• LED drivers
• Industrial automation systems

The LM2596 is available in multiple variants, including fixed output voltage versions (e.g., 3.3V, 5V, 12V) and an adjustable version. Below are the key technical details:

The LM2596 typically comes in a 5-pin package. Below is the pinout description:

1. Input Voltage: Connect the input voltage (VIN) to the LM2596. Ensure the input voltage is within the range of 4.5V to 40V.
2. Output Voltage: For the adjustable version, use a resistor divider network connected to the Feedback pin to set the desired output voltage. For fixed versions, no external resistors are needed.
3. Capacitors: Place input and output capacitors close to the regulator to ensure stable operation. Typical values are:
   • Input capacitor: 100 µF electrolytic
   • Output capacitor: 220 µF electrolytic
4. Inductor: Use an appropriate inductor value (e.g., 33 µH) based on the desired output voltage and current.
5. Heat Dissipation: If operating at high currents, attach a heatsink to the LM2596 to prevent overheating.

Below is a basic circuit for the adjustable version of the LM2596:

VIN (4.5V-40V) ----> [LM2596] ----> VOUT (1.23V-37V)

• Connect a resistor divider to the Feedback pin to set the output voltage.
• Add input and output capacitors for stability.

The LM2596 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example code to read the voltage on the Arduino:

// Example code to read the output voltage of the LM2596 using Arduino UNO
// Connect the LM2596 output to the Arduino's A0 pin for voltage measurement.

const int voltagePin = A0; // Analog pin connected to LM2596 output
const float referenceVoltage = 5.0; // Arduino reference voltage (5V)
const int resolution = 1024; // ADC resolution (10-bit)

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(voltagePin); // Read the analog value
  float voltage = (sensorValue * referenceVoltage) / resolution;
  // Convert ADC value to voltage

  Serial.print("Output Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

• Input Voltage: Ensure the input voltage is at least 1.5V higher than the desired output voltage for proper regulation.
• Heat Management: Use a heatsink or proper ventilation if the regulator operates at high currents.
• Capacitor Selection: Use low-ESR capacitors for better performance.
• Inductor Selection: Choose an inductor with a current rating higher than the maximum load current.

1. Output Voltage is Incorrect

   • Check the resistor divider network (for adjustable versions).
   • Verify the input voltage is within the specified range.
   • Ensure capacitors and inductors are correctly rated and connected.

2. Overheating

   • Attach a heatsink to the LM2596.
   • Reduce the load current if possible.
   • Ensure proper airflow around the component.

3. No Output Voltage

   • Verify the ON/OFF pin is not connected to GND (if used).
   • Check for loose or incorrect connections in the circuit.

4. High Output Ripple

   • Use low-ESR capacitors for input and output.
   • Increase the value of the output capacitor.

Q: Can the LM2596 be used with a battery as the input source?
A: Yes, the LM2596 can regulate voltage from a battery as long as the input voltage is within the specified range (4.5V to 40V).

Q: What is the maximum current the LM2596 can handle?
A: The LM2596 can handle up to 3A of output current, but proper heat dissipation is required at higher currents.

Q: Can I use the LM2596 to power a Raspberry Pi?
A: Yes, the LM2596 can step down a higher voltage (e.g., 12V) to 5V to power a Raspberry Pi. Ensure the output current is sufficient for the Raspberry Pi's requirements.

Q: How do I calculate the resistor values for the adjustable version?
A: Use the formula:
[ V_{OUT} = V_{REF} \times \left(1 + \frac{R_2}{R_1}\right) ]
where ( V_{REF} ) is 1.23V, ( R_1 ) is the resistor connected to GND, and ( R_2 ) is the resistor connected to the Feedback pin.

This concludes the documentation for the LM2596 step-down voltage regulator.
