How to Use dh11: Examples, Pinouts, and Specs

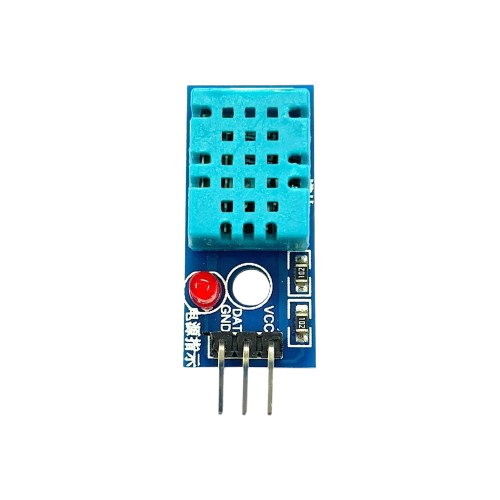

The DHT11, manufactured by ME with part ID UNO, is a digital temperature and humidity sensor designed for accurate environmental monitoring. It provides temperature readings in Celsius and humidity measurements in percentage. The DHT11 is widely used in applications such as weather stations, HVAC systems, and other projects requiring reliable temperature and humidity data.

• Weather monitoring systems
• Home automation and HVAC control
• Greenhouse and agricultural monitoring
• IoT-based environmental sensing projects

The DHT11 sensor is a low-cost, easy-to-use component with the following key specifications:

The DHT11 has a 4-pin interface, but only 3 pins are typically used in most applications. Below is the pinout:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Communication: Connect the DATA pin to a digital input pin on your microcontroller (e.g., Arduino UNO). Use a 10kΩ pull-up resistor between the DATA pin and VCC to ensure stable communication.
3. Read Data: Use a compatible library or write custom code to read temperature and humidity data from the sensor.

• Sampling Rate: The DHT11 can only provide one reading per second. Avoid polling the sensor more frequently to prevent errors.
• Placement: Place the sensor in an area with good airflow for accurate readings. Avoid placing it near heat sources or in direct sunlight.
• Wiring Length: Keep the wiring between the sensor and microcontroller as short as possible to minimize signal degradation.

Below is an example of how to use the DHT11 with an Arduino UNO. This code uses the popular DHT library.

// Include the DHT library
#include <DHT.h>

// Define the DHT11 pin and type
#define DHTPIN 2       // Connect the DATA pin of DHT11 to digital pin 2
#define DHTTYPE DHT11  // Specify the sensor type as DHT11

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start serial communication at 9600 baud
  dht.begin();         // Initialize the DHT sensor
  Serial.println("DHT11 Sensor Initialized");
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print("%  Temperature: ");
  Serial.print(temperature);
  Serial.println("°C");
}

• Install the DHT library in the Arduino IDE before uploading the code. You can find it in the Library Manager.
• Ensure the pull-up resistor (10kΩ) is connected between the DATA pin and VCC.

1. No Data or Incorrect Readings:

   • Ensure the wiring is correct and the pull-up resistor is properly connected.
   • Verify that the sensor is powered with the correct voltage (3.3V to 5.5V).
   • Check for loose connections or damaged wires.

2. "Failed to read from DHT sensor!" Error:

   • Ensure the DATA pin is connected to the correct digital pin on the microcontroller.
   • Confirm that the DHT library is installed and correctly configured in the code.

3. Slow or Unstable Readings:

   • Avoid polling the sensor more than once per second.
   • Reduce the length of the wires connecting the sensor to the microcontroller.

Q: Can the DHT11 measure negative temperatures?
A: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q: Can I use the DHT11 with a 3.3V microcontroller?
A: Yes, the DHT11 operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V systems.

Q: What is the maximum distance between the DHT11 and the microcontroller?
A: The recommended maximum distance is 20 meters, but this may require a lower pull-up resistor value (e.g., 4.7kΩ) to maintain signal integrity.

Q: How does the DHT11 compare to the DHT22?
A: The DHT22 offers a wider temperature and humidity range with higher accuracy but is more expensive. The DHT11 is a cost-effective option for basic applications.

By following this documentation, you can effectively integrate the DHT11 sensor into your projects for reliable temperature and humidity monitoring.
