How to Use LED: Two Pin (red) - Long Pins: Examples, Pinouts, and Specs

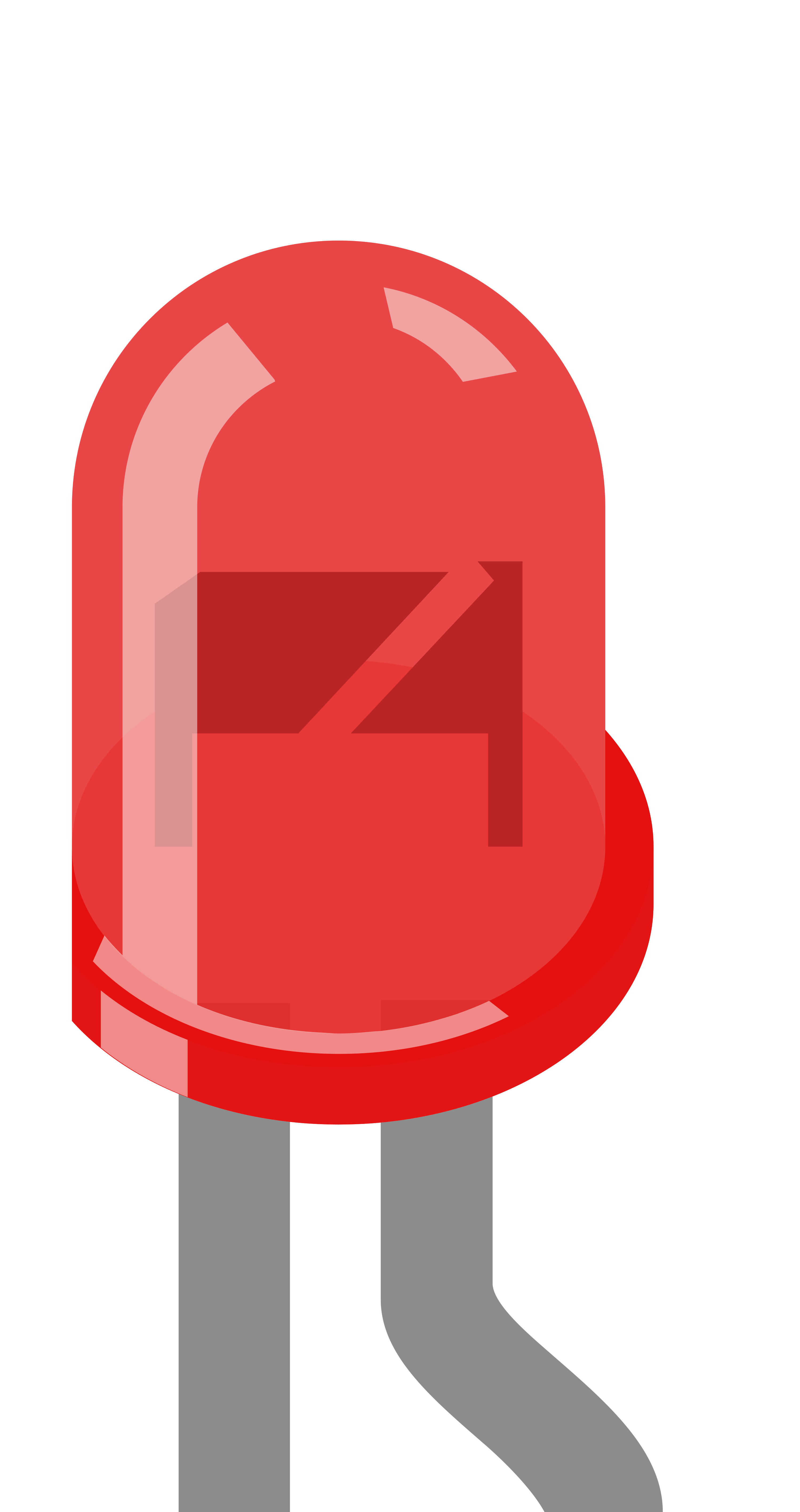

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current flows through it. This specific LED emits red light and features two pins of differing lengths: the longer pin is the anode (positive), and the shorter pin is the cathode (negative). This design ensures proper orientation during circuit assembly.

Common applications for this red LED include:

• Indicator lights in electronic devices
• Status indicators in circuits
• Decorative lighting
• Educational and prototyping projects

Below are the key technical details for the red two-pin LED:

The LED has two pins, as described below:

1. Identify the Pins: Locate the longer pin (anode) and shorter pin (cathode). The cathode may also have a flat edge on the LED casing.
2. Connect to Power Source:
   • Connect the anode to the positive terminal of the power source.
   • Connect the cathode to the negative terminal, typically through a current-limiting resistor.
3. Use a Resistor: Always use a resistor in series with the LED to limit the current and prevent damage. Calculate the resistor value using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:
   • ( V_{supply} ) is the supply voltage
   • ( V_f ) is the forward voltage of the LED
   • ( I_f ) is the desired forward current (e.g., 20mA)

Below is an example of connecting the red LED to an Arduino UNO:

• Connect the anode (long pin) of the LED to a digital pin on the Arduino (e.g., pin 13) through a 220Ω resistor.
• Connect the cathode (short pin) to the Arduino's GND pin.

// Example code to blink a red LED connected to pin 13 of Arduino UNO

// Define the pin number for the LED
const int ledPin = 13;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

• Polarity: Ensure the LED is connected with the correct polarity (anode to positive, cathode to negative).
• Current Limiting: Always use a resistor to prevent excessive current from damaging the LED.
• Voltage Range: Do not exceed the maximum forward voltage or reverse voltage ratings.

1. LED Does Not Light Up:

   • Check the polarity of the LED. Ensure the anode is connected to the positive terminal.
   • Verify the resistor value. A resistor with too high a value may prevent sufficient current flow.
   • Ensure the power supply voltage is adequate for the LED's forward voltage.

2. LED Burns Out Quickly:

   • Verify that a current-limiting resistor is used and properly calculated.
   • Ensure the supply voltage does not exceed the LED's maximum ratings.

3. LED Flickers or is Dim:

   • Check for loose connections in the circuit.
   • Ensure the power supply is stable and not fluctuating.

Q: Can I connect the LED directly to a 5V power source without a resistor?
A: No, doing so will likely damage the LED due to excessive current. Always use a current-limiting resistor.

Q: How do I calculate the resistor value for a 9V battery?
A: Use the formula ( R = \frac{V_{supply} - V_f}{I_f} ). For a 9V battery, ( R = \frac{9V - 2V}{0.02A} = 350\Omega ). Use the nearest standard resistor value (e.g., 330Ω or 360Ω).

Q: Can I use this LED with a 3.3V microcontroller?
A: Yes, but ensure the forward voltage of the LED is within the range of the supply voltage, and use an appropriate resistor to limit the current.

By following these guidelines, you can effectively use the red two-pin LED in your projects!
