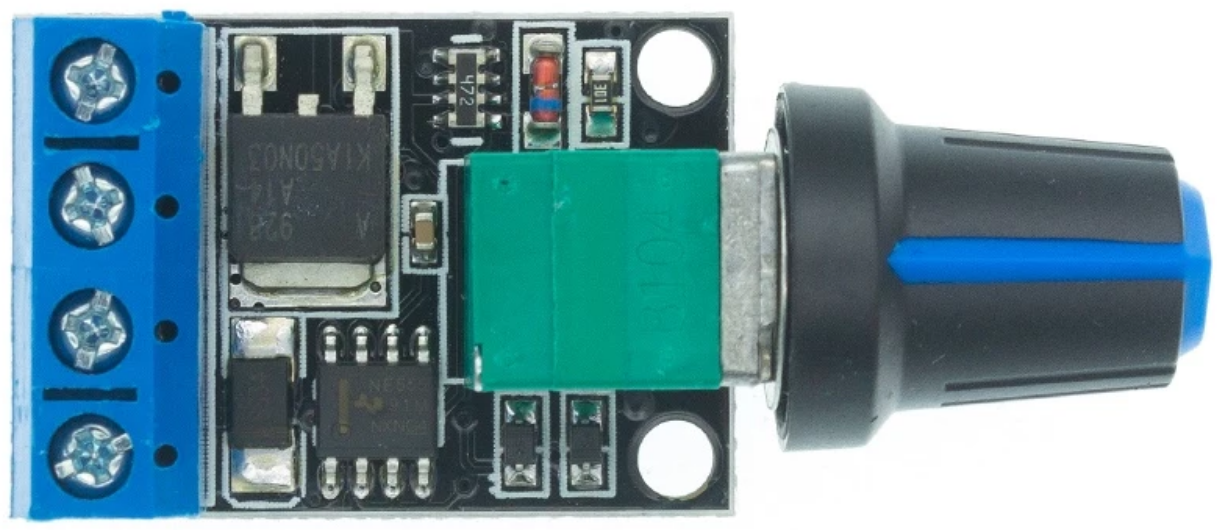

Image of PWM DC Motor Speed Control 5-16V -
Cirkit Designer LogoDesign with PWM DC Motor Speed Control 5-16V - in Cirkit Designer

Introduction

The PWM DC Motor Speed Control 5-16V is a compact and efficient controller designed to regulate the speed of DC motors using Pulse Width Modulation (PWM) technology. By varying the duty cycle of the PWM signal, this controller allows precise control of motor speed and torque without significant energy loss. It is ideal for applications requiring variable motor speeds, such as robotics, fans, conveyor belts, and other motor-driven systems.

Explore Projects Built with PWM DC Motor Speed Control 5-16V -

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
12V PWM-Controlled Water Pump System
Image of moter speed controller: A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
This circuit is designed to control the speed of a water pump using a PWM DC motor speed controller. The 12V5Ah battery provides power to the speed controller, which in turn regulates the power supplied to the water pump, allowing for adjustable flow rates. There is no microcontroller code provided, indicating that the speed control is likely adjusted manually via the PWM controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
PWM-Controlled DC Motor Speed Regulator with DC Barrel Jack Power Input
Image of Siren: A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
This circuit controls the speed of a DC motor using a 12V PWM speed controller. Power is supplied to the speed controller through a 2.1mm DC barrel jack, which then modulates the voltage and current to the motor's terminals to adjust its speed. There is no microcontroller code involved, indicating that the speed control is likely adjusted manually via the speed controller's onboard settings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Motor Speed Controller with TP4056 and ESP32
Image of Stimulator: A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
This circuit is designed to control the speed of a motor using a PWM motor speed controller powered by a Lithium-Ion battery. The TP4056 module manages battery charging, while a step-up boost converter regulates the voltage supplied to the motor and an Elektro Pad. A rocker switch is included to control the power flow to the motor speed controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
ATtiny85 Controlled DC Motor Speed Regulator with Potentiometer
Image of Q&A On Reddit (faulty circuit): A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
This circuit is designed to control the speed of a DC motor using a PWM signal from an ATtiny85 microcontroller. The motor's speed is adjusted by a rotary potentiometer, and a TIP120 Darlington transistor acts as a switch to regulate the motor's power supply, with a resistor to limit the base current.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with PWM DC Motor Speed Control 5-16V -

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of moter speed controller: A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
12V PWM-Controlled Water Pump System
This circuit is designed to control the speed of a water pump using a PWM DC motor speed controller. The 12V5Ah battery provides power to the speed controller, which in turn regulates the power supplied to the water pump, allowing for adjustable flow rates. There is no microcontroller code provided, indicating that the speed control is likely adjusted manually via the PWM controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Siren: A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
PWM-Controlled DC Motor Speed Regulator with DC Barrel Jack Power Input
This circuit controls the speed of a DC motor using a 12V PWM speed controller. Power is supplied to the speed controller through a 2.1mm DC barrel jack, which then modulates the voltage and current to the motor's terminals to adjust its speed. There is no microcontroller code involved, indicating that the speed control is likely adjusted manually via the speed controller's onboard settings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Stimulator: A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
Battery-Powered Motor Speed Controller with TP4056 and ESP32
This circuit is designed to control the speed of a motor using a PWM motor speed controller powered by a Lithium-Ion battery. The TP4056 module manages battery charging, while a step-up boost converter regulates the voltage supplied to the motor and an Elektro Pad. A rocker switch is included to control the power flow to the motor speed controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Q&A On Reddit (faulty circuit): A project utilizing PWM DC Motor Speed Control 5-16V -  in a practical application
ATtiny85 Controlled DC Motor Speed Regulator with Potentiometer
This circuit is designed to control the speed of a DC motor using a PWM signal from an ATtiny85 microcontroller. The motor's speed is adjusted by a rotary potentiometer, and a TIP120 Darlington transistor acts as a switch to regulate the motor's power supply, with a resistor to limit the base current.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics and automation systems
  • Electric fans and blowers
  • Conveyor belts and industrial machinery
  • Model vehicles and hobbyist projects
  • Adjustable-speed pumps and compressors

Technical Specifications

The following table outlines the key technical details of the PWM DC Motor Speed Control 5-16V:

Parameter Specification
Input Voltage Range 5V to 16V DC
Output Current Up to 3A (continuous)
PWM Frequency 20 kHz
Duty Cycle Range 0% to 100%
Efficiency >90%
Control Method Rotary potentiometer (manual)
Dimensions 30mm x 25mm x 15mm
Operating Temperature -20°C to 60°C

Pin Configuration and Descriptions

The PWM DC Motor Speed Control module typically has the following connections:

Pin/Terminal Label Description
1 VIN+ Positive input voltage (5V to 16V DC)
2 VIN- Negative input voltage (ground)
3 M+ Positive terminal of the DC motor
4 M- Negative terminal of the DC motor

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect a DC power source (5V to 16V) to the VIN+ and VIN- terminals. Ensure the power supply can provide sufficient current for the motor.
  2. Motor Connection: Connect the DC motor to the M+ and M- terminals. Ensure the motor's voltage and current ratings are compatible with the controller.
  3. Speed Adjustment: Use the rotary potentiometer on the module to adjust the motor speed. Turning the potentiometer clockwise increases the speed, while turning it counterclockwise decreases it.
  4. Testing: Power on the circuit and observe the motor's behavior. Adjust the potentiometer as needed to achieve the desired speed.

Important Considerations and Best Practices

  • Voltage Compatibility: Ensure the input voltage matches the motor's rated voltage to avoid damage.
  • Current Limitations: Do not exceed the module's maximum continuous current rating of 3A.
  • Heat Dissipation: If operating at high currents for extended periods, ensure adequate ventilation or heat sinking to prevent overheating.
  • Polarity: Double-check the polarity of all connections to avoid damage to the module or motor.
  • Noise Suppression: For sensitive applications, consider adding a capacitor across the motor terminals to reduce electrical noise.

Example: Connecting to an Arduino UNO

The PWM DC Motor Speed Control module can be used in conjunction with an Arduino UNO to automate motor speed control. Below is an example of how to connect and control the module using a PWM signal from the Arduino:

Circuit Connections

  • Connect the VIN+ and VIN- terminals of the module to a 12V DC power supply.
  • Connect the M+ and M- terminals to the DC motor.
  • Connect the Arduino's PWM output pin (e.g., pin 9) to the module's potentiometer input (if applicable, or bypass the potentiometer).

Arduino Code Example

// Arduino code to control motor speed using PWM signal
// Ensure the motor controller is connected to pin 9 (PWM-capable pin)

const int motorPin = 9; // PWM pin connected to the motor controller

void setup() {
  pinMode(motorPin, OUTPUT); // Set motorPin as an output
}

void loop() {
  for (int speed = 0; speed <= 255; speed += 5) {
    analogWrite(motorPin, speed); // Gradually increase motor speed
    delay(50); // Wait 50ms between speed increments
  }

  delay(1000); // Hold at full speed for 1 second

  for (int speed = 255; speed >= 0; speed -= 5) {
    analogWrite(motorPin, speed); // Gradually decrease motor speed
    delay(50); // Wait 50ms between speed decrements
  }

  delay(1000); // Hold at zero speed for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Does Not Spin

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Verify all connections and ensure the power supply meets the voltage and current requirements.
  2. Motor Spins at Full Speed Only

    • Cause: Faulty potentiometer or incorrect PWM signal.
    • Solution: Check the potentiometer for damage or verify the PWM signal from the Arduino.
  3. Overheating

    • Cause: Excessive current draw or poor ventilation.
    • Solution: Ensure the motor's current draw does not exceed 3A and improve ventilation around the module.
  4. Electrical Noise

    • Cause: High-frequency switching of the PWM signal.
    • Solution: Add a capacitor (e.g., 0.1µF) across the motor terminals to suppress noise.

FAQs

  • Can I use this module with a 24V motor? No, the module is designed for a maximum input voltage of 16V. Using a higher voltage may damage the module.

  • Is reverse polarity protection included? Most modules do not include reverse polarity protection. Always double-check connections before powering the circuit.

  • Can I control multiple motors with one module? No, this module is designed to control a single motor. For multiple motors, use separate modules or a multi-channel controller.

  • What happens if I exceed the current rating? Exceeding the 3A current rating may cause the module to overheat or fail. Use a motor with a compatible current rating.
