How to Use 5x AA Battery Module: Examples, Pinouts, and Specs

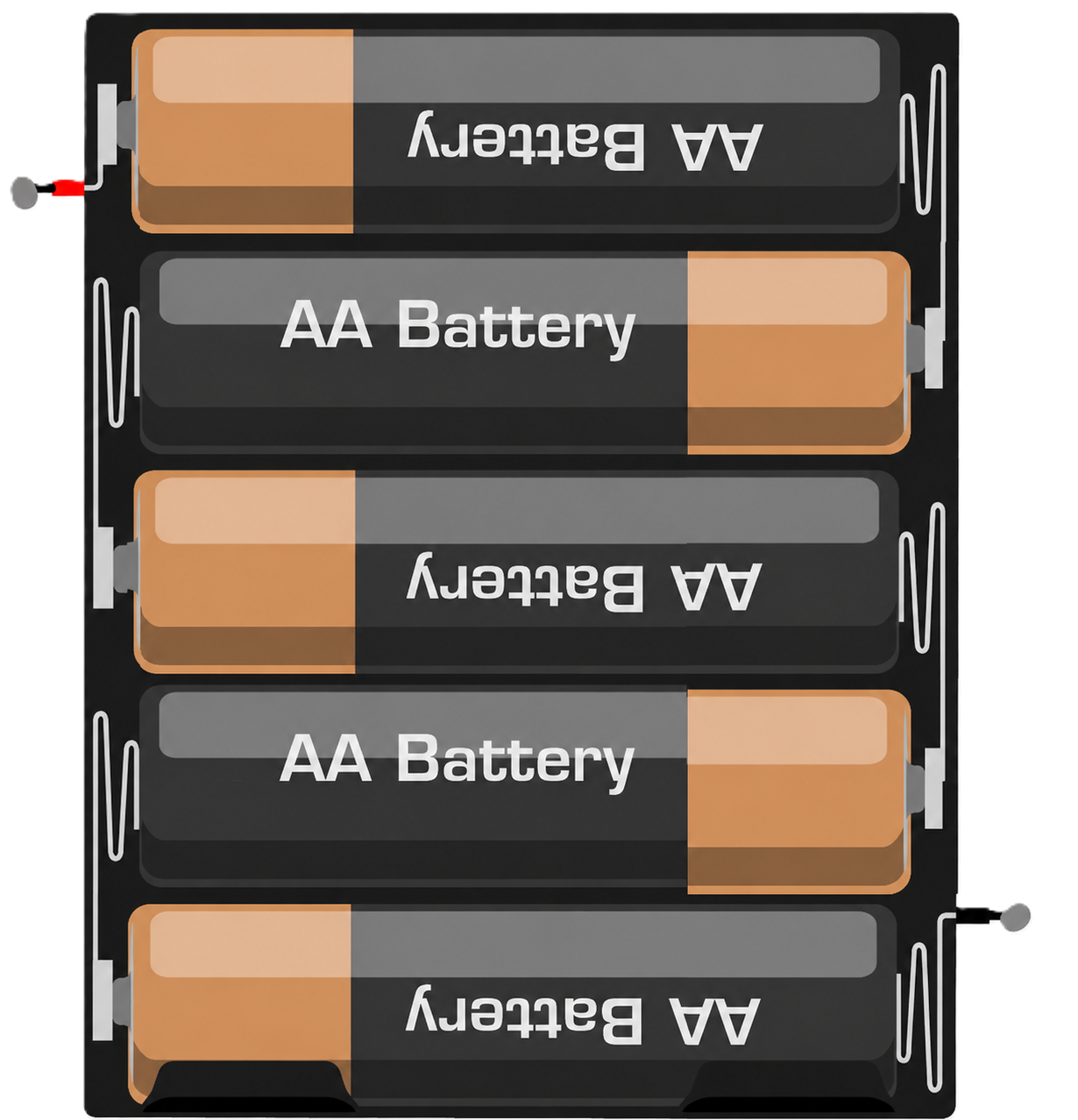

The 5x AA Battery Module is a battery holder designed to securely house five AA batteries. It provides a compact and reliable power source for various electronic projects, making it ideal for powering microcontrollers, sensors, motors, and other low-power devices. The module typically includes a durable plastic casing, metal contacts for secure electrical connections, and leads or terminals for easy integration into circuits.

• Powering microcontroller boards such as Arduino, Raspberry Pi, or ESP32.
• Supplying energy to small DC motors or servo motors in robotics projects.
• Providing portable power for LED strips, sensors, or other low-power devices.
• Acting as a backup power source in small electronic systems.

• Battery Type: 5x AA batteries (1.5V each, alkaline or rechargeable NiMH).
• Output Voltage:
  • 7.5V (when using 1.5V alkaline batteries).
  • 6V (when using 1.2V rechargeable NiMH batteries).
• Maximum Current: Dependent on the battery type and capacity (e.g., 2000mAh for typical AA batteries).
• Connector Type: Bare wire leads or snap connectors (varies by model).
• Material: Durable plastic casing with metal spring and flat contacts.
• Dimensions: Approximately 70mm x 60mm x 20mm (varies slightly by manufacturer).

The 5x AA Battery Module does not have traditional pins but instead features two leads for electrical connections:

1. Insert Batteries: Place five AA batteries into the module, ensuring correct polarity as indicated inside the holder.
2. Connect Leads:
   • Attach the red lead to the positive input of your circuit.
   • Attach the black lead to the ground (negative) input of your circuit.
3. Secure Connections: Use soldering, screw terminals, or a breadboard to ensure stable connections.
4. Verify Voltage: Measure the output voltage with a multimeter to confirm it matches your circuit's requirements.

• Battery Type: Use batteries of the same type and charge level to ensure consistent performance.
• Voltage Regulation: If your circuit requires a lower voltage, use a voltage regulator (e.g., LM7805 for 5V output).
• Polarity: Double-check the polarity of the connections to avoid damaging your components.
• Heat Management: Avoid overloading the module, as excessive current draw can cause the batteries to overheat.
• Rechargeable Batteries: If using rechargeable batteries, ensure they are fully charged for optimal performance.

The 5x AA Battery Module can be used to power an Arduino UNO via its VIN pin. Below is an example setup:

1. Connect the red lead of the battery module to the VIN pin on the Arduino.
2. Connect the black lead of the battery module to the GND pin on the Arduino.

The following Arduino code blinks an LED connected to pin 13, powered by the 5x AA Battery Module:

// Blink an LED connected to pin 13
// Ensure the Arduino is powered by the 5x AA Battery Module

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Batteries are inserted incorrectly or are depleted.
   • Solution: Check the battery orientation and replace with fresh batteries.

2. Voltage Too Low:

   • Cause: Using partially discharged batteries or rechargeable batteries with lower nominal voltage.
   • Solution: Use fully charged batteries or switch to alkaline batteries for higher voltage.

3. Overheating:

   • Cause: Excessive current draw from the circuit.
   • Solution: Ensure the circuit's current requirements are within the capacity of the batteries.

4. Loose Connections:

   • Cause: Poor contact between the leads and the circuit.
   • Solution: Secure the connections using soldering or proper connectors.

• Always measure the output voltage with a multimeter before connecting the module to your circuit.
• If the module is not functioning as expected, inspect the battery contacts for corrosion or dirt and clean them if necessary.
• Avoid mixing old and new batteries, as this can lead to uneven discharge and reduced performance.

By following these guidelines, the 5x AA Battery Module can serve as a reliable and efficient power source for your electronic projects.
