How to Use UNO_R3: Examples, Pinouts, and Specs

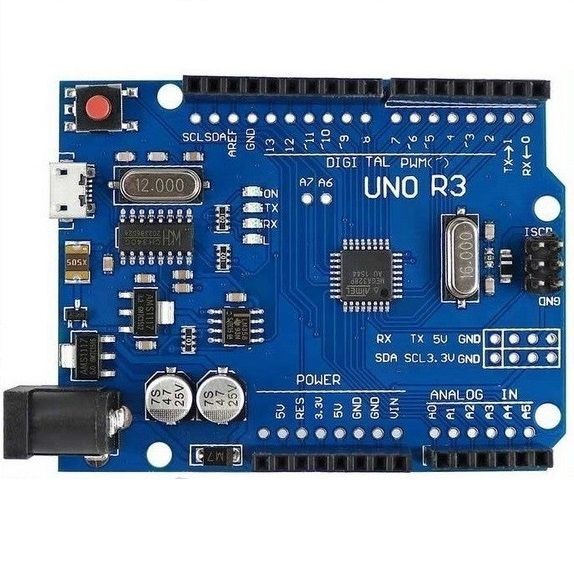

Image of UNO_R3
Cirkit Designer LogoDesign with UNO_R3 in Cirkit Designer

Introduction

The Arduino UNO R3 is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is one of the most popular and versatile boards in the Arduino ecosystem, designed for both beginners and experienced developers. The UNO R3 is widely used for prototyping, educational purposes, and building interactive electronic projects.

With 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a USB connection for programming, a power jack, and a reset button, the UNO R3 provides a robust platform for a variety of applications. Its ease of use and extensive community support make it an excellent choice for hobbyists, students, and professionals alike.

Explore Projects Built with UNO_R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing UNO_R3 in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing UNO_R3 in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino RFID Attendance System with SMS Alerts and RTC Synchronization
Image of rfidforattendance: A project utilizing UNO_R3 in a practical application
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the central controller. It features an RFID reader for user identification, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and uses red/green LEDs to indicate access status.
Cirkit Designer LogoOpen Project in Cirkit Designer
RFID Attendance System with SMS Alerts and RTC Synchronization
Image of Copy of diaram: A project utilizing UNO_R3 in a practical application
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the main controller. It features an RFID reader for scanning tags, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and provides visual status indicators with red and green LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with UNO_R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of wheel: A project utilizing UNO_R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit: A project utilizing UNO_R3 in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfidforattendance: A project utilizing UNO_R3 in a practical application
Arduino RFID Attendance System with SMS Alerts and RTC Synchronization
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the central controller. It features an RFID reader for user identification, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and uses red/green LEDs to indicate access status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of diaram: A project utilizing UNO_R3 in a practical application
RFID Attendance System with SMS Alerts and RTC Synchronization
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the main controller. It features an RFID reader for scanning tags, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and provides visual status indicators with red and green LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics and automation
  • IoT (Internet of Things) devices
  • Sensor-based systems
  • LED control and lighting projects
  • Educational tools for learning programming and electronics
  • Prototyping and testing circuits

Technical Specifications

The following table outlines the key technical details of the Arduino UNO R3:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

The Arduino UNO R3 has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

Digital Pins

Pin Number Function Description
0 (RX) Digital I/O, Serial Receive Used for serial communication (UART RX)
1 (TX) Digital I/O, Serial Transmit Used for serial communication (UART TX)
2-13 Digital I/O General-purpose digital input/output pins
3, 5, 6, 9, 10, 11 PWM Output Can output PWM signals for motor control, etc.

Analog Pins

Pin Number Function Description
A0-A5 Analog Input Used to read analog signals (0-5V range)

Power Pins

Pin Name Function Description
VIN Input Voltage External power input (7-12V recommended)
5V Regulated 5V Output Powers external components
3.3V Regulated 3.3V Output Powers low-voltage components
GND Ground Common ground for the circuit
RESET Reset Resets the microcontroller

Communication Pins

Pin Name Function Description
SDA I2C Data Used for I2C communication
SCL I2C Clock Used for I2C communication
RX (0) UART Receive Serial communication receive pin
TX (1) UART Transmit Serial communication transmit pin

Usage Instructions

How to Use the UNO R3 in a Circuit

  1. Powering the Board:

    • Connect the UNO R3 to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer and select the correct board ("Arduino UNO") and port in the IDE.
    • Write your code in the IDE and upload it to the board using the "Upload" button.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the current and voltage requirements of your components are within the board's limits.
  4. Using Shields:

    • The UNO R3 supports a variety of shields (e.g., motor shields, Wi-Fi shields) that can be stacked on top of the board for additional functionality.

Important Considerations and Best Practices

  • Avoid drawing more than 20 mA from any single I/O pin to prevent damage to the microcontroller.
  • Use pull-up or pull-down resistors for stable digital input signals.
  • When using external power, ensure the voltage does not exceed 12V to avoid overheating the voltage regulator.
  • Always connect the GND pin of the UNO R3 to the ground of your circuit for proper operation.

Example Code for Arduino UNO R3

The following example demonstrates how to blink an LED connected to pin 13:

// This example code blinks an LED connected to digital pin 13
// The LED will turn on for 1 second and off for 1 second in a loop

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB drivers for the Arduino UNO R3.
  2. Code does not upload to the board:

    • Verify that the correct board ("Arduino UNO") is selected in the IDE.
    • Press the reset button on the board before uploading the code.
    • Ensure no other program is using the same COM port.
  3. Components are not working as expected:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the UNO R3's voltage and current ratings.
    • Use a multimeter to test for continuity and proper voltage levels.
  4. The board overheats:

    • Check if the input voltage exceeds the recommended range (7-12V).
    • Avoid drawing excessive current from the I/O pins or power pins.

FAQs

Q: Can I power the Arduino UNO R3 with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or the VIN pin. Ensure the voltage is within the recommended range (7-12V).

Q: What is the maximum current the 5V pin can supply?
A: The 5V pin can supply up to 500 mA when powered via USB or up to 1A when powered via an external power source.

Q: Can I use the UNO R3 for wireless communication?
A: Yes, you can use shields or modules like the ESP8266 or Bluetooth modules to enable wireless communication.

Q: Is the Arduino UNO R3 compatible with other Arduino shields?
A: Yes, the UNO R3 is compatible with most Arduino shields designed for standard pin layouts.
