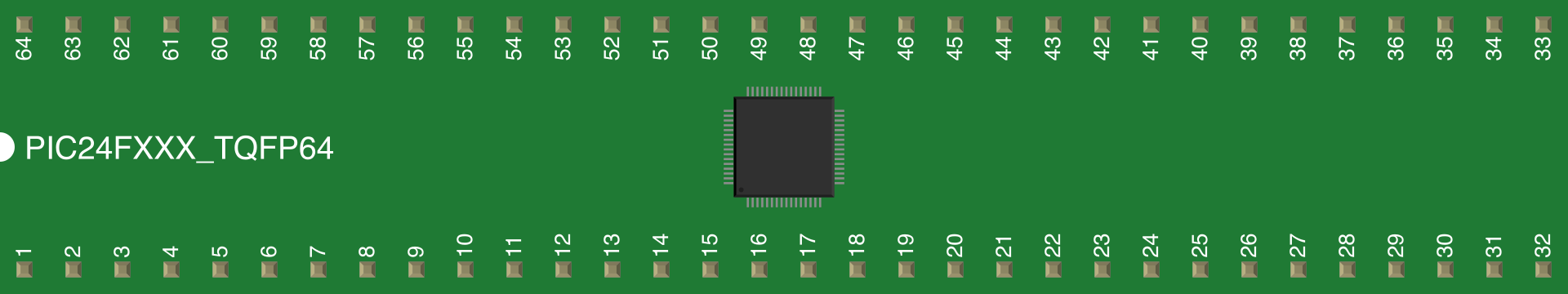

Image of PIC24FXXXDAX06
Cirkit Designer LogoDesign with PIC24FXXXDAX06 in Cirkit Designer

Introduction

The PIC24FXXXDAX06 is a 16-bit microcontroller from Microchip's PIC24 family, designed for high-performance embedded applications. It features a robust architecture, integrated peripherals, and low power consumption, making it ideal for applications such as industrial automation, IoT devices, motor control, and portable electronics. Its versatility and efficiency allow developers to create reliable and energy-efficient systems.

Common applications include:

  • Industrial control systems
  • IoT devices and smart sensors
  • Motor control and robotics
  • Portable and battery-powered devices
  • Data acquisition and signal processing

Explore Projects Built with PIC24FXXXDAX06

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
Image of Pulsefex: A project utilizing PIC24FXXXDAX06 in a practical application
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
STM32F103C8T6 Bluetooth-Controlled Arcade Joystick Interface
Image of RC카 조이스틱: A project utilizing PIC24FXXXDAX06 in a practical application
This circuit features an STM32F103C8T6 microcontroller interfaced with a Bluetooth HC-06 module for wireless communication and an Adafruit Arcade Joystick for user input. The microcontroller's pins B0 and B10 are connected to the TXD and RXD pins of the Bluetooth module, enabling serial communication, while pins B14 and B15 interface with the joystick's directional controls. The circuit is powered by a battery, with power distribution managed through the microcontroller's 3.3V pin and common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ATMEGA328 Microcontroller Circuit with Serial Programming Interface
Image of breadboardArduino: A project utilizing PIC24FXXXDAX06 in a practical application
This circuit features an ATMEGA328 microcontroller configured with a crystal oscillator for precise timing, and a pushbutton for reset functionality. An FTDI Programmer is connected for serial communication, allowing for programming and data exchange with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
STM32F103C8T6-Based Water Level Monitoring and Communication System with SIM900A and LoRa Connectivity
Image of water level: A project utilizing PIC24FXXXDAX06 in a practical application
This circuit features a microcontroller (STM32F103C8T6) interfaced with a SIM900A GSM module, an HC-SR04 ultrasonic sensor, a water level sensor, and a LoRa Ra-02 SX1278 module for long-range communication. The STM32F103C8T6 is configured to communicate with the GSM module and LoRa module via serial connections, and it reads data from the ultrasonic and water level sensors. An FTDI Programmer is connected for programming and serial communication with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with PIC24FXXXDAX06

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Pulsefex: A project utilizing PIC24FXXXDAX06 in a practical application
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RC카 조이스틱: A project utilizing PIC24FXXXDAX06 in a practical application
STM32F103C8T6 Bluetooth-Controlled Arcade Joystick Interface
This circuit features an STM32F103C8T6 microcontroller interfaced with a Bluetooth HC-06 module for wireless communication and an Adafruit Arcade Joystick for user input. The microcontroller's pins B0 and B10 are connected to the TXD and RXD pins of the Bluetooth module, enabling serial communication, while pins B14 and B15 interface with the joystick's directional controls. The circuit is powered by a battery, with power distribution managed through the microcontroller's 3.3V pin and common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of breadboardArduino: A project utilizing PIC24FXXXDAX06 in a practical application
ATMEGA328 Microcontroller Circuit with Serial Programming Interface
This circuit features an ATMEGA328 microcontroller configured with a crystal oscillator for precise timing, and a pushbutton for reset functionality. An FTDI Programmer is connected for serial communication, allowing for programming and data exchange with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of water level: A project utilizing PIC24FXXXDAX06 in a practical application
STM32F103C8T6-Based Water Level Monitoring and Communication System with SIM900A and LoRa Connectivity
This circuit features a microcontroller (STM32F103C8T6) interfaced with a SIM900A GSM module, an HC-SR04 ultrasonic sensor, a water level sensor, and a LoRa Ra-02 SX1278 module for long-range communication. The STM32F103C8T6 is configured to communicate with the GSM module and LoRa module via serial connections, and it reads data from the ultrasonic and water level sensors. An FTDI Programmer is connected for programming and serial communication with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The PIC24FXXXDAX06 microcontroller offers the following key technical features:

Parameter Value
CPU Architecture 16-bit (PIC24)
Operating Voltage Range 2.0V to 3.6V
Maximum Clock Speed 32 MHz
Program Memory (Flash) Up to 64 KB
Data Memory (RAM) Up to 8 KB
Peripherals UART, SPI, I2C, ADC (10-bit), Timers, PWM
Low Power Modes Sleep, Idle, Doze
Package Options 28-pin, 44-pin, and 64-pin packages
Temperature Range -40°C to +85°C (industrial grade)

Pin Configuration and Descriptions

Below is an example pin configuration for the 28-pin variant of the PIC24FXXXDAX06:

Pin Number Pin Name Function Description
1 VDD Power Supply Positive power supply (2.0V to 3.6V)
2 VSS Ground Ground connection
3 RA0/AN0 Analog Input/General Purpose I/O Analog input channel 0 or GPIO
4 RA1/AN1 Analog Input/General Purpose I/O Analog input channel 1 or GPIO
5 RB0/INT0 External Interrupt/General Purpose I/O External interrupt 0 or GPIO
6 RB1/INT1 External Interrupt/General Purpose I/O External interrupt 1 or GPIO
7 RC0/SCL1 I2C Clock Line/General Purpose I/O I2C clock line or GPIO
8 RC1/SDA1 I2C Data Line/General Purpose I/O I2C data line or GPIO
... ... ... ...
28 MCLR Master Clear (Reset) Active-low reset input

Refer to the datasheet for the complete pinout and alternate functions for other package variants.

Usage Instructions

Using the PIC24FXXXDAX06 in a Circuit

  1. Power Supply: Ensure the microcontroller is powered within the operating voltage range (2.0V to 3.6V). Use decoupling capacitors (e.g., 0.1 µF) close to the VDD and VSS pins to stabilize the power supply.
  2. Reset Pin (MCLR): Connect the MCLR pin to VDD through a pull-up resistor (typically 10 kΩ). Optionally, add a push-button for manual reset.
  3. Oscillator Configuration: Configure the clock source using an external crystal oscillator or the internal oscillator. For external crystals, connect the crystal to the OSC1 and OSC2 pins with appropriate capacitors.
  4. Programming: Use an ICSP (In-Circuit Serial Programming) tool, such as Microchip's PICkit, to program the microcontroller via the PGD and PGC pins.
  5. Peripheral Configuration: Initialize and configure peripherals (e.g., UART, SPI, ADC) in the firmware according to your application requirements.

Example: Interfacing with an Arduino UNO

The PIC24FXXXDAX06 can communicate with an Arduino UNO via UART. Below is an example Arduino sketch to send data to the PIC24 microcontroller:

// Arduino UNO UART Communication Example
// Sends "Hello, PIC24!" to the PIC24FXXXDAX06 via UART

void setup() {
  Serial.begin(9600); // Initialize UART at 9600 baud rate
}

void loop() {
  Serial.println("Hello, PIC24!"); // Send data to PIC24
  delay(1000); // Wait for 1 second
}

On the PIC24 side, configure the UART module to receive data at 9600 baud. Refer to the PIC24 family reference manual for UART initialization details.

Best Practices

  • Use proper decoupling capacitors to minimize noise and ensure stable operation.
  • Avoid leaving unused pins floating; configure them as outputs or connect them to ground.
  • Use appropriate pull-up or pull-down resistors for input pins as needed.
  • Follow ESD precautions when handling the microcontroller.

Troubleshooting and FAQs

Common Issues

  1. Microcontroller Not Responding

    • Cause: Incorrect power supply or missing decoupling capacitors.
    • Solution: Verify the power supply voltage and ensure proper decoupling capacitors are in place.
  2. Programming Failure

    • Cause: Incorrect ICSP connections or incompatible programmer.
    • Solution: Double-check the ICSP connections and ensure the programmer supports the PIC24FXXXDAX06.
  3. Peripheral Not Working

    • Cause: Incorrect initialization or configuration in firmware.
    • Solution: Review the peripheral initialization code and ensure the correct pins are used.
  4. Communication Issues with Arduino

    • Cause: Mismatched baud rates or incorrect wiring.
    • Solution: Verify that the baud rates match and check the TX/RX connections.

FAQs

Q: Can I use the internal oscillator instead of an external crystal?
A: Yes, the PIC24FXXXDAX06 includes an internal oscillator that can be used for many applications. However, for precise timing, an external crystal is recommended.

Q: How do I reduce power consumption?
A: Use the low-power modes (Sleep, Idle, Doze) and disable unused peripherals to minimize power consumption.

Q: What is the maximum clock speed of the PIC24FXXXDAX06?
A: The maximum clock speed is 32 MHz when using an external oscillator.

For additional details, refer to the official datasheet and family reference manual provided by Microchip.
