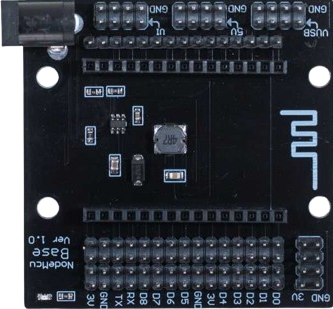

The NodeMCU8266 Lolin Baseboard, manufactured by ESP, is a development board based on the ESP8266 Wi-Fi module. It is designed for IoT (Internet of Things) applications, offering built-in Wi-Fi connectivity and a user-friendly programming environment. The board is compatible with the Arduino IDE, making it accessible for both beginners and experienced developers.
Common applications of the NodeMCU8266 Lolin Baseboard include:
Home automation systems
Wireless sensor networks
IoT prototyping and development
Smart devices and appliances
Remote monitoring and control systems
Explore Projects Built with nodemcu8266 lolin basboard
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed for a 4-wheeled WiFi-controlled car with a basket, which uses an ESP8266 NodeMCU microcontroller for logic control. It features an IR sensor for basket full detection, a GPS module for location tracking, and a GSM module (Sim800l) for sending SMS notifications. The L298N motor driver controls four DC gearmotors for movement, and the system is powered by a Li-ion battery with a 7805 voltage regulator providing stable power to the GSM module.
This circuit features an ESP8266 NodeMCU microcontroller connected to a 0.96" OLED display and an RYLR896 LoRa module. The ESP8266 communicates with the OLED via I2C protocol and interfaces with the LoRa module using UART, enabling wireless data transmission and display capabilities.
This circuit features an ESP8266 NodeMCU microcontroller connected to a ULN2003A breakout board to drive a 28BYJ-48 stepper motor. The ESP8266 also interfaces with a DHT11 temperature and humidity sensor and an LDR (light-dependent resistor) module for environmental sensing. Power is supplied by a 5V DC source, which is distributed to the motor driver, sensors, and the microcontroller.
This circuit integrates an ESP8266 NodeMCU microcontroller with a SIM800L GSM module, a GPS NEO 6M module, and a 16x2 I2C LCD display for communication and location tracking. It also includes a pushbutton for user input, a piezo buzzer for audio alerts, and is powered by a 2x 18650 battery pack through an LM2596 step-down module.
The NodeMCU8266 Lolin Baseboard is equipped with the following technical features:
Key Technical Details
Parameter
Specification
Microcontroller
ESP8266 (ESP-12E module)
Operating Voltage
3.3V
Input Voltage (VIN)
4.5V - 10V
Digital I/O Pins
11
Analog Input Pins
1 (10-bit ADC)
Flash Memory
4MB
Clock Speed
80 MHz (can be overclocked to 160 MHz)
Wi-Fi Standard
802.11 b/g/n
USB Interface
Micro-USB
Dimensions
58mm x 31mm
Pin Configuration and Descriptions
The NodeMCU8266 Lolin Baseboard features a total of 30 pins. Below is the pinout description:
Pin Name
Function
Description
VIN
Power Input
External power input (4.5V - 10V).
3V3
Power Output
Provides 3.3V output for external components.
GND
Ground
Common ground for the circuit.
D0-D8
Digital I/O
General-purpose digital input/output pins.
A0
Analog Input
Reads analog signals (0-3.3V, 10-bit ADC).
RX
UART Receive
Serial data receive pin.
TX
UART Transmit
Serial data transmit pin.
RST
Reset
Resets the microcontroller.
EN
Enable
Enables or disables the chip.
SDA
I2C Data
Data line for I2C communication.
SCL
I2C Clock
Clock line for I2C communication.
Usage Instructions
How to Use the NodeMCU8266 Lolin Baseboard in a Circuit
Powering the Board:
Use a Micro-USB cable to connect the board to your computer or a USB power source.
Alternatively, supply power through the VIN pin (4.5V - 10V).
Programming the Board:
Install the Arduino IDE and add the ESP8266 board package via the Board Manager.
Select "NodeMCU 1.0 (ESP-12E Module)" as the board in the Arduino IDE.
Connect the board to your computer via USB and select the appropriate COM port.
Connecting Components:
Use the digital I/O pins (D0-D8) for connecting LEDs, sensors, or other peripherals.
Use the A0 pin for reading analog signals (ensure the input voltage does not exceed 3.3V).
Uploading Code:
Write your code in the Arduino IDE and click the "Upload" button to flash it to the board.
Example Code: Blinking an LED
The following example demonstrates how to blink an LED connected to pin D1:
// Define the pin where the LED is connected
const int ledPin = D1;
void setup() {
pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Important Considerations and Best Practices
Voltage Levels: Ensure that all connected components operate at 3.3V logic levels to avoid damaging the board.
Wi-Fi Configuration: Use the WiFi library in the Arduino IDE to configure and connect to Wi-Fi networks.
Power Supply: Avoid exceeding the input voltage range (4.5V - 10V) to prevent damage to the board.
GPIO Usage: Some pins (e.g., D3, D4) are connected to the internal flash memory and may cause issues if used improperly.
Troubleshooting and FAQs
Common Issues and Solutions
The board is not detected by the computer:
Ensure the correct USB drivers are installed for the CP2102 USB-to-UART bridge chip.
Try using a different USB cable or port.
Upload errors in the Arduino IDE:
Check that the correct board and COM port are selected in the Arduino IDE.
Press and hold the "Flash" button on the board while uploading the code.
Wi-Fi connection issues:
Verify the SSID and password in your code.
Ensure the Wi-Fi network is within range and supports 2.4 GHz (the ESP8266 does not support 5 GHz).
The board resets unexpectedly:
Check the power supply for stability.
Avoid drawing excessive current from the 3V3 pin.
FAQs
Q: Can I use the NodeMCU8266 Lolin Baseboard with a 5V sensor?
A: Yes, but you will need a voltage divider or level shifter to step down the sensor's output to 3.3V.
Q: How do I restore the board to factory settings?
A: Flash a blank firmware or use the "Erase Flash" option in the ESP8266 Flasher tool.
Q: Can I use the board without Wi-Fi?
A: Yes, the board can function as a standalone microcontroller without using Wi-Fi features.
This concludes the documentation for the NodeMCU8266 Lolin Baseboard.
