Introduction

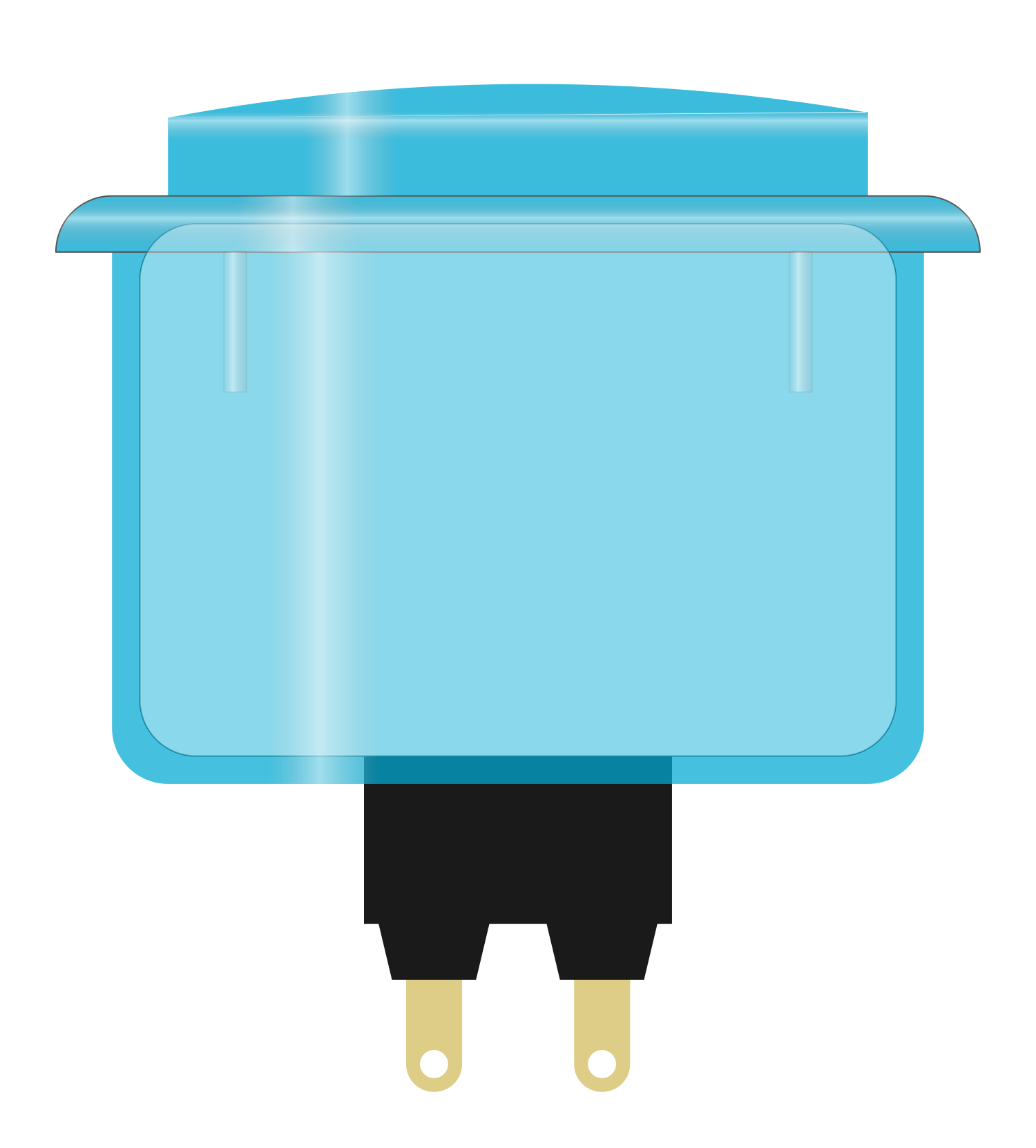

The Arcade Button (Blue) is a push-button switch designed for user interaction in arcade machines, gaming consoles, and DIY electronics projects. It features a durable plastic housing, a tactile response for satisfying feedback, and a vibrant blue color for easy identification. This component is widely used in applications requiring reliable and repetitive button presses, such as gaming controls, interactive kiosks, and custom control panels.

Explore Projects Built with Arcade Button (blue)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Controlled RGB LED Strip with Interactive Button
Image of Simon Circuit: A project utilizing Arcade Button (blue) in a practical application
This circuit features an Arduino UNO connected to a WS2812 RGB LED strip, controlled via digital pin D8. An arcade button is interfaced with the Arduino through a resistor and digital pin D3, likely for user input to control the LED strip. Power is supplied through a 2.1mm DC barrel jack, with an electrolytic capacitor for voltage smoothing, and the ground connections are shared among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Interactive Game with RGB LEDs, LCD Display, and DFPlayer Audio
Image of Game: A project utilizing Arcade Button (blue) in a practical application
This circuit is a game controller that uses an Arduino Mega 2560 to manage inputs from multiple arcade buttons, control RGB LEDs, display messages on an LCD, and play audio through a DFPlayer module. The system announces the winner based on button presses, lights up the corresponding RGB LED, and displays the winner's name on the LCD.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Based GPS Tracker with GSM Module and Panic Buttons
Image of gps tracking system : A project utilizing Arcade Button (blue) in a practical application
This circuit features an Arduino Nano interfaced with a GPS NEO 6M module for location tracking and a SIM800L GSM module for cellular communication. The Arduino is programmed to send an SMS with GPS coordinates when a yellow arcade button is pressed, and it can also initiate a call. The circuit is powered by a Polymer Lithium Ion Battery, and pull-up resistors are connected to the arcade buttons to ensure stable input signals to the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Based GPS Tracker with GSM Module and Panic Buttons
Image of gps: A project utilizing Arcade Button (blue) in a practical application
This circuit is designed for location tracking and emergency communication. It uses an Arduino Nano interfaced with a GPS NEO 6M module for location tracking and a SIM800L GSM module for sending SMS alerts and making calls. When an arcade button is pressed, the system retrieves the current GPS coordinates and sends an SMS with a Google Maps link to a predefined phone number, and then makes a call to another number.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arcade Button (blue)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Simon Circuit: A project utilizing Arcade Button (blue) in a practical application
Arduino UNO Controlled RGB LED Strip with Interactive Button
This circuit features an Arduino UNO connected to a WS2812 RGB LED strip, controlled via digital pin D8. An arcade button is interfaced with the Arduino through a resistor and digital pin D3, likely for user input to control the LED strip. Power is supplied through a 2.1mm DC barrel jack, with an electrolytic capacitor for voltage smoothing, and the ground connections are shared among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Game: A project utilizing Arcade Button (blue) in a practical application
Arduino Mega 2560-Based Interactive Game with RGB LEDs, LCD Display, and DFPlayer Audio
This circuit is a game controller that uses an Arduino Mega 2560 to manage inputs from multiple arcade buttons, control RGB LEDs, display messages on an LCD, and play audio through a DFPlayer module. The system announces the winner based on button presses, lights up the corresponding RGB LED, and displays the winner's name on the LCD.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps tracking system : A project utilizing Arcade Button (blue) in a practical application
Arduino Nano Based GPS Tracker with GSM Module and Panic Buttons
This circuit features an Arduino Nano interfaced with a GPS NEO 6M module for location tracking and a SIM800L GSM module for cellular communication. The Arduino is programmed to send an SMS with GPS coordinates when a yellow arcade button is pressed, and it can also initiate a call. The circuit is powered by a Polymer Lithium Ion Battery, and pull-up resistors are connected to the arcade buttons to ensure stable input signals to the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps: A project utilizing Arcade Button (blue) in a practical application
Arduino Nano Based GPS Tracker with GSM Module and Panic Buttons
This circuit is designed for location tracking and emergency communication. It uses an Arduino Nano interfaced with a GPS NEO 6M module for location tracking and a SIM800L GSM module for sending SMS alerts and making calls. When an arcade button is pressed, the system retrieves the current GPS coordinates and sends an SMS with a Google Maps link to a predefined phone number, and then makes a call to another number.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Arcade gaming machines
  • DIY gaming controllers
  • Interactive kiosks and vending machines
  • Custom control panels for robotics or electronics projects

Technical Specifications

The Arcade Button (Blue) is a simple, robust component with the following specifications:

Parameter Value
Button Type Momentary push-button
Housing Material Durable plastic
Color Blue
Operating Voltage 3.3V to 12V (depending on circuit)
Maximum Current 1A
Contact Resistance ≤ 50 mΩ
Actuation Force ~150g
Mounting Hole Diameter 28mm
Terminal Type Quick-connect spade terminals

Pin Configuration and Descriptions

The Arcade Button (Blue) typically has two terminals for connection:

Pin Description
NO Normally Open terminal - connects when pressed
COM Common terminal - shared ground or signal line

Usage Instructions

How to Use the Arcade Button in a Circuit

  1. Mounting the Button: Drill a 28mm hole in your panel or enclosure. Insert the button and secure it using the included mounting nut.
  2. Wiring the Button:
    • Connect the COM terminal to the ground or signal line of your circuit.
    • Connect the NO terminal to the input pin of your microcontroller or circuit.
  3. Power Requirements: Ensure the button is used within its rated voltage and current limits (3.3V to 12V, max 1A).
  4. Debouncing: Use a hardware or software debounce mechanism to avoid false triggers caused by mechanical bouncing.

Example: Connecting to an Arduino UNO

The Arcade Button (Blue) can be easily interfaced with an Arduino UNO for simple input detection. Below is an example circuit and code:

Circuit:

  • Connect the COM terminal of the button to the Arduino's GND pin.
  • Connect the NO terminal of the button to Digital Pin 2 on the Arduino.
  • Use a 10kΩ pull-down resistor between Digital Pin 2 and GND to ensure a stable low state when the button is not pressed.

Code:

// Arcade Button Example with Arduino UNO
// This code reads the state of the button and turns on an LED when pressed.

const int buttonPin = 2;  // Pin connected to the button's NO terminal
const int ledPin = 13;    // Pin connected to the onboard LED

void setup() {
  pinMode(buttonPin, INPUT);  // Set button pin as input
  pinMode(ledPin, OUTPUT);   // Set LED pin as output
  digitalWrite(ledPin, LOW); // Ensure LED is off initially
}

void loop() {
  int buttonState = digitalRead(buttonPin); // Read the button state

  if (buttonState == HIGH) {
    // If button is pressed, turn on the LED
    digitalWrite(ledPin, HIGH);
  } else {
    // If button is not pressed, turn off the LED
    digitalWrite(ledPin, LOW);
  }
}

Best Practices:

  • Use quick-connect spade terminals for secure and reliable connections.
  • Avoid exceeding the maximum current rating (1A) to prevent damage.
  • If used in high-frequency applications, implement proper debouncing techniques.

Troubleshooting and FAQs

Common Issues and Solutions:

  1. Button Not Responding:

    • Ensure the button is properly wired to the circuit.
    • Check for loose or disconnected terminals.
    • Verify that the microcontroller pin is configured correctly in the code.
  2. False Triggers or Multiple Presses Detected:

    • Implement a debounce mechanism in hardware (capacitor) or software (delay in code).
    • Check for noise in the circuit and use proper grounding.
  3. Button Feels Stiff or Unresponsive:

    • Inspect the button for physical damage or debris.
    • Ensure the button is securely mounted and not overtightened.
  4. LED Not Turning On in Arduino Example:

    • Verify the wiring connections between the button and Arduino.
    • Check the onboard LED functionality by running a simple blink test.

FAQs:

Q: Can I use this button with a Raspberry Pi?
A: Yes, the Arcade Button (Blue) can be used with a Raspberry Pi. Connect it to a GPIO pin and use a pull-down resistor to ensure stable input readings.

Q: Is the button waterproof?
A: No, the Arcade Button (Blue) is not waterproof. Avoid using it in environments with high moisture or exposure to liquids.

Q: Can I use this button for AC circuits?
A: This button is designed for low-voltage DC circuits. Using it in AC circuits is not recommended and may pose safety risks.

Q: How many presses can this button handle?
A: The button is designed for high durability and can handle tens of thousands of presses under normal operating conditions.

By following this documentation, you can effectively integrate the Arcade Button (Blue) into your projects and troubleshoot any issues that arise.
