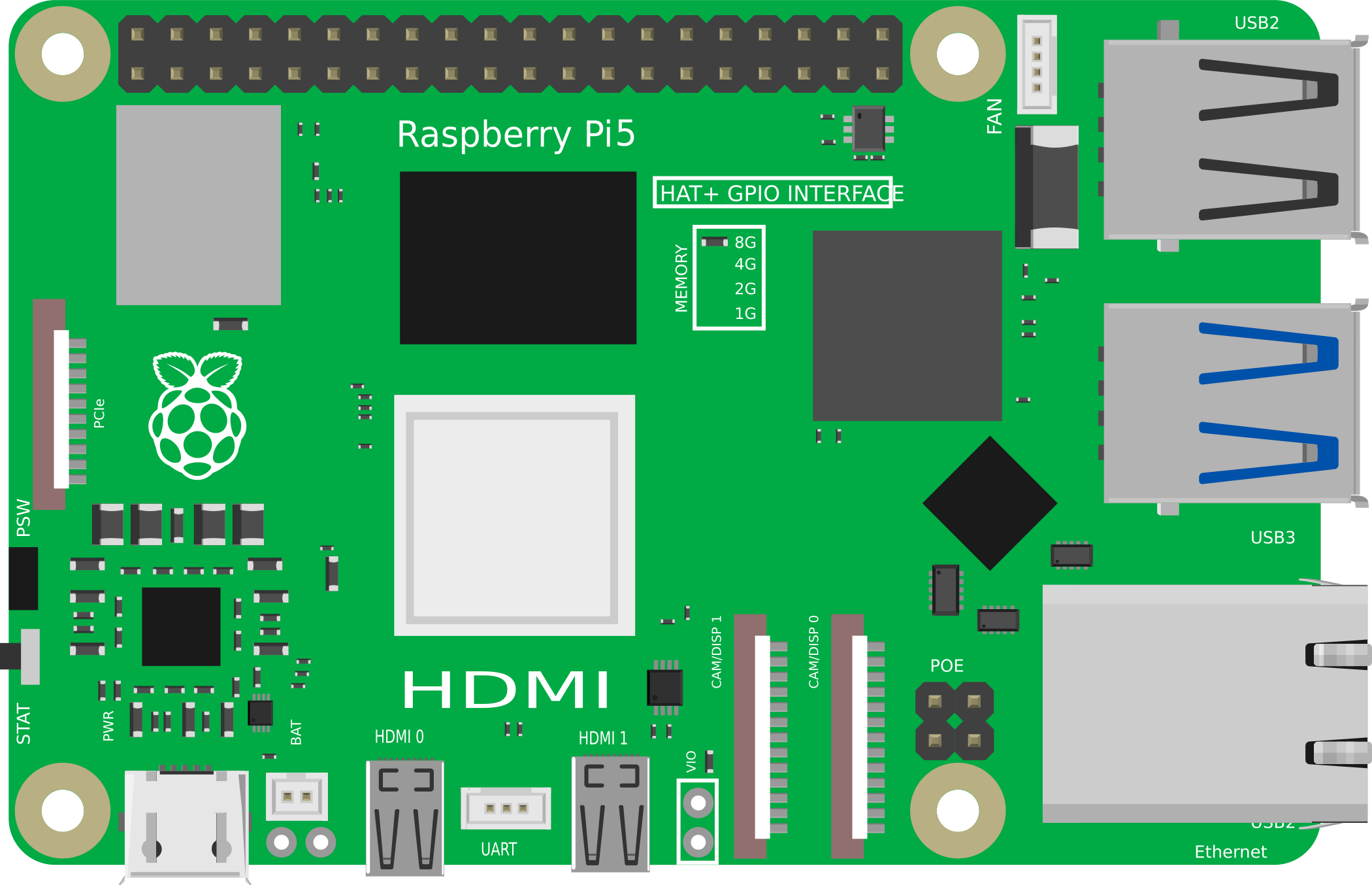

The Raspberry Pi 5 is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, multiple USB ports, HDMI output, and GPIO pins, making it a versatile tool for programming, robotics, IoT, and other electronic projects. Its small form factor and robust capabilities make it an excellent choice for both beginners and experienced developers.

• Programming and Education: Ideal for learning programming languages like Python, C++, and Java.
• IoT Projects: Used as a hub for smart home devices and IoT systems.
• Robotics: Controls motors, sensors, and other components in robotics projects.
• Media Centers: Functions as a media player with support for 4K video output.
• Prototyping: Serves as a platform for testing and developing electronic circuits.

The Raspberry Pi 5 offers a range of features and capabilities that make it suitable for various applications. Below are its key technical specifications:

The Raspberry Pi 5 features a 40-pin GPIO header for interfacing with external components. Below is the pinout configuration:

1. Powering the Raspberry Pi:

   • Use a 5V/3A USB-C power adapter to power the Raspberry Pi 5.
   • Ensure the power supply is stable to avoid performance issues.

2. Connecting Peripherals:

   • Attach a monitor via the HDMI port for display output.
   • Connect a keyboard and mouse to the USB ports for input.
   • Insert a microSD card with the Raspberry Pi OS installed into the microSD slot.

3. Using GPIO Pins:

   • Use jumper wires to connect the GPIO pins to external components like LEDs, sensors, or motors.
   • Be cautious of voltage levels to avoid damaging the board or components.

4. Programming the GPIO Pins:

   • Install the RPi.GPIO library in Python to control the GPIO pins.
   • Example code to blink an LED connected to GPIO17:

import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM)

GPIO.setup(17, GPIO.OUT)

try: while True: GPIO.output(17, GPIO.HIGH) # Turn on the LED time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn off the LED time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings when the program is interrupted GPIO.cleanup()

• Always shut down the Raspberry Pi properly before disconnecting power to avoid corrupting the microSD card.
• Use a heatsink or fan for cooling during intensive tasks to prevent overheating.
• Avoid connecting GPIO pins directly to high-voltage sources to prevent damage.

1. The Raspberry Pi does not boot:

   • Ensure the microSD card is properly inserted and contains a valid OS image.
   • Check the power supply for sufficient voltage and current.

2. No display output:

   • Verify the HDMI cable is securely connected to the monitor and Raspberry Pi.
   • Ensure the monitor is set to the correct input source.

3. GPIO pins not working:

   • Confirm the correct GPIO pin numbering (BCM vs. BOARD) in your code.
   • Check for loose connections or damaged components.

4. Overheating:

   • Use a heatsink or fan to improve cooling.
   • Avoid running resource-intensive tasks for extended periods without proper cooling.

• Can I use the Raspberry Pi 5 with Arduino? Yes, you can connect the Raspberry Pi 5 to an Arduino via UART, I2C, or SPI for advanced projects.

• What operating systems are supported? The Raspberry Pi 5 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

• How do I update the Raspberry Pi OS? Run the following commands in the terminal:

  sudo apt update
  sudo apt full-upgrade


• Can I power the Raspberry Pi 5 via GPIO pins? Yes, you can power it using the 5V and GND pins, but ensure the power source is stable and regulated.

This documentation provides a comprehensive guide to using the Raspberry Pi 5 effectively. For more details, refer to the official Raspberry Pi website.
