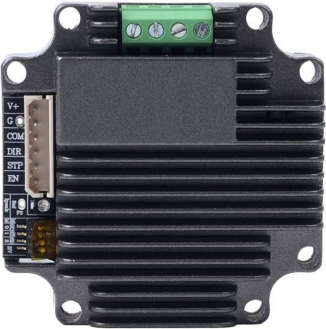

Image of StepperDriver
Cirkit Designer LogoDesign with StepperDriver in Cirkit Designer

Introduction

The StepperOnline ISDT23-45 Stepper Driver is an advanced electronic device designed to control the operation of stepper motors. It works by sending precise electrical pulses to the motor's coils, enabling accurate positioning, speed control, and smooth motion. This driver is ideal for applications requiring high precision and reliability, such as CNC machines, 3D printers, robotics, and automated systems.

Explore Projects Built with StepperDriver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Teensy-Controlled Stepper Motor and Servo Actuation System
Image of Prototype Robotic Arm: A project utilizing StepperDriver in a practical application
This circuit controls a bipolar stepper motor using an A4988 Stepper Motor Driver, which is interfaced with a Teensy 4.1 microcontroller. The Teensy sends step and direction signals to the driver, while the driver's RESET and SLEEP pins are tied together, likely for simplified control. Additionally, the circuit includes an Adafruit PCA9685 PWM Servo Breakout board, which is connected to a servo motor and communicates with the Teensy via I2C, and both the driver and the breakout board are powered by separate power supplies with decoupling provided by an electrolytic capacitor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Bipolar Stepper Motor with Keypad Interface
Image of Attenuator with LCD: A project utilizing StepperDriver in a practical application
This circuit controls a bipolar stepper motor using an Arduino UNO and an A4988/DRV8825 stepper motor driver. The Arduino provides control signals to the driver, which in turn powers and controls the stepper motor, allowing for precise movement control.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Bipolar Stepper Motor with A4988 Driver
Image of steppermotor test: A project utilizing StepperDriver in a practical application
This circuit controls a bipolar stepper motor using an A4988 stepper motor driver, which is interfaced with an Arduino UNO microcontroller. The Arduino provides control signals for the direction (DIR) and stepping (STEP) of the motor, while a potentiometer connected to an analog input (A0) may be used for speed or position feedback. The motor driver is powered by a 12V power supply, and the RESET and SLEEP pins of the driver are connected together, likely to enable the motor driver to operate immediately upon power-up.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Stepper and DC Motor with Relay Switching
Image of Conveyor Belt & Capping Motor: A project utilizing StepperDriver in a practical application
This circuit controls a Nema 17 stepper motor using a DRV8825 driver module, with an Arduino UNO microcontroller dictating the step and direction. Additionally, the circuit can switch a DC motor on and off using a relay module controlled by the Arduino. The power supply provides the necessary voltage for the relay and the motor driver, which in turn powers the stepper motor, while the Arduino's firmware defines the motor's stepping behavior and the relay's switching to control the DC motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with StepperDriver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Prototype Robotic Arm: A project utilizing StepperDriver in a practical application
Teensy-Controlled Stepper Motor and Servo Actuation System
This circuit controls a bipolar stepper motor using an A4988 Stepper Motor Driver, which is interfaced with a Teensy 4.1 microcontroller. The Teensy sends step and direction signals to the driver, while the driver's RESET and SLEEP pins are tied together, likely for simplified control. Additionally, the circuit includes an Adafruit PCA9685 PWM Servo Breakout board, which is connected to a servo motor and communicates with the Teensy via I2C, and both the driver and the breakout board are powered by separate power supplies with decoupling provided by an electrolytic capacitor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Attenuator with LCD: A project utilizing StepperDriver in a practical application
Arduino UNO Controlled Bipolar Stepper Motor with Keypad Interface
This circuit controls a bipolar stepper motor using an Arduino UNO and an A4988/DRV8825 stepper motor driver. The Arduino provides control signals to the driver, which in turn powers and controls the stepper motor, allowing for precise movement control.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of steppermotor test: A project utilizing StepperDriver in a practical application
Arduino-Controlled Bipolar Stepper Motor with A4988 Driver
This circuit controls a bipolar stepper motor using an A4988 stepper motor driver, which is interfaced with an Arduino UNO microcontroller. The Arduino provides control signals for the direction (DIR) and stepping (STEP) of the motor, while a potentiometer connected to an analog input (A0) may be used for speed or position feedback. The motor driver is powered by a 12V power supply, and the RESET and SLEEP pins of the driver are connected together, likely to enable the motor driver to operate immediately upon power-up.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Conveyor Belt & Capping Motor: A project utilizing StepperDriver in a practical application
Arduino-Controlled Stepper and DC Motor with Relay Switching
This circuit controls a Nema 17 stepper motor using a DRV8825 driver module, with an Arduino UNO microcontroller dictating the step and direction. Additionally, the circuit can switch a DC motor on and off using a relay module controlled by the Arduino. The power supply provides the necessary voltage for the relay and the motor driver, which in turn powers the stepper motor, while the Arduino's firmware defines the motor's stepping behavior and the relay's switching to control the DC motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • CNC machines for precise cutting and milling
  • 3D printers for accurate layer deposition
  • Robotics for controlled movement and positioning
  • Conveyor systems in industrial automation
  • Camera sliders and gimbals for smooth motion control

Technical Specifications

The ISDT23-45 Stepper Driver is designed to work with a wide range of stepper motors, offering flexibility and performance. Below are the key technical details:

General Specifications

Parameter Value
Manufacturer StepperOnline
Part ID ISDT23-45
Input Voltage Range 20V - 50V DC
Output Current Range 1.0A - 4.5A
Microstepping Options Full step to 1/256 step
Control Signal Voltage 3.3V - 5V
Operating Temperature -10°C to +50°C
Dimensions 118mm x 75mm x 34mm

Pin Configuration and Descriptions

The ISDT23-45 Stepper Driver features a set of input and output pins for motor control and power connections. Below is the pin configuration:

Power and Motor Connections

Pin Name Description
V+ Positive DC power input (20V - 50V)
GND Ground connection for power input
A+ Motor coil A positive terminal
A- Motor coil A negative terminal
B+ Motor coil B positive terminal
B- Motor coil B negative terminal

Control Signal Connections

Pin Name Description
PUL+ Pulse signal input (step control)
PUL- Pulse signal ground
DIR+ Direction control signal input
DIR- Direction control signal ground
ENA+ Enable signal input (optional)
ENA- Enable signal ground (optional)

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect a DC power supply (20V - 50V) to the V+ and GND pins. Ensure the power supply can provide sufficient current for the motor.
  2. Motor Connection: Connect the stepper motor's coils to the A+, A-, B+, and B- pins. Refer to the motor's datasheet for coil identification.
  3. Control Signals: Connect the PUL+, DIR+, and ENA+ pins to a microcontroller or control board (e.g., Arduino UNO). Connect the corresponding ground pins (PUL-, DIR-, ENA-) to the microcontroller's ground.
  4. Microstepping Configuration: Set the microstepping mode using the DIP switches on the driver. Refer to the user manual for specific switch settings.
  5. Testing: Power on the system and send pulse signals to the PUL+ pin to control the motor's steps. Use the DIR+ pin to change the motor's direction.

Important Considerations and Best Practices

  • Current Setting: Adjust the output current using the DIP switches to match the motor's rated current. Overdriving the motor can cause overheating or damage.
  • Signal Voltage: Ensure the control signals are within the 3.3V - 5V range to avoid damage to the driver.
  • Cooling: Provide adequate ventilation or a heatsink to prevent the driver from overheating during operation.
  • Wiring: Double-check all connections before powering on the system to avoid short circuits or incorrect wiring.

Example Code for Arduino UNO

Below is an example code snippet to control a stepper motor using the ISDT23-45 Stepper Driver and an Arduino UNO:

// Define control pins
const int stepPin = 3;  // Connect to PUL+ on the driver
const int dirPin = 4;   // Connect to DIR+ on the driver

void setup() {
  pinMode(stepPin, OUTPUT); // Set step pin as output
  pinMode(dirPin, OUTPUT);  // Set direction pin as output

  digitalWrite(dirPin, HIGH); // Set initial direction (HIGH or LOW)
}

void loop() {
  // Generate step pulses
  for (int i = 0; i < 200; i++) { // 200 steps for one revolution (example)
    digitalWrite(stepPin, HIGH);  // Send HIGH pulse
    delayMicroseconds(500);       // Pulse duration (adjust for speed)
    digitalWrite(stepPin, LOW);   // Send LOW pulse
    delayMicroseconds(500);       // Delay between pulses
  }

  delay(1000); // Wait 1 second before changing direction

  // Change direction
  digitalWrite(dirPin, !digitalRead(dirPin)); // Toggle direction
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Not Moving:

    • Check the power supply voltage and current rating.
    • Verify the motor connections to the driver.
    • Ensure the control signals are being sent correctly.
  2. Motor Vibrates but Does Not Rotate:

    • Check the wiring of the motor coils. Incorrect wiring can cause this issue.
    • Verify the microstepping settings on the DIP switches.
  3. Driver Overheating:

    • Ensure proper ventilation or use a heatsink.
    • Reduce the output current setting if it exceeds the motor's rated current.
  4. Inconsistent Motor Movement:

    • Check for noise or interference in the control signal lines.
    • Use shielded cables for long signal connections.

FAQs

Q: Can I use a 12V power supply with the ISDT23-45?
A: No, the minimum input voltage is 20V. Using a lower voltage may damage the driver or result in improper operation.

Q: How do I determine the correct current setting for my motor?
A: Refer to your motor's datasheet for the rated current and set the DIP switches accordingly.

Q: Can I control multiple stepper motors with one ISDT23-45 driver?
A: No, each driver is designed to control a single stepper motor. Use separate drivers for multiple motors.

Q: Is the driver compatible with 1.8° and 0.9° stepper motors?
A: Yes, the driver supports both types of stepper motors. Adjust the microstepping settings as needed.
