How to Use 16x2 I2C LCD: Examples, Pinouts, and Specs

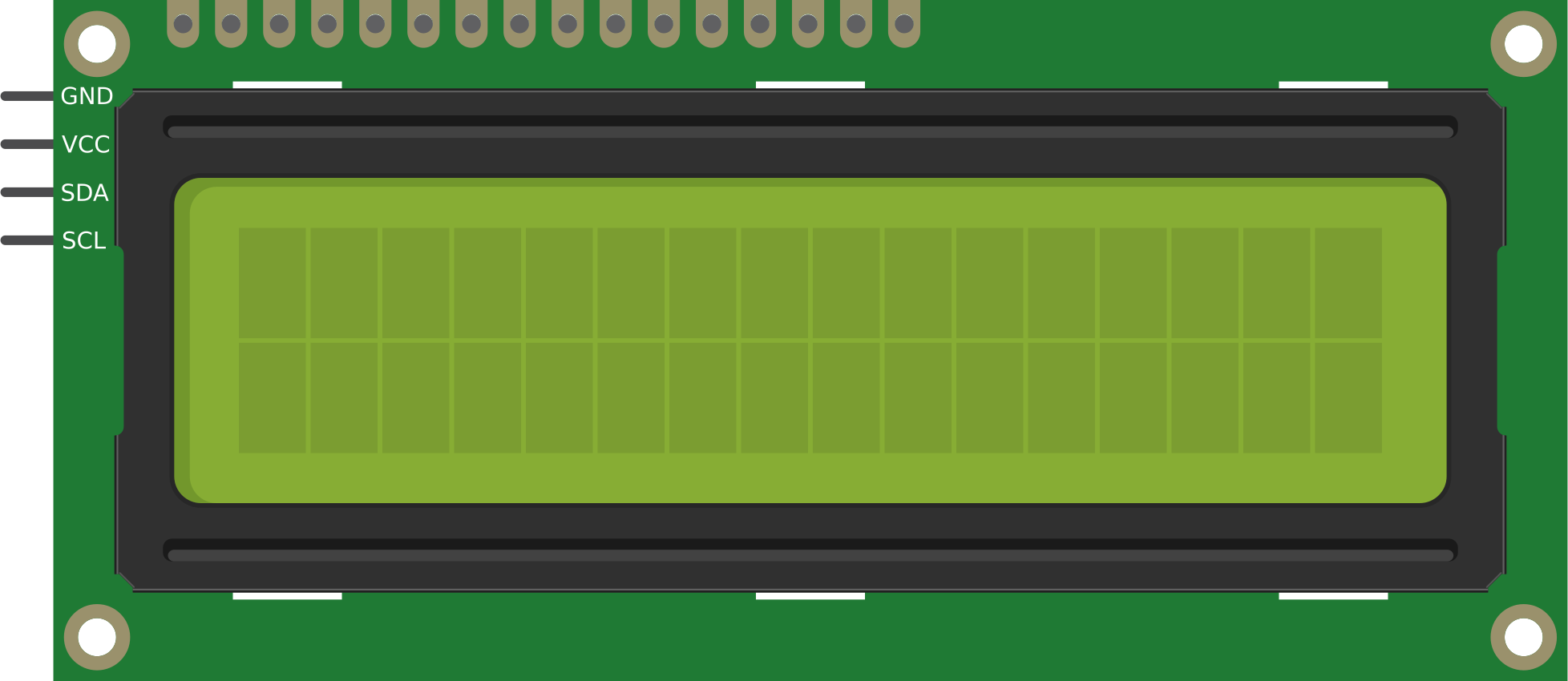

Image of 16x2 I2C LCD
Cirkit Designer LogoDesign with 16x2 I2C LCD in Cirkit Designer

Introduction

The 16x2 I2C LCD is a liquid crystal display capable of showing 16 characters per line across 2 lines. It features an I2C (Inter-Integrated Circuit) interface, which significantly reduces the number of pins required for connection compared to traditional parallel LCDs. This makes it an ideal choice for projects where pin availability is limited or simplicity is desired.

Explore Projects Built with 16x2 I2C LCD

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing 16x2 I2C LCD in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Leonardo Controlled LCD Display with I2C Interface
Image of ert: A project utilizing 16x2 I2C LCD in a practical application
This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 I2C LCD Display Interface
Image of project 3: A project utilizing 16x2 I2C LCD in a practical application
This circuit consists of an Arduino Mega 2560 microcontroller connected to a 16x2 I2C LCD screen. The LCD screen is powered by the Arduino's 5V and GND pins, and communicates with the Arduino via the I2C protocol using the SCL and SDA pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
A-Star 32U4 Mini and I2C LCD Screen Battery-Powered Display
Image of lcd disolay: A project utilizing 16x2 I2C LCD in a practical application
This circuit features an A-Star 32U4 Mini microcontroller connected to a 16x2 I2C LCD screen. The microcontroller provides power and ground to the LCD, and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 16x2 I2C LCD

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of J8 +j22 lcd closeup: A project utilizing 16x2 I2C LCD in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ert: A project utilizing 16x2 I2C LCD in a practical application
Arduino Leonardo Controlled LCD Display with I2C Interface
This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of project 3: A project utilizing 16x2 I2C LCD in a practical application
Arduino Mega 2560 I2C LCD Display Interface
This circuit consists of an Arduino Mega 2560 microcontroller connected to a 16x2 I2C LCD screen. The LCD screen is powered by the Arduino's 5V and GND pins, and communicates with the Arduino via the I2C protocol using the SCL and SDA pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lcd disolay: A project utilizing 16x2 I2C LCD in a practical application
A-Star 32U4 Mini and I2C LCD Screen Battery-Powered Display
This circuit features an A-Star 32U4 Mini microcontroller connected to a 16x2 I2C LCD screen. The microcontroller provides power and ground to the LCD, and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Displaying sensor readings in real-time
  • User interfaces for embedded systems
  • Menu systems for microcontroller-based projects
  • Educational and prototyping purposes
  • Home automation displays

Technical Specifications

Key Technical Details

  • Display Type: 16x2 character LCD
  • Interface: I2C (4 pins: VCC, GND, SDA, SCL)
  • Operating Voltage: 5V DC (some models support 3.3V)
  • Backlight: LED backlight with adjustable brightness
  • I2C Address: Typically 0x27 or 0x3F (configurable on some modules)
  • Character Size: 5x8 dot matrix per character
  • Operating Temperature: -20°C to 70°C
  • Dimensions: Approximately 80mm x 36mm x 12mm

Pin Configuration and Descriptions

The 16x2 I2C LCD has a 4-pin interface for easy connection to microcontrollers. Below is the pinout:

Pin Name Description Notes
VCC Power supply (5V or 3.3V) Connect to the microcontroller's power pin
GND Ground Connect to the microcontroller's ground pin
SDA Serial Data Line Connect to the microcontroller's SDA pin
SCL Serial Clock Line Connect to the microcontroller's SCL pin

Usage Instructions

How to Use the 16x2 I2C LCD in a Circuit

  1. Wiring the LCD:

    • Connect the VCC pin to the 5V (or 3.3V) power supply of your microcontroller.
    • Connect the GND pin to the ground of your microcontroller.
    • Connect the SDA pin to the SDA pin of your microcontroller (e.g., A4 on Arduino UNO).
    • Connect the SCL pin to the SCL pin of your microcontroller (e.g., A5 on Arduino UNO).
  2. Install Required Libraries:

    • For Arduino, install the LiquidCrystal_I2C library via the Library Manager in the Arduino IDE.
  3. Write and Upload Code:

    • Use the example code below to initialize and display text on the LCD.

Example Code for Arduino UNO

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>   // Include the LiquidCrystal_I2C library

// Initialize the LCD with I2C address 0x27 and dimensions 16x2
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set cursor to the first column, first row
  lcd.print("Hello, World!");    // Print text on the first row
  lcd.setCursor(0, 1);           // Set cursor to the first column, second row
  lcd.print("16x2 I2C LCD");     // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations and Best Practices

  • I2C Address: Ensure the correct I2C address is used in your code. If the LCD does not respond, use an I2C scanner sketch to determine the address.
  • Power Supply: Verify that the LCD is powered with the correct voltage (5V or 3.3V, depending on the module).
  • Contrast Adjustment: Some modules have a potentiometer to adjust the contrast. Turn it to ensure characters are visible.
  • Pull-Up Resistors: If your microcontroller does not have built-in pull-up resistors on the I2C lines, you may need to add external resistors (typically 4.7kΩ) between SDA/SCL and VCC.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display or Backlight:

    • Check the wiring and ensure the LCD is receiving power.
    • Verify the contrast adjustment using the potentiometer.
  2. Incorrect or No Text Displayed:

    • Confirm the I2C address in the code matches the module's address.
    • Use an I2C scanner sketch to detect the correct address.
  3. Flickering or Unstable Display:

    • Ensure proper connections and avoid loose wires.
    • Check for sufficient power supply to the LCD and microcontroller.
  4. Compilation Errors in Arduino IDE:

    • Ensure the LiquidCrystal_I2C library is installed correctly.
    • Use the latest version of the Arduino IDE and libraries.

FAQs

Q: How do I find the I2C address of my LCD?
A: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and the serial monitor will display the detected address.

Q: Can I use the 16x2 I2C LCD with a 3.3V microcontroller?
A: Yes, but ensure your LCD module supports 3.3V operation. If not, use a level shifter to convert 3.3V signals to 5V.

Q: How do I display custom characters on the LCD?
A: The LiquidCrystal_I2C library supports custom characters. Refer to the library documentation for examples on creating and displaying custom characters.

Q: Can I connect multiple I2C devices to the same microcontroller?
A: Yes, as long as each device has a unique I2C address. Use an I2C multiplexer if address conflicts occur.

By following this documentation, you can effectively integrate and troubleshoot the 16x2 I2C LCD in your projects.
