How to Use MT3608: Examples, Pinouts, and Specs

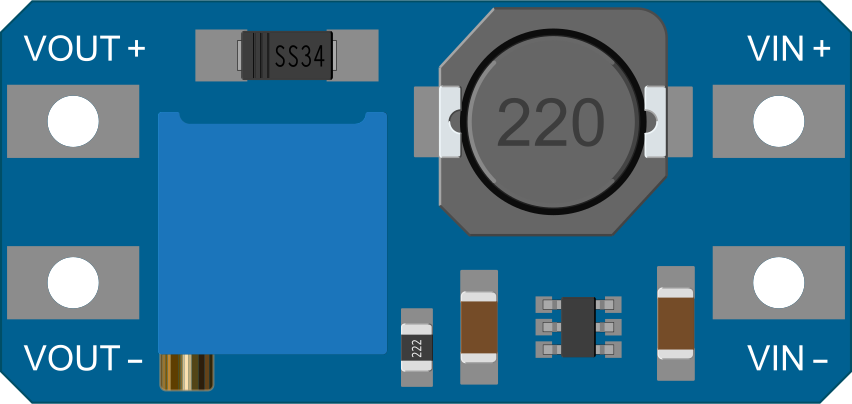

Image of MT3608
Cirkit Designer LogoDesign with MT3608 in Cirkit Designer

Introduction

The MT3608 is a high-efficiency step-up (boost) DC-DC converter designed to increase an input voltage to a higher output voltage. It is widely used in applications where a stable, higher voltage is required from a lower voltage source, such as in battery-powered devices. The MT3608 is compact, cost-effective, and highly efficient, making it a popular choice for portable electronics, LED drivers, and charging circuits.

Explore Projects Built with MT3608

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled Bluetooth Robotic Vehicle with MT3608 Boost Converters and L298N Motor Drivers
Image of Copy of Diagrama Elétrico - AutoBots (1): A project utilizing MT3608 in a practical application
This circuit is designed to control multiple DC motors and a servo motor using an ESP32 microcontroller, which is interfaced with Bluetooth for wireless control commands. The ESP32 outputs control signals to two L298N motor drivers, which in turn drive the DC motors. The MT3608 modules are used to step up the voltage from a 4 x AAA battery mount to power the motor drivers, while the servo motor is directly controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing MT3608 in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors
Image of projcememek: A project utilizing MT3608 in a practical application
This circuit features a 18650 Li-Ion battery connected to a TP4056 charging module, which in turn is connected to an MT3608 boost converter to step up the voltage. The output of the MT3608 powers an ESP32 microcontroller, a TCRT 5000 IR sensor, an HC-SR04 ultrasonic sensor, and an MG996R servo motor. The ESP32 is configured to control the servo motor via GPIO 27 and to receive input signals from the IR sensor and ultrasonic sensor through GPIO 14 and GPIO 13, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Traffic Light and DC Motors with MT3608 Boost Converters
Image of Diagrama Elétrico - AutoBots: A project utilizing MT3608 in a practical application
This circuit is designed to control a traffic light and multiple DC motors using an ESP32 microcontroller. The ESP32's GPIO pins are connected to the traffic light to control the green, yellow, and red LEDs, and to the L298N motor drivers for controlling the speed and direction of the DC motors. The MT3608 modules are used to step up the voltage from the AAA batteries to power the motor drivers, and the MG996R servo is controlled by the ESP32 for additional actuation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MT3608

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Copy of Diagrama Elétrico - AutoBots (1): A project utilizing MT3608 in a practical application
ESP32-Controlled Bluetooth Robotic Vehicle with MT3608 Boost Converters and L298N Motor Drivers
This circuit is designed to control multiple DC motors and a servo motor using an ESP32 microcontroller, which is interfaced with Bluetooth for wireless control commands. The ESP32 outputs control signals to two L298N motor drivers, which in turn drive the DC motors. The MT3608 modules are used to step up the voltage from a 4 x AAA battery mount to power the motor drivers, while the servo motor is directly controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of solar system router ups: A project utilizing MT3608 in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of projcememek: A project utilizing MT3608 in a practical application
ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors
This circuit features a 18650 Li-Ion battery connected to a TP4056 charging module, which in turn is connected to an MT3608 boost converter to step up the voltage. The output of the MT3608 powers an ESP32 microcontroller, a TCRT 5000 IR sensor, an HC-SR04 ultrasonic sensor, and an MG996R servo motor. The ESP32 is configured to control the servo motor via GPIO 27 and to receive input signals from the IR sensor and ultrasonic sensor through GPIO 14 and GPIO 13, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Diagrama Elétrico - AutoBots: A project utilizing MT3608 in a practical application
ESP32-Controlled Traffic Light and DC Motors with MT3608 Boost Converters
This circuit is designed to control a traffic light and multiple DC motors using an ESP32 microcontroller. The ESP32's GPIO pins are connected to the traffic light to control the green, yellow, and red LEDs, and to the L298N motor drivers for controlling the speed and direction of the DC motors. The MT3608 modules are used to step up the voltage from the AAA batteries to power the motor drivers, and the MG996R servo is controlled by the ESP32 for additional actuation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering devices requiring higher voltage from a low-voltage battery source
  • LED lighting systems
  • Portable electronics
  • USB power banks
  • Solar-powered devices
  • Charging circuits for lithium-ion batteries

Technical Specifications

The MT3608 is available as a module or as an IC. Below are the key technical details:

Key Specifications

Parameter Value
Input Voltage Range 2V to 24V
Output Voltage Range Up to 28V (adjustable via potentiometer)
Maximum Output Current 2A (dependent on input voltage and load)
Efficiency Up to 93%
Switching Frequency 1.2 MHz
Operating Temperature -40°C to +85°C

Pin Configuration (MT3608 IC)

Pin Number Pin Name Description
1 SW Switching node (connect to inductor)
2 GND Ground
3 FB Feedback pin (connect to voltage divider)
4 EN Enable pin (active high)
5 VIN Input voltage
6 VOUT Output voltage

Pin Configuration (MT3608 Module)

Pin Name Description
VIN Input voltage (2V to 24V)
GND Ground
VOUT Output voltage (adjustable via potentiometer)

Usage Instructions

How to Use the MT3608 Module in a Circuit

  1. Connect Input Voltage: Connect the positive terminal of your power source to the VIN pin and the negative terminal to the GND pin.
  2. Connect Output Load: Connect the positive terminal of your load to the VOUT pin and the negative terminal to the GND pin.
  3. Adjust Output Voltage: Use the onboard potentiometer to adjust the output voltage. Turn clockwise to increase the voltage and counterclockwise to decrease it.
  4. Verify Output Voltage: Use a multimeter to measure the output voltage before connecting your load to ensure it matches your requirements.

Important Considerations

  • Input Voltage: Ensure the input voltage is within the 2V to 24V range.
  • Output Voltage: Do not exceed the maximum output voltage of 28V.
  • Current Limitations: The maximum output current is 2A, but this depends on the input voltage and load. Exceeding this limit may damage the module.
  • Heat Dissipation: At high currents, the module may heat up. Consider adding a heatsink or improving ventilation if necessary.
  • Capacitors: Use appropriate input and output capacitors to stabilize the voltage and reduce noise.

Example: Using MT3608 with Arduino UNO

The MT3608 can be used to power an Arduino UNO from a low-voltage source, such as a 3.7V lithium-ion battery. Below is an example circuit and code:

Circuit Connections

  1. Connect the battery's positive terminal to the VIN pin of the MT3608 module and the negative terminal to GND.
  2. Adjust the MT3608 output voltage to 5V using the potentiometer.
  3. Connect the VOUT pin of the MT3608 to the 5V pin of the Arduino UNO and GND to GND.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by MT3608
// Ensure the MT3608 output is set to 5V before connecting to Arduino

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set LED pin as output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. No Output Voltage

    • Cause: Input voltage is too low or not connected properly.
    • Solution: Verify the input voltage is within the 2V to 24V range and check connections.
  2. Output Voltage Not Adjustable

    • Cause: Faulty potentiometer or incorrect adjustment.
    • Solution: Turn the potentiometer slowly and ensure it is not damaged.
  3. Overheating

    • Cause: Excessive current draw or poor ventilation.
    • Solution: Reduce the load current or add a heatsink to the module.
  4. Output Voltage Drops Under Load

    • Cause: Input voltage is insufficient or load exceeds module capacity.
    • Solution: Increase the input voltage or reduce the load current.

FAQs

  1. Can the MT3608 be used to charge batteries?

    • Yes, but ensure the output voltage is set to the appropriate charging voltage for the battery type.
  2. What is the maximum efficiency of the MT3608?

    • The MT3608 can achieve up to 93% efficiency under optimal conditions.
  3. Can I use the MT3608 to power a Raspberry Pi?

    • Yes, but ensure the output voltage is set to 5V and the current requirements of the Raspberry Pi are met.
  4. Is the MT3608 protected against short circuits?

    • No, the MT3608 does not have built-in short-circuit protection. Use external protection if needed.
