Cirkit Designer Logo
Cirkit Designer
Your all-in-one circuit design IDE
Home /
Component Documentation

How to Use DC Circuit breaker: Examples, Pinouts, and Specs

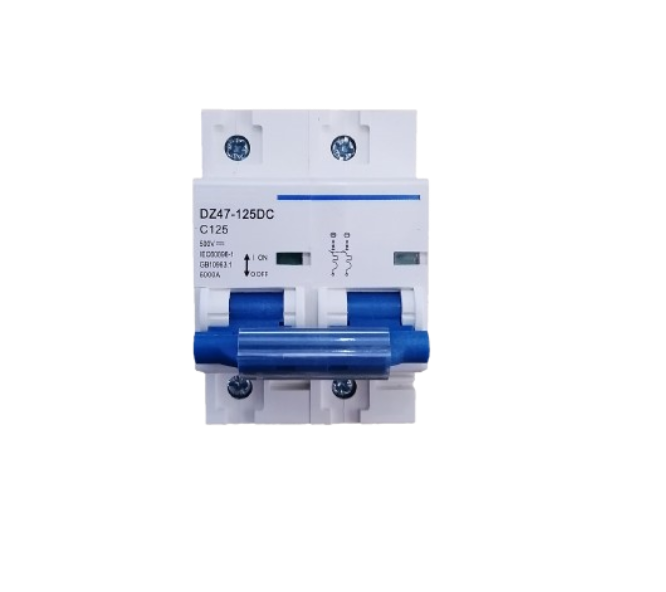

Image of DC Circuit breaker
Cirkit Designer LogoDesign with DC Circuit breaker in Cirkit Designer

Introduction

A DC circuit breaker is a protective device designed to automatically interrupt the flow of direct current (DC) in an electrical circuit. It safeguards electrical systems by preventing damage caused by overloads, short circuits, or other electrical faults. Unlike fuses, which need to be replaced after tripping, circuit breakers can be reset and reused, making them a reliable and cost-effective solution for circuit protection.

Explore Projects Built with DC Circuit breaker

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
AC Bulb Control Circuit with Rocker Switches and Circuit Breaker
Image of schematic: A project utilizing DC Circuit breaker in a practical application
This circuit is designed to control multiple AC bulbs using two rocker switches and a circuit breaker for safety. The circuit is powered by a 220V AC source, with the circuit breaker providing protection and the rocker switches allowing selective control of the connected bulbs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of POWER SUPPLY: A project utilizing DC Circuit breaker in a practical application
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging System with Safety Circuit Breakers and ATS
Image of ONION: A project utilizing DC Circuit breaker in a practical application
This circuit is designed to connect a solar panel to a 12V battery system through a charge controller, ensuring safe charging and power management. Circuit breakers are used for overcurrent protection in the connections between the solar panel, battery, and power inverter. The power inverter is connected to an Automatic Transfer Switch (ATS), which likely serves to switch between power sources or output the inverter's AC power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Dual Source Automatic Transfer Switch System
Image of Ats SCHEMATIC: A project utilizing DC Circuit breaker in a practical application
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC Circuit breaker

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of schematic: A project utilizing DC Circuit breaker in a practical application
AC Bulb Control Circuit with Rocker Switches and Circuit Breaker
This circuit is designed to control multiple AC bulbs using two rocker switches and a circuit breaker for safety. The circuit is powered by a 220V AC source, with the circuit breaker providing protection and the rocker switches allowing selective control of the connected bulbs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of POWER SUPPLY: A project utilizing DC Circuit breaker in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ONION: A project utilizing DC Circuit breaker in a practical application
Solar-Powered Battery Charging System with Safety Circuit Breakers and ATS
This circuit is designed to connect a solar panel to a 12V battery system through a charge controller, ensuring safe charging and power management. Circuit breakers are used for overcurrent protection in the connections between the solar panel, battery, and power inverter. The power inverter is connected to an Automatic Transfer Switch (ATS), which likely serves to switch between power sources or output the inverter's AC power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Ats SCHEMATIC: A project utilizing DC Circuit breaker in a practical application
Solar-Powered Dual Source Automatic Transfer Switch System
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Solar power systems to protect photovoltaic (PV) arrays and batteries.
  • Electric vehicles (EVs) to safeguard high-voltage DC circuits.
  • Industrial machinery and equipment powered by DC.
  • Telecommunications systems to protect sensitive electronics.
  • Battery management systems (BMS) for overcurrent protection.

Technical Specifications

Below are the general technical specifications for a typical DC circuit breaker. Always refer to the datasheet of the specific model you are using for precise details.

Key Technical Details

  • Rated Voltage: 12V DC to 1000V DC (varies by model)
  • Rated Current: 1A to 1000A (varies by model)
  • Breaking Capacity: Up to 50kA (depending on the model)
  • Trip Mechanism: Thermal, magnetic, or a combination of both
  • Reset Type: Manual or automatic
  • Mounting Style: DIN rail or panel mount
  • Operating Temperature: -25°C to +70°C
  • Insulation Resistance: ≥ 100MΩ at 500V DC

Pin Configuration and Descriptions

DC circuit breakers typically have two main terminals for input and output connections. Some models may include auxiliary terminals for additional features like remote monitoring or signaling.

Pin/Terminal Description
Line (Input) Connects to the positive side of the DC power source.
Load (Output) Connects to the positive side of the load (e.g., motor, battery, or circuit).
Auxiliary (Optional) Used for remote monitoring or signaling when the breaker trips (if available).

Usage Instructions

How to Use the Component in a Circuit

  1. Determine the Ratings: Select a DC circuit breaker with a voltage and current rating suitable for your application. Ensure the breaking capacity exceeds the maximum fault current of your system.
  2. Wiring:
    • Connect the Line (Input) terminal to the positive terminal of the DC power source.
    • Connect the Load (Output) terminal to the positive terminal of the load.
    • If the breaker includes auxiliary terminals, follow the manufacturer's instructions for wiring them.
  3. Mounting: Install the breaker on a DIN rail or panel, ensuring it is securely fastened.
  4. Testing: Before powering the system, test the breaker by manually tripping and resetting it to ensure proper operation.

Important Considerations and Best Practices

  • Polarity: DC circuit breakers are polarity-sensitive. Ensure correct polarity during installation.
  • Derating: Consider derating the breaker if it will operate in high-temperature environments.
  • Arc Suppression: For high-voltage DC applications, use breakers with arc suppression technology to prevent damage during tripping.
  • Regular Maintenance: Periodically inspect the breaker for signs of wear, corrosion, or damage.
  • Compliance: Ensure the breaker complies with relevant standards (e.g., IEC 60947-2, UL 489B).

Example: Using a DC Circuit Breaker with an Arduino UNO

While DC circuit breakers are not directly controlled by microcontrollers like the Arduino UNO, you can monitor their status using auxiliary terminals (if available). Below is an example of how to detect a tripped breaker using an Arduino.

// Example: Monitoring a DC Circuit Breaker with Auxiliary Contacts
// This code reads the status of the auxiliary contact and prints the result to the Serial Monitor.

const int auxPin = 2; // Connect the auxiliary contact to digital pin 2
void setup() {
  pinMode(auxPin, INPUT_PULLUP); // Set the pin as input with an internal pull-up resistor
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int breakerStatus = digitalRead(auxPin); // Read the auxiliary contact status
  if (breakerStatus == HIGH) {
    Serial.println("Breaker is ON (closed)."); // Breaker is in normal operation
  } else {
    Serial.println("Breaker is TRIPPED (open)!"); // Breaker has tripped
  }
  delay(1000); // Wait for 1 second before checking again
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Breaker Trips Frequently:

    • Cause: Overload or short circuit in the connected circuit.
    • Solution: Check the load for faults or reduce the current draw.
  2. Breaker Does Not Trip:

    • Cause: Faulty breaker or incorrect current rating.
    • Solution: Verify the breaker rating and replace it if necessary.
  3. Breaker Does Not Reset:

    • Cause: Internal damage or persistent fault in the circuit.
    • Solution: Inspect the breaker and the circuit for faults. Replace the breaker if damaged.
  4. Arcing During Tripping:

    • Cause: High voltage or improper breaker selection.
    • Solution: Use a breaker with arc suppression technology and ensure proper voltage rating.

Solutions and Tips for Troubleshooting

  • Verify Connections: Ensure all terminals are securely connected and polarity is correct.
  • Inspect the Breaker: Look for visible signs of damage, such as burn marks or corrosion.
  • Test the Breaker: Manually trip and reset the breaker to confirm functionality.
  • Check the Load: Ensure the connected load does not exceed the breaker's rated current.

By following this documentation, you can effectively use and maintain a DC circuit breaker in your electrical systems.
