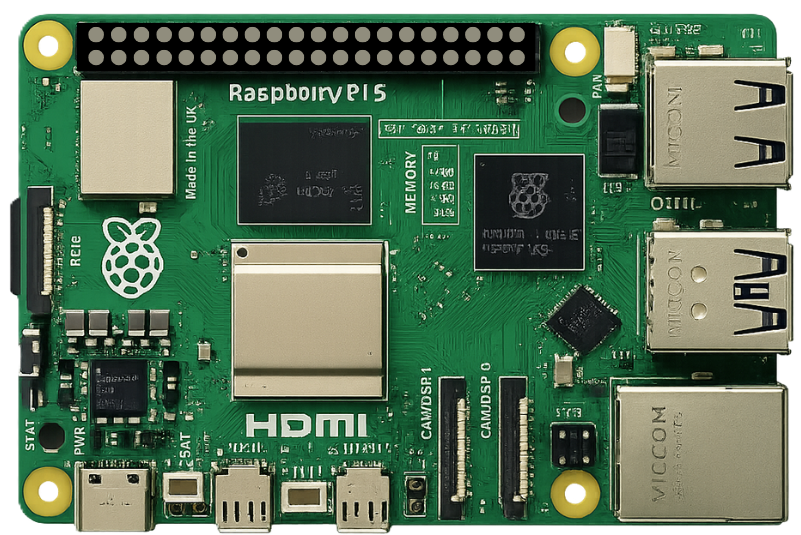

The Raspberry Pi 5 – 8GB RAM, manufactured by Raspberry Pi Ltd., is a compact and affordable single-board computer designed for a wide range of applications. With its powerful processing capabilities and 8GB of RAM, it is ideal for tasks such as programming, robotics, IoT projects, media centers, and more. The Raspberry Pi 5 Model B offers enhanced performance compared to its predecessors, making it a versatile tool for both hobbyists and professionals.

• Programming and Education: Ideal for learning programming languages like Python, C++, and Java.
• IoT and Robotics: Serves as the brain for IoT devices and robotic systems.
• Media Centers: Can be used to build a home theater PC (HTPC) with software like Kodi.
• Web Servers: Suitable for hosting lightweight web servers and applications.
• Prototyping: Perfect for prototyping hardware and software projects.

• Manufacturer: Raspberry Pi Ltd.
• Model: Raspberry Pi 5 Model B (8GB)
• Processor: Quad-core ARM Cortex-A76, 2.4 GHz
• RAM: 8GB LPDDR4X
• GPU: VideoCore VII, supports 4K video output
• Storage: MicroSD card slot, supports up to 1TB
• Connectivity:
  • 2 × USB 3.0 ports
  • 2 × USB 2.0 ports
  • 2 × HDMI ports (4K@60Hz)
  • Gigabit Ethernet
  • Wi-Fi 6 (802.11ax)
  • Bluetooth 5.2
• Power Supply: USB-C, 5V/5A
• GPIO Pins: 40-pin header, backward-compatible with previous Raspberry Pi models
• Dimensions: 85.6mm × 56.5mm × 18mm

The Raspberry Pi 5 features a 40-pin GPIO header. Below is a summary of the pin configuration:

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

1. Powering the Raspberry Pi:

   • Use a 5V/5A USB-C power adapter to power the Raspberry Pi 5.
   • Ensure the power supply is stable to avoid performance issues.

2. Connecting Peripherals:

   • Attach a monitor via the HDMI ports.
   • Connect a keyboard and mouse to the USB ports.
   • Insert a microSD card with a compatible operating system (e.g., Raspberry Pi OS).

3. Using GPIO Pins:

   • Use the GPIO pins for interfacing with sensors, LEDs, motors, and other components.
   • Be cautious about voltage levels; GPIO pins operate at 3.3V.

4. Networking:

   • Connect to the internet via Wi-Fi 6 or Gigabit Ethernet for remote access and updates.

• Cooling: Use a heatsink or fan to prevent overheating during intensive tasks.
• Static Protection: Handle the board with care to avoid static discharge damage.
• Software Updates: Regularly update the operating system and firmware for optimal performance.
• Power Supply: Avoid using low-quality power adapters to prevent voltage drops.

The Raspberry Pi 5 can control an LED using its GPIO pins. Below is an example Python script:

import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM)

LED_PIN = 18

GPIO.setup(LED_PIN, GPIO.OUT)

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn on the LED time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn off the LED time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()

**Note**: Connect the LED to GPIO 18 with a 330-ohm resistor in series to limit current.

---

1. The Raspberry Pi does not boot:

   • Ensure the microSD card is properly inserted and contains a valid OS image.
   • Check the power supply for sufficient voltage and current.

2. Overheating:

   • Use a heatsink or fan to improve cooling.
   • Avoid running resource-intensive tasks for extended periods without proper cooling.

3. No display output:

   • Verify the HDMI cable and monitor connection.
   • Ensure the correct HDMI port is being used (HDMI 0 is the primary port).

4. GPIO pins not working:

   • Check the GPIO pin configuration in your code.
   • Ensure no short circuits or incorrect connections.

• Can I use older Raspberry Pi accessories with the Raspberry Pi 5?

  • Yes, most accessories like cases and GPIO-based add-ons are compatible, but check for specific compatibility.

• What operating systems are supported?

  • Raspberry Pi OS, Ubuntu, and other Linux-based distributions are supported.

• Can I power the Raspberry Pi 5 via GPIO pins?

  • Yes, but it is recommended to use the USB-C port for stable power delivery.

• Does the Raspberry Pi 5 support dual monitors?

  • Yes, it supports dual 4K monitors via the two HDMI ports.

This documentation provides a comprehensive guide to using the Raspberry Pi 5 – 8GB RAM effectively. For further details, refer to the official Raspberry Pi website.
