How to Use Arduino nano development board: Examples, Pinouts, and Specs

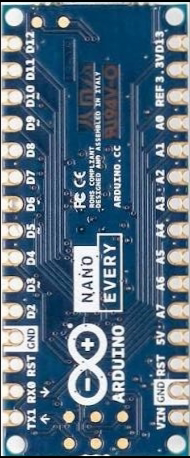

Image of Arduino nano development board
Cirkit Designer LogoDesign with Arduino nano development board in Cirkit Designer

Introduction

The Arduino Nano (Manufacturer Part ID: A000005) is a compact microcontroller board developed by Arduino. It is based on the ATmega328P microcontroller and is designed for easy integration into a wide range of electronic projects. Its small form factor, USB connectivity, and versatile input/output capabilities make it an ideal choice for prototyping and embedded systems.

Explore Projects Built with Arduino nano development board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino nano development board in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
Image of mt: A project utilizing Arduino nano development board in a practical application
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino nano development board in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino nano development board in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino nano development board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing Arduino nano development board in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mt: A project utilizing Arduino nano development board in a practical application
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino nano development board in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing Arduino nano development board in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DIY electronics and prototyping
  • Robotics and automation systems
  • IoT (Internet of Things) devices
  • Sensor data acquisition and processing
  • Wearable technology
  • Educational projects and learning platforms

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is the pin configuration:

Power Pins

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the onboard voltage regulator.
3.3V Regulated 3.3V output (maximum current: 50 mA).
GND Ground pins.
RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Number Description
D0 (RX) UART Receive pin.
D1 (TX) UART Transmit pin.
D2-D13 General-purpose digital I/O pins.
D3, D5, D6, D9, D10, D11 PWM-enabled digital pins.

Analog Pins

Pin Number Description
A0-A7 Analog input pins (10-bit resolution).

Other Pins

Pin Name Description
AREF Reference voltage for analog inputs.
ICSP In-Circuit Serial Programming header for flashing the microcontroller.

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the Mini-B USB port to power and program the board.
    • Alternatively, supply 7-12V to the VIN pin or regulated 5V to the 5V pin.
  2. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals (e.g., from sensors).
    • Connect external modules (e.g., sensors, motors) to the appropriate pins.
  3. Programming the Board:

    • Install the Arduino IDE from Arduino's official website.
    • Select "Arduino Nano" as the board type in the IDE.
    • Connect the board to your computer via a Mini-B USB cable.
    • Write your code in the Arduino IDE and upload it to the board.

Important Considerations and Best Practices

  • Ensure the input voltage does not exceed the specified range (7-12V for VIN).
  • Avoid drawing more than 40 mA from any single I/O pin to prevent damage.
  • Use pull-up or pull-down resistors for stable digital input signals.
  • When using analog inputs, ensure the input voltage does not exceed 5V.
  • Use the RESET pin or button to restart the board if needed.

Example Code for Arduino Nano with an LED

The following example demonstrates how to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// The LED will turn ON for 1 second and OFF for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and properly connected.
    • Install the necessary drivers for the Arduino Nano.
    • Check if the correct COM port is selected in the Arduino IDE.
  2. Code upload fails:

    • Verify that "Arduino Nano" is selected as the board type in the IDE.
    • Ensure the correct processor is selected (ATmega328P or ATmega328P (Old Bootloader)).
    • Press the RESET button just before uploading the code.
  3. The board is overheating:

    • Check for short circuits in the connected components.
    • Ensure the input voltage does not exceed the recommended range.
  4. Analog readings are unstable:

    • Use a capacitor between the analog input pin and ground to filter noise.
    • Ensure the sensor or input device is properly grounded.

FAQs

Q: Can I power the Arduino Nano with a battery?
A: Yes, you can power the board using a battery by connecting it to the VIN pin (7-12V) or the 5V pin (regulated 5V).

Q: What is the difference between the Arduino Nano and Arduino Uno?
A: The Arduino Nano is smaller and more compact than the Uno, making it ideal for space-constrained projects. However, both boards use the same ATmega328P microcontroller and have similar functionality.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05) or Wi-Fi (ESP8266) to the Nano via its digital or serial pins.

Q: How do I reset the Arduino Nano?
A: You can reset the board by pressing the onboard RESET button or pulling the RESET pin LOW.

This concludes the documentation for the Arduino Nano Development Board. For more information, visit the official Arduino website.
