How to Use Zeee 22.2V 7000mAh 100C lipo battery: Examples, Pinouts, and Specs

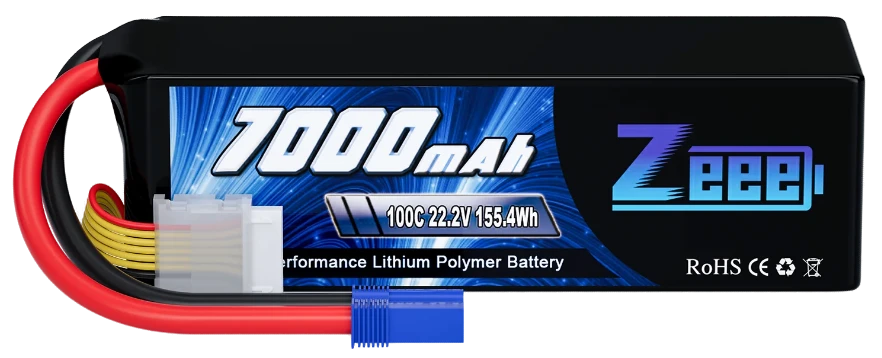

The Zeee 22.2V 7000mAh 100C LiPo Battery is a high-performance lithium polymer battery designed for applications requiring high power and reliability. With a nominal voltage of 22.2V and a capacity of 7000mAh, this battery is capable of delivering a continuous discharge rate of up to 100C, making it ideal for demanding applications such as remote-controlled (RC) vehicles, drones, and other high-power devices.

• RC cars, trucks, and boats
• Drones and quadcopters
• Airplanes and helicopters
• Robotics and industrial equipment
• High-performance hobbyist projects

Below are the key technical details of the Zeee 22.2V 7000mAh 100C LiPo Battery:

The Zeee 22.2V 7000mAh 100C LiPo Battery features the following connectors:

1. Connecting the Battery:

   • Use the XT90 connector to connect the battery to your device or electronic speed controller (ESC).
   • Ensure the polarity (positive and negative terminals) is correctly matched to avoid damage.
   • For charging, connect the JST-XH balance connector to a compatible LiPo balance charger.

2. Charging the Battery:

   • Use a LiPo-compatible balance charger with a 6S configuration.
   • Set the charger to the appropriate voltage (22.2V nominal, 25.2V maximum) and current (recommended: 1C or 7A for safe charging).
   • Always monitor the charging process and avoid overcharging or overheating.

3. Discharging the Battery:

   • Do not discharge the battery below 18.0V to prevent damage to the cells.
   • Use a battery monitor or low-voltage alarm to ensure safe operation during use.

4. Storage:

   • Store the battery at a voltage of approximately 22.8V (3.8V per cell) for long-term storage.
   • Keep the battery in a cool, dry place away from flammable materials.

• Safety First: Always handle LiPo batteries with care. Avoid puncturing, short-circuiting, or exposing the battery to fire or water.
• Charging Precautions: Use only a compatible LiPo balance charger. Never leave the battery unattended while charging.
• Temperature Management: Avoid using the battery in extreme temperatures. High temperatures can cause swelling, while low temperatures can reduce performance.
• Inspect Regularly: Check the battery for physical damage, swelling, or unusual behavior before each use.
• Disposal: Dispose of the battery responsibly according to local regulations. Do not throw it in regular trash.

While the Zeee 22.2V 7000mAh 100C LiPo Battery is not directly compatible with the Arduino UNO due to its high voltage, you can use a voltage regulator or DC-DC step-down converter to safely power the Arduino. Below is an example circuit and code:

1. Connect the battery's XT90 connector to a DC-DC step-down converter.
2. Set the output voltage of the converter to 5V.
3. Connect the 5V output from the converter to the Arduino UNO's 5V pin and GND.

// Example code for Arduino UNO powered by a Zeee 22.2V LiPo Battery
// through a DC-DC step-down converter

void setup() {
  // Initialize serial communication
  Serial.begin(9600);
  Serial.println("Arduino powered by Zeee 22.2V LiPo Battery");
}

void loop() {
  // Example: Blink an LED connected to pin 13
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Battery Swelling:

   • Cause: Overcharging, over-discharging, or exposure to high temperatures.
   • Solution: Stop using the battery immediately. Dispose of it safely if swelling persists.

2. Battery Not Charging:

   • Cause: Faulty charger, damaged balance connector, or incorrect charger settings.
   • Solution: Verify the charger settings and connections. Inspect the balance connector for damage.

3. Low Runtime:

   • Cause: Battery degradation, excessive discharge rate, or improper charging.
   • Solution: Ensure the battery is fully charged and not being over-discharged. Replace the battery if it is old or degraded.

4. Device Not Powering On:

   • Cause: Incorrect connection, low battery voltage, or damaged cells.
   • Solution: Check the connections and measure the battery voltage. Recharge or replace the battery if necessary.

Q: Can I use this battery for a 4S or 3S application?
A: No, this is a 6S battery with a nominal voltage of 22.2V. Using it in a lower-voltage application may damage your device.

Q: What is the maximum safe charging current?
A: The recommended charging current is 1C (7A). However, the battery can support up to 2C (14A) for faster charging, provided your charger supports it.

Q: How do I know when the battery is fully charged?
A: The battery is fully charged when the voltage reaches 25.2V (4.2V per cell).

Q: Can I use this battery in parallel with another LiPo battery?
A: Yes, but ensure both batteries have the same voltage, capacity, and charge level before connecting them in parallel.

By following this documentation, you can safely and effectively use the Zeee 22.2V 7000mAh 100C LiPo Battery in your projects.
