How to Use HC-SR04 Sonar Sensor: Examples, Pinouts, and Specs

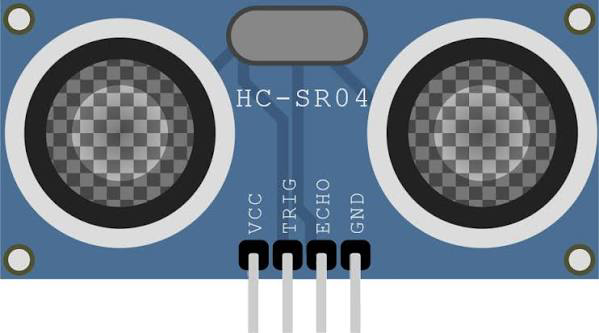

The HC-SR04 is an ultrasonic distance sensor that uses sonar to measure the distance to an object. It emits a high-frequency sound wave and measures the time it takes for the echo to return, allowing it to calculate the distance based on the speed of sound. This sensor is widely used in robotics, automation, and obstacle detection systems due to its accuracy, affordability, and ease of use.

• Obstacle detection in robotics
• Distance measurement in automation systems
• Liquid level sensing
• Parking assistance systems
• Proximity detection in security systems

The HC-SR04 sensor is designed for precise distance measurement and operates within a specific range of environmental conditions. Below are its key technical details:

The HC-SR04 has four pins, as described in the table below:

1. Power the Sensor: Connect the VCC pin to a 5V power source and the GND pin to the ground.
2. Trigger the Sensor: Send a 10 µs HIGH pulse to the Trig pin to initiate a measurement.
3. Read the Echo: Measure the duration of the HIGH pulse on the Echo pin. This duration is proportional to the distance of the object.
4. Calculate Distance: Use the formula below to calculate the distance: [ \text{Distance (cm)} = \frac{\text{Pulse Duration (µs)} \times 0.034}{2} ] The factor 0.034 represents the speed of sound in cm/µs, and the division by 2 accounts for the round trip of the sound wave.

• Ensure the sensor is mounted securely and aligned properly for accurate measurements.
• Avoid placing the sensor near ultrasonic noise sources, as they may interfere with its operation.
• Use a capacitor (e.g., 10 µF) across the VCC and GND pins to stabilize the power supply.
• The sensor works best in environments with minimal temperature fluctuations, as the speed of sound varies with temperature.

Below is an example of how to use the HC-SR04 with an Arduino UNO:

// Define pins for the HC-SR04 sensor
const int trigPin = 9;  // Trig pin connected to digital pin 9
const int echoPin = 10; // Echo pin connected to digital pin 10

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);

  // Set pin modes
  pinMode(trigPin, OUTPUT); // Trig pin as output
  pinMode(echoPin, INPUT);  // Echo pin as input
}

void loop() {
  // Send a 10 µs HIGH pulse to the Trig pin
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  // Measure the duration of the HIGH pulse on the Echo pin
  long duration = pulseIn(echoPin, HIGH);

  // Calculate the distance in cm
  float distance = (duration * 0.034) / 2;

  // Print the distance to the Serial Monitor
  Serial.print("Distance: ");
  Serial.print(distance);
  Serial.println(" cm");

  // Wait before the next measurement
  delay(500);
}

1. No Output or Incorrect Readings

   • Cause: Loose or incorrect wiring.
   • Solution: Double-check all connections, ensuring the VCC, GND, Trig, and Echo pins are connected properly.

2. Fluctuating Distance Measurements

   • Cause: Electrical noise or unstable power supply.
   • Solution: Add a decoupling capacitor (e.g., 10 µF) across the VCC and GND pins.

3. Sensor Not Responding

   • Cause: Incorrect trigger signal.
   • Solution: Ensure the Trig pin receives a 10 µs HIGH pulse.

4. Inconsistent Measurements in Certain Environments

   • Cause: Interference from nearby ultrasonic sources or reflective surfaces.
   • Solution: Relocate the sensor or shield it from interference.

Q: Can the HC-SR04 measure distances less than 2 cm?
A: No, the HC-SR04 has a minimum measuring range of 2 cm. Objects closer than this may not be detected accurately.

Q: Can I use the HC-SR04 with a 3.3V microcontroller?
A: While the HC-SR04 operates at 5V, you can use a level shifter to safely interface it with a 3.3V microcontroller.

Q: How does temperature affect the sensor's accuracy?
A: The speed of sound varies with temperature, which can slightly affect distance measurements. For critical applications, consider compensating for temperature variations in your calculations.
