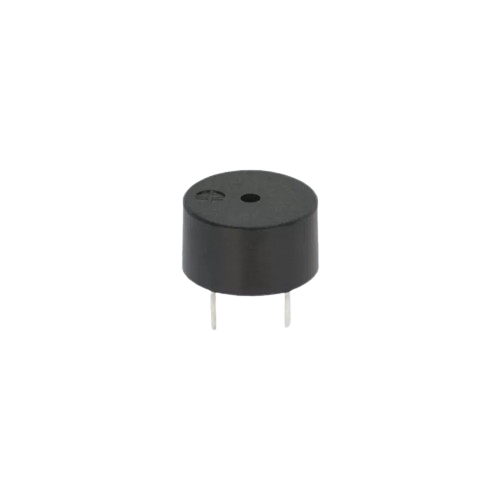

A buzzer is an audio signaling device that produces sound when an electric current passes through it. It is commonly used in electronic circuits to provide audible feedback, alarms, or notifications. The term "pin space" refers to the spacing between the pins of the buzzer, which is important for mounting or connecting the component to a circuit or breadboard.
Explore Projects Built with Buzzer(pin space)
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

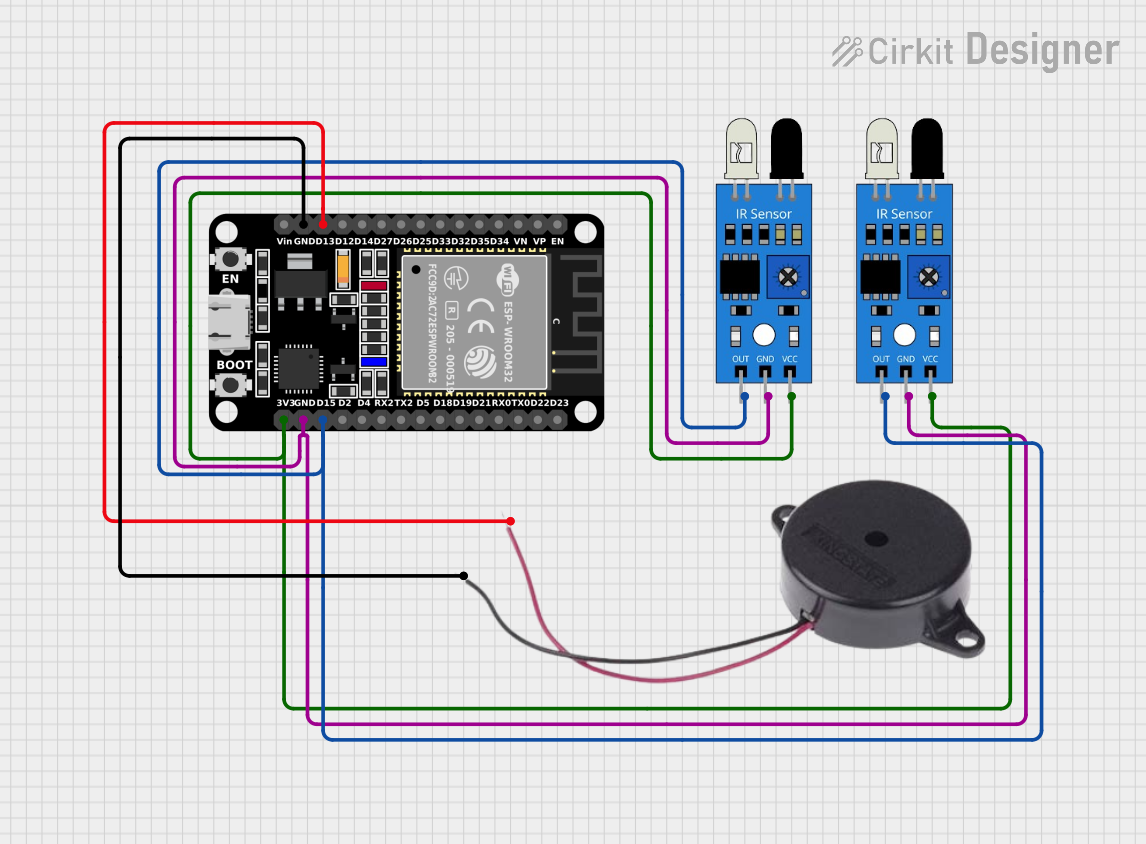

This circuit features an ESP32 microcontroller connected to two IR sensors and a buzzer. The IR sensors are interfaced with the ESP32 via a common output pin connected to the ESP32's D15 pin, and both sensors are powered by the ESP32's 3V3 pin. The buzzer is controlled by the ESP32 through the D13 pin, with its negative terminal connected to the ground (GND). The circuit is likely designed for object detection with audible feedback, where the ESP32 processes signals from the IR sensors and activates the buzzer accordingly.
This circuit consists of an Arduino UNO microcontroller connected to a buzzer. The Arduino's digital pin D7 is connected to the buzzer's signal input, and the ground (GND) pins of both the Arduino and the buzzer are interconnected. The provided code for the Arduino is a template with empty setup and loop functions, indicating that the buzzer's operation is not yet defined in the code.

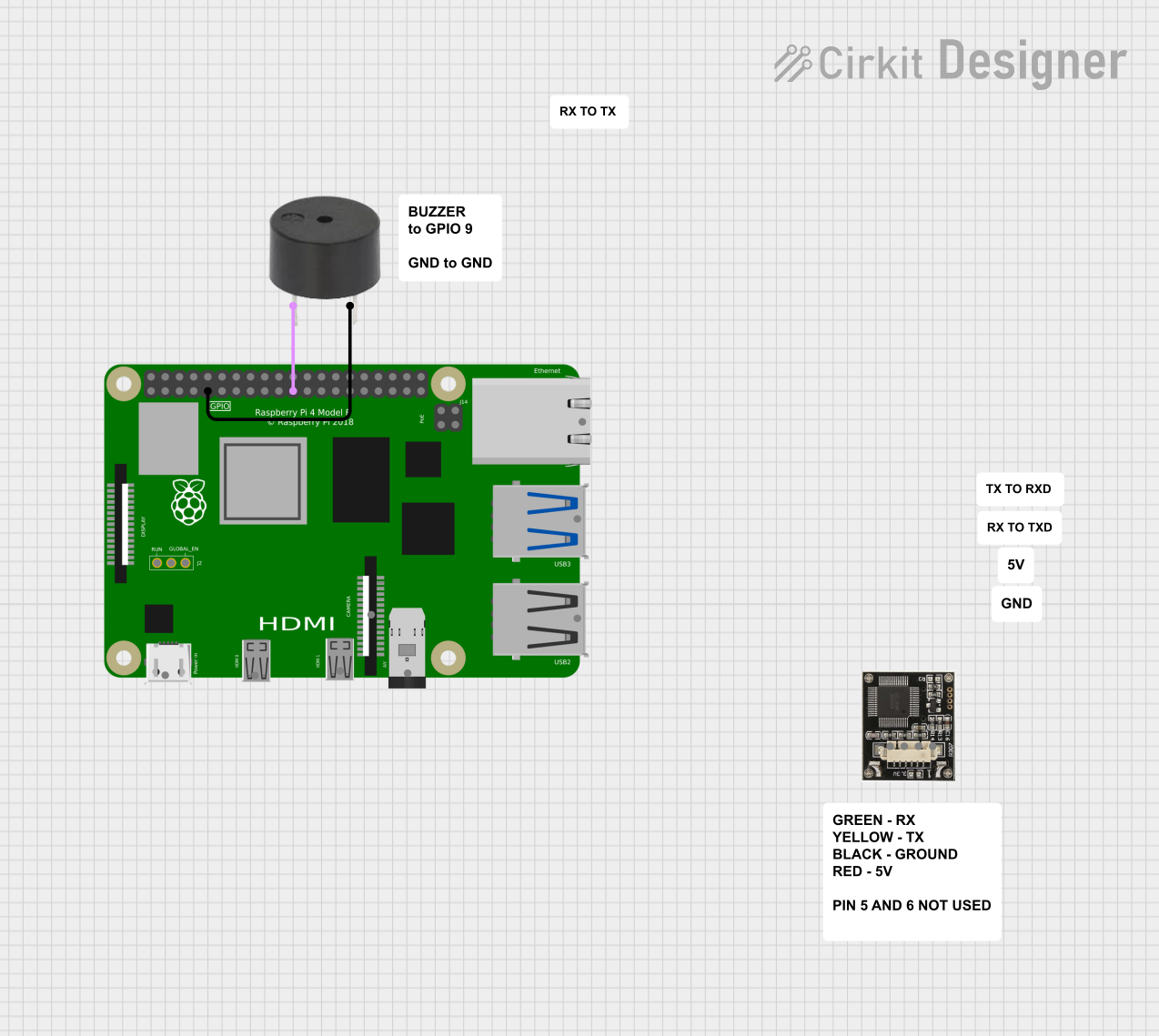

This circuit connects a buzzer to a Raspberry Pi 4B, with the buzzer's ground pin connected to the Raspberry Pi's ground and the buzzer's signal pin connected to GPIO9. The Raspberry Pi can control the buzzer through GPIO9, allowing for sound generation based on the Raspberry Pi's programming.
This circuit features an ESP32 microcontroller connected to an IR sensor, an HC-SR04 ultrasonic sensor, and a buzzer. The ESP32 reads the IR sensor output on pin G34 and controls the ultrasonic sensor by triggering it via pin G25 and receiving echo signals on pin G26. The buzzer is actuated through pin G14, and the entire circuit is powered by a 5V battery connected to the ESP32 and the ultrasonic sensor, with a common ground for all components.
Feedback in user interfaces (e.g., button presses)
Educational and DIY electronics projects
Technical Specifications
Below are the general technical specifications for a typical buzzer. Note that specific values may vary depending on the model and manufacturer.
Parameter
Value
Operating Voltage
3V to 12V DC
Current Consumption
10mA to 50mA
Sound Output Level
85dB to 100dB (at 10cm distance)
Frequency Range
2kHz to 4kHz
Pin Spacing
5mm to 10mm (varies by model)
Operating Temperature
-20°C to +60°C
Dimensions
Varies (e.g., 12mm diameter)
Pin Configuration and Descriptions
Buzzers typically have two pins: a positive (+) pin and a negative (-) pin. The table below describes the pin configuration:
Pin
Description
Positive (+)
Connects to the positive terminal of the power supply or microcontroller output.
Negative (-)
Connects to the ground (GND) of the circuit.
Usage Instructions
How to Use the Buzzer in a Circuit
Identify the Pins: Determine the positive (+) and negative (-) pins of the buzzer. These are usually marked on the component.
Connect to Power: Connect the positive pin to the power source or microcontroller output pin. Connect the negative pin to the ground (GND).
Control the Buzzer: Use a microcontroller (e.g., Arduino UNO) or a simple switch to control the buzzer. For microcontroller-based control, you can use a digital output pin to turn the buzzer on or off.
Important Considerations and Best Practices
Voltage Compatibility: Ensure the operating voltage of the buzzer matches the voltage of your circuit.
Current Limiting: If necessary, use a resistor to limit the current to the buzzer and protect your circuit.
Polarity: Always connect the positive and negative pins correctly to avoid damage.
Mounting: Ensure the pin spacing of the buzzer matches the holes on your PCB or breadboard.
Example: Using a Buzzer with Arduino UNO
Below is an example of how to connect and control a buzzer using an Arduino UNO:
Circuit Diagram
Connect the positive pin of the buzzer to Arduino digital pin 8.
Connect the negative pin of the buzzer to the GND pin of the Arduino.
Code Example
// Buzzer control example with Arduino UNO
// Connect the buzzer's positive pin to digital pin 8
// Connect the buzzer's negative pin to GND
const int buzzerPin = 8; // Define the pin connected to the buzzer
void setup() {
pinMode(buzzerPin, OUTPUT); // Set the buzzer pin as an output
}
void loop() {
digitalWrite(buzzerPin, HIGH); // Turn the buzzer ON
delay(1000); // Wait for 1 second
digitalWrite(buzzerPin, LOW); // Turn the buzzer OFF
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
No Sound from the Buzzer
Cause: Incorrect pin connections or insufficient voltage.
Solution: Verify the positive and negative pins are connected correctly. Check the power supply voltage.
Buzzer Produces Weak or Distorted Sound
Cause: Insufficient current or incorrect operating voltage.
Solution: Ensure the power supply provides the required voltage and current. Add a current-limiting resistor if needed.
Buzzer Does Not Turn Off
Cause: Microcontroller output pin is not set to LOW.
Solution: Check the code to ensure the output pin is toggled between HIGH and LOW states.
FAQs
Q: Can I use a buzzer with an AC power source?
A: No, most buzzers are designed for DC power. Using an AC source may damage the component.
Q: How do I know the correct pin spacing for my buzzer?
A: Refer to the datasheet or measure the distance between the pins. Common spacings are 5mm or 10mm.
Q: Can I control the buzzer's sound frequency?
A: Yes, for active buzzers, the frequency is fixed. For passive buzzers, you can control the frequency by generating a PWM signal from a microcontroller.
By following this documentation, you can effectively integrate a buzzer into your electronic projects!
