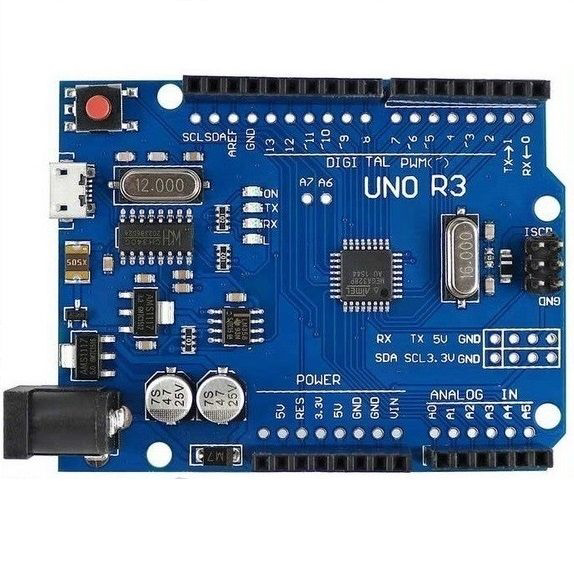

Image of UNO_R3
Cirkit Designer LogoDesign with UNO_R3 in Cirkit Designer

Introduction

The Arduino UNO R3 is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is one of the most popular and versatile development boards, widely used for prototyping, learning electronics, and building interactive projects. The board features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a USB connection for programming, a power jack, and a reset button. Its simplicity and extensive community support make it an excellent choice for beginners and professionals alike.

Explore Projects Built with UNO_R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing UNO_R3 in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing UNO_R3 in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino RFID Attendance System with SMS Alerts and RTC Synchronization
Image of rfidforattendance: A project utilizing UNO_R3 in a practical application
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the central controller. It features an RFID reader for user identification, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and uses red/green LEDs to indicate access status.
Cirkit Designer LogoOpen Project in Cirkit Designer
RFID Attendance System with SMS Alerts and RTC Synchronization
Image of Copy of diaram: A project utilizing UNO_R3 in a practical application
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the main controller. It features an RFID reader for scanning tags, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and provides visual status indicators with red and green LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with UNO_R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of wheel: A project utilizing UNO_R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit: A project utilizing UNO_R3 in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfidforattendance: A project utilizing UNO_R3 in a practical application
Arduino RFID Attendance System with SMS Alerts and RTC Synchronization
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the central controller. It features an RFID reader for user identification, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and uses red/green LEDs to indicate access status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of diaram: A project utilizing UNO_R3 in a practical application
RFID Attendance System with SMS Alerts and RTC Synchronization
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the main controller. It features an RFID reader for scanning tags, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and provides visual status indicators with red and green LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Sensor-based systems
  • LED control and lighting projects
  • Educational tools for learning programming and electronics
  • Prototyping and testing circuits

Technical Specifications

The following table outlines the key technical details of the Arduino UNO R3:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

The Arduino UNO R3 has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

Digital Pins

Pin Number Function Description
0 (RX) Digital I/O, Serial Receive Used for serial communication (UART RX)
1 (TX) Digital I/O, Serial Transmit Used for serial communication (UART TX)
2-13 Digital I/O General-purpose digital input/output pins
3, 5, 6, 9, 10, 11 PWM Output Can output PWM signals for motor control, etc.

Analog Pins

Pin Number Function Description
A0-A5 Analog Input Reads analog signals (0-5V)

Power Pins

Pin Name Function Description
VIN Input Voltage External power input (7-12V recommended)
5V Regulated 5V Output Powers external components
3.3V Regulated 3.3V Output Powers low-voltage components
GND Ground Common ground for the circuit
RESET Reset Resets the microcontroller

Communication Pins

Pin Name Function Description
SDA I2C Data Used for I2C communication
SCL I2C Clock Used for I2C communication
RX (0) UART Receive Serial communication receive pin
TX (1) UART Transmit Serial communication transmit pin

Usage Instructions

How to Use the Arduino UNO R3 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer and select the correct board ("Arduino UNO") and port in the IDE.
    • Write your code in the IDE and upload it to the board using the "Upload" button.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the total current drawn by the connected components does not exceed the board's limits.
  4. Using PWM Outputs:

    • Connect devices like LEDs or motors to PWM-capable pins (3, 5, 6, 9, 10, 11) for variable control.
  5. Serial Communication:

    • Use the Serial Monitor in the Arduino IDE to send and receive data via the USB connection.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (20 mA per pin) to prevent damage to the board.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • When using motors or high-power devices, use external power supplies and appropriate driver circuits.
  • Always double-check connections to avoid short circuits or incorrect wiring.

Example Code for Arduino UNO R3

The following example demonstrates how to blink an LED connected to pin 13:

// This code blinks an LED connected to digital pin 13 on the Arduino UNO R3.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB drivers for the Arduino UNO R3.
  2. Code does not upload to the board:

    • Verify that the correct board ("Arduino UNO") is selected in the IDE.
    • Press the reset button on the board and try uploading again.
    • Ensure no other program is using the same COM port.
  3. Components are not working as expected:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the Arduino UNO R3.
    • Use a multimeter to verify voltage and current levels.
  4. The board overheats:

    • Check for short circuits or excessive current draw from connected components.
    • Use external power supplies for high-power devices.

FAQs

Q: Can I power the Arduino UNO R3 with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or the VIN pin.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, and up to 1A when powered via an external power supply.

Q: Can I use the Arduino UNO R3 for wireless communication?
A: Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers for wireless communication.

Q: Is the Arduino UNO R3 compatible with shields?
A: Yes, the Arduino UNO R3 is compatible with a wide range of Arduino shields for extended functionality.
