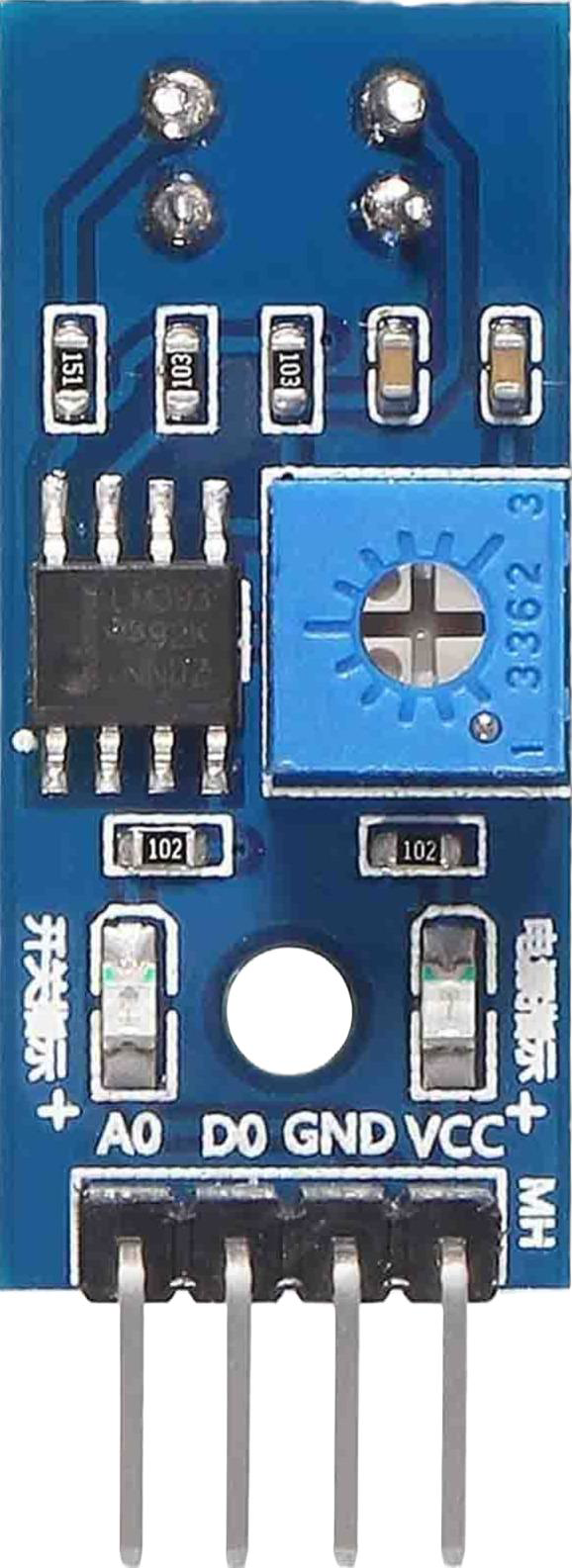

How to Use TCRT5000: Examples, Pinouts, and Specs

The TCRT5000 is an infrared (IR) sensor module that integrates an IR emitter (LED) and a phototransistor in a single package. It is designed for detecting objects and measuring proximity by emitting IR light and sensing the reflected light from nearby objects. The sensor is highly sensitive to reflective surfaces and is commonly used in robotics, line-following robots, optical encoders, and other automation systems.

• Line-following robots
• Object detection in automation systems
• Proximity sensing
• Optical encoders for rotational or linear motion detection
• Edge detection in conveyor belts

The TCRT5000 sensor has the following key technical details:

The TCRT5000 has four pins, as described in the table below:

1. Power Supply: Connect the IR LED anode (Pin 1) to a current-limiting resistor (typically 220Ω to 1kΩ) and then to the power supply (3.3V or 5V). Connect the cathode (Pin 2) to ground.
2. Phototransistor Circuit: Connect the phototransistor's collector (Pin 3) to a pull-up resistor (e.g., 10kΩ) and then to the power supply. Connect the emitter (Pin 4) to ground.
3. Output Signal: The voltage at the collector pin will vary depending on the amount of IR light reflected back to the phototransistor. A higher reflection results in a lower voltage at the collector.

• Optimal Distance: The TCRT5000 works best at a distance of 2-10 mm from the reflective surface. Ensure the object is within this range for accurate detection.
• Surface Reflectivity: The sensor's performance depends on the reflectivity of the surface. Light-colored or shiny surfaces reflect more IR light, while dark or matte surfaces reflect less.
• Ambient Light: Minimize ambient light interference by shielding the sensor or using it in controlled lighting conditions.
• Current Limiting: Always use a resistor in series with the IR LED to prevent damage due to excessive current.

Below is an example of how to connect the TCRT5000 to an Arduino UNO for object detection:

• TCRT5000 Pin 1 (Emitter A): Connect to a 220Ω resistor, then to Arduino 5V.
• TCRT5000 Pin 2 (Emitter K): Connect to Arduino GND.
• TCRT5000 Pin 3 (Collector): Connect to a 10kΩ pull-up resistor, then to Arduino 5V. Also connect to Arduino digital pin 2.
• TCRT5000 Pin 4 (Emitter): Connect to Arduino GND.

// TCRT5000 Object Detection Example
// Connect TCRT5000 output to Arduino digital pin 2

const int sensorPin = 2; // Pin connected to TCRT5000 collector
const int ledPin = 13;   // Built-in LED for visual feedback

void setup() {
  pinMode(sensorPin, INPUT); // Set sensor pin as input
  pinMode(ledPin, OUTPUT);   // Set LED pin as output
  Serial.begin(9600);        // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(sensorPin); // Read sensor output

  if (sensorValue == LOW) {
    // Object detected (IR light reflected)
    digitalWrite(ledPin, HIGH); // Turn on LED
    Serial.println("Object detected!");
  } else {
    // No object detected
    digitalWrite(ledPin, LOW); // Turn off LED
    Serial.println("No object detected.");
  }

  delay(100); // Small delay for stability
}

1. Sensor Not Detecting Objects:

   • Ensure the object is within the optimal detection range (2-10 mm).
   • Check the surface reflectivity; dark or matte surfaces may not reflect enough IR light.
   • Verify the circuit connections, especially the pull-up resistor on the phototransistor.

2. False Detections:

   • Reduce ambient light interference by shielding the sensor.
   • Ensure the IR LED is functioning correctly by checking its forward voltage with a multimeter.

3. No Output Signal:

   • Verify the current-limiting resistor for the IR LED is correctly sized (220Ω to 1kΩ).
   • Check the pull-up resistor on the phototransistor (typically 10kΩ).

Q1: Can the TCRT5000 detect black surfaces?
A1: Black surfaces absorb most IR light and reflect very little, making detection difficult. Use reflective or light-colored surfaces for better results.

Q2: What is the maximum detection range of the TCRT5000?
A2: The sensor can detect objects up to 15 mm away, but the optimal range is 2-10 mm.

Q3: Can I use the TCRT5000 with a 3.3V power supply?
A3: Yes, the TCRT5000 operates with both 3.3V and 5V power supplies. Adjust the resistors accordingly to limit current.

Q4: How do I reduce noise in the output signal?
A4: Add a small capacitor (e.g., 0.1 µF) between the collector and emitter of the phototransistor to filter noise.

By following this documentation, you can effectively integrate the TCRT5000 into your projects for reliable object detection and proximity sensing.
