How to Use Round Speaker 8Ω 0.5W: Examples, Pinouts, and Specs

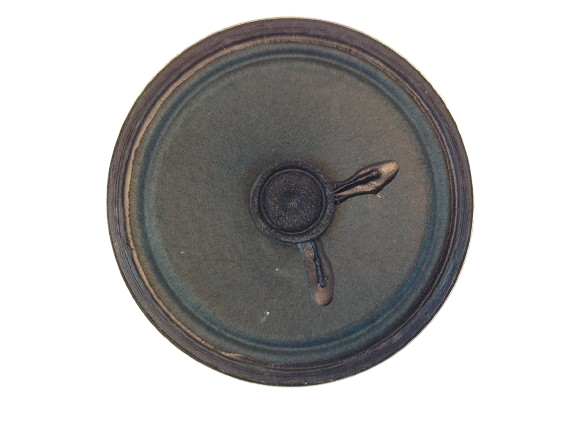

The Round Speaker 8Ω 0.5W, manufactured by Oliver Lodge (Part ID: Speaker), is a compact and efficient audio output device. It is designed to convert electrical signals into sound waves, making it ideal for a variety of audio applications. With an impedance of 8 ohms and a power rating of 0.5 watts, this speaker is suitable for low-power audio systems, hobbyist projects, and educational purposes.

• Portable audio devices
• DIY electronics projects
• Educational kits and experiments
• Alarm systems and notification devices
• Embedded systems requiring sound output

Below are the key technical details of the Round Speaker 8Ω 0.5W:

The speaker has two solder terminals for electrical connections:

1. Power Requirements: Ensure the audio amplifier or signal source does not exceed the speaker's power rating of 0.5W. Exceeding this limit may damage the speaker.
2. Connection:
   • Solder the positive terminal of the speaker to the positive output of the audio amplifier.
   • Solder the negative terminal to the ground or negative output of the amplifier.
3. Mounting: Secure the speaker in an enclosure or mounting bracket to enhance sound quality and protect the component.
4. Amplification: Use an audio amplifier circuit to drive the speaker, as direct connection to a microcontroller may not provide sufficient power.

• Impedance Matching: Ensure the amplifier or audio source is compatible with the speaker's 8Ω impedance to avoid distortion or damage.
• Power Handling: Do not exceed the 0.5W power rating to prevent overheating or permanent damage.
• Enclosure Design: Use a properly designed enclosure to improve sound quality and resonance.
• Polarity: Maintain correct polarity when connecting the speaker to avoid phase cancellation in multi-speaker setups.

To use the speaker with an Arduino UNO, you will need an audio amplifier circuit, as the Arduino cannot directly drive the speaker. Below is an example of generating a simple tone using the Arduino:

/*
  Example: Generating a tone on the Round Speaker 8Ω 0.5W
  Note: Use an audio amplifier circuit between the Arduino and the speaker.
*/

#define SPEAKER_PIN 9  // Pin connected to the amplifier input

void setup() {
  // No setup required for tone generation
}

void loop() {
  tone(SPEAKER_PIN, 1000);  // Generate a 1 kHz tone
  delay(1000);              // Play the tone for 1 second
  noTone(SPEAKER_PIN);      // Stop the tone
  delay(1000);              // Wait for 1 second
}

Note: Always use an amplifier circuit between the Arduino and the speaker to ensure proper operation and avoid damaging the microcontroller.

1. No Sound Output:

   • Cause: Incorrect wiring or loose connections.
   • Solution: Verify the connections to the amplifier and ensure proper soldering.

2. Distorted Sound:

   • Cause: Overdriving the speaker or mismatched impedance.
   • Solution: Reduce the input power and ensure the amplifier matches the 8Ω impedance.

3. Low Volume:

   • Cause: Insufficient power from the amplifier.
   • Solution: Use an amplifier capable of delivering up to 0.5W output.

4. Overheating:

   • Cause: Exceeding the power rating.
   • Solution: Limit the input power to 0.5W or less.

Q1: Can I connect the speaker directly to a microcontroller?
A1: No, the speaker requires an amplifier circuit to function properly. Direct connection may damage the microcontroller.

Q2: What type of enclosure should I use?
A2: Use a sealed or ported enclosure designed for small speakers to enhance sound quality and protect the component.

Q3: Can I use this speaker for high-fidelity audio applications?
A3: This speaker is designed for low-power applications and may not provide high-fidelity sound. For better audio quality, consider a higher-rated speaker.

Q4: How do I clean the speaker?
A4: Use a soft, dry cloth to clean the surface. Avoid using liquids or abrasive materials.

By following this documentation, you can effectively integrate the Round Speaker 8Ω 0.5W into your projects and ensure optimal performance.
