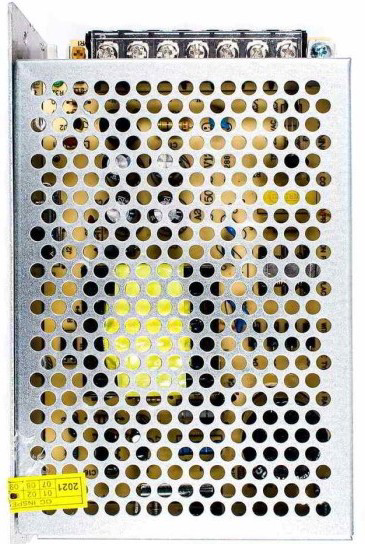

Image of SMPS PSU 12V 10A
Cirkit Designer LogoDesign with SMPS PSU 12V 10A in Cirkit Designer

Introduction

The SMPS PSU 12V 10A is a Switching Mode Power Supply designed to convert AC mains voltage into a stable DC output of 12 volts with a maximum current capacity of 10 amps. This component is highly efficient and compact, making it ideal for powering a wide range of electronic devices, including LED strips, CCTV cameras, single-board computers, and other 12V DC-powered systems. Its robust design ensures reliable performance in both industrial and hobbyist applications.

Explore Projects Built with SMPS PSU 12V 10A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
Image of Cellion-Tesla: A project utilizing SMPS PSU 12V 10A in a practical application
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
Image of Power supply: A project utilizing SMPS PSU 12V 10A in a practical application
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Industrial Power Distribution and Safety Control System
Image of Control Diagram: A project utilizing SMPS PSU 12V 10A in a practical application
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing SMPS PSU 12V 10A in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SMPS PSU 12V 10A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Cellion-Tesla: A project utilizing SMPS PSU 12V 10A in a practical application
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power supply: A project utilizing SMPS PSU 12V 10A in a practical application
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Control Diagram: A project utilizing SMPS PSU 12V 10A in a practical application
Industrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfdriver: A project utilizing SMPS PSU 12V 10A in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering LED lighting systems (e.g., LED strips, LED panels)
  • Supplying power to CCTV camera systems
  • Driving motors and actuators in robotics
  • Providing power to single-board computers like Raspberry Pi (with proper regulation)
  • General-purpose 12V DC power supply for DIY electronics projects

Technical Specifications

The following table outlines the key technical details of the SMPS PSU 12V 10A:

Parameter Specification
Input Voltage Range 100-240V AC, 50/60Hz
Output Voltage 12V DC
Maximum Output Current 10A
Output Power 120W
Efficiency ≥85%
Ripple and Noise ≤120mV
Operating Temperature -10°C to +50°C
Protection Features Overload, Overvoltage, Short Circuit

Pin Configuration and Descriptions

The SMPS PSU 12V 10A typically has the following input and output terminals:

Terminal Label Description
1 L Live AC input (connect to mains live wire)
2 N Neutral AC input (connect to mains neutral wire)
3 GND Ground (optional, for safety grounding)
4 V+ Positive DC output (12V DC)
5 V- Negative DC output (ground for the 12V DC output)

Usage Instructions

How to Use the SMPS PSU 12V 10A in a Circuit

  1. Safety First: Ensure the power supply is disconnected from the mains before wiring.
  2. Connect the Input Terminals:
    • Connect the "L" terminal to the live wire of the AC mains.
    • Connect the "N" terminal to the neutral wire of the AC mains.
    • Optionally, connect the "GND" terminal to the earth ground for safety.
  3. Connect the Output Terminals:
    • Connect the "V+" terminal to the positive input of your load.
    • Connect the "V-" terminal to the ground or negative input of your load.
  4. Power On:
    • After double-checking all connections, plug the power supply into the mains and switch it on.
    • Use a multimeter to verify the output voltage before connecting sensitive devices.

Important Considerations and Best Practices

  • Load Requirements: Ensure the total current draw of connected devices does not exceed 10A.
  • Ventilation: Place the SMPS in a well-ventilated area to prevent overheating.
  • Fuse Protection: Use an appropriate fuse on the input side for added safety.
  • Polarity: Double-check the polarity of the output connections to avoid damaging your devices.
  • Isolation: Avoid direct contact with the internal components of the SMPS while it is powered.

Example: Connecting to an Arduino UNO

The SMPS PSU 12V 10A can be used to power an Arduino UNO via a voltage regulator (e.g., LM7805) to step down the 12V to 5V. Below is an example circuit and Arduino code:

Circuit Description

  1. Connect the "V+" terminal of the SMPS to the input pin of the LM7805 regulator.
  2. Connect the "V-" terminal of the SMPS to the ground pin of the LM7805.
  3. Connect the output pin of the LM7805 to the 5V pin of the Arduino UNO.
  4. Connect the ground pin of the LM7805 to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the 5V pin using the SMPS and LM7805 regulator

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check if the SMPS is properly connected to the AC mains.
    • Verify that the mains power is switched on.
    • Inspect the fuse (if present) for continuity.
  2. Overheating:

    • Ensure the SMPS is not overloaded (current draw exceeds 10A).
    • Check for proper ventilation and avoid placing the SMPS in enclosed spaces.
  3. Voltage Fluctuations:

    • Verify that the input AC voltage is within the specified range (100-240V AC).
    • Check for loose connections on the input and output terminals.
  4. Device Not Powering On:

    • Confirm that the polarity of the output connections is correct.
    • Use a multimeter to measure the output voltage and ensure it is 12V DC.

FAQs

Q1: Can I use this SMPS to charge a 12V battery?
A1: No, this SMPS is not designed for battery charging as it lacks the necessary current regulation and charging profiles. Use a dedicated battery charger instead.

Q2: Is the SMPS waterproof?
A2: No, this SMPS is not waterproof. It should be used in dry environments or enclosed in a protective case if used outdoors.

Q3: Can I connect multiple devices to the SMPS?
A3: Yes, as long as the total current draw of all devices does not exceed 10A.

Q4: What happens if I exceed the 10A limit?
A4: The SMPS is equipped with overload protection and will shut down to prevent damage. Reduce the load and restart the power supply.

Q5: Can I use this SMPS with a 220V AC input?
A5: Yes, the SMPS supports a wide input voltage range of 100-240V AC, making it compatible with 220V AC mains.
