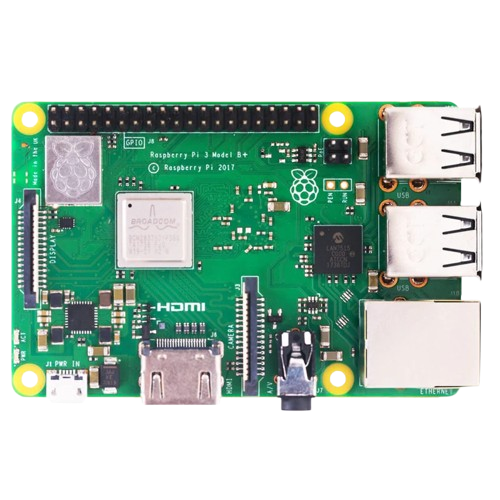

The Raspberry Pi 3B+ is a compact, affordable single-board computer designed for a wide range of applications. It features a quad-core ARM Cortex-A53 processor, multiple USB ports, HDMI output, and a 40-pin GPIO header, making it a versatile tool for DIY electronics projects, programming, and IoT applications. Its small form factor and robust performance make it ideal for hobbyists, educators, and professionals alike.
Explore Projects Built with Raspberry pi 3b+
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit integrates a Raspberry Pi 3B with various sensors and a motor driver to create a multi-functional system. It includes a DS18B20 temperature sensor, MPU-6050 accelerometer and gyroscope, QMC5883L magnetometer, and an L298N motor driver controlling two DC motors. The Raspberry Pi handles sensor data and motor control through its GPIO pins.
This circuit integrates a Raspberry Pi 3B with a DHT11 temperature and humidity sensor, a DS3231 RTC module, and a two-channel relay. The Raspberry Pi controls the relay channels and reads data from the DHT11 sensor and the RTC module via GPIO and I2C connections, respectively, enabling environmental monitoring and time-based control applications.
This circuit features a Raspberry Pi 4B as the central controller, interfacing with various sensors and modules. It includes a vl53l0xv2 time-of-flight sensor and an AS5600 magnetic encoder for position sensing, both connected via I2C (SDA/SCL lines). The circuit also controls two DRV8825 stepper motor drivers connected to NEMA 17 stepper motors, receives temperature data from a DS18B20 sensor, and communicates with a fingerprint scanner for biometric input. A TM1637 display module is included for user feedback. Power management is handled by a buck converter and a 12V power supply, with the Raspberry Pi and other 3.3V components powered through the buck converter's regulated output.
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
The Raspberry Pi 3B+ features a 40-pin GPIO header. Below is a summary of the pin configuration:
Pin Number
Pin Name
Functionality
1
3.3V Power
Power supply (3.3V)
2
5V Power
Power supply (5V)
3
GPIO2 (SDA1)
I2C Data
4
5V Power
Power supply (5V)
5
GPIO3 (SCL1)
I2C Clock
6
Ground
Ground
7
GPIO4
General-purpose I/O
8
GPIO14 (TXD0)
UART Transmit
9
Ground
Ground
10
GPIO15 (RXD0)
UART Receive
...
...
... (Refer to full GPIO diagram)
For a complete GPIO pinout, refer to the official Raspberry Pi documentation.
Usage Instructions
How to Use the Raspberry Pi 3B+
Powering the Raspberry Pi:
Use a 5V/2.5A micro-USB power supply to power the board.
Alternatively, power it via the 5V and GND pins on the GPIO header.
Connecting Peripherals:
Attach a monitor via the HDMI port.
Connect a keyboard and mouse to the USB ports.
Insert a microSD card with a pre-installed operating system (e.g., Raspberry Pi OS).
Accessing GPIO Pins:
Use the GPIO pins for interfacing with sensors, LEDs, motors, and other components.
Libraries like RPi.GPIO or gpiozero in Python can simplify GPIO programming.
Networking:
Connect to the internet via Ethernet or Wi-Fi.
Use SSH to remotely access the Raspberry Pi.
Example: Blinking an LED with GPIO
Below is an example of how to blink an LED connected to GPIO pin 17 using Python:
# Import necessary libraries
import RPi.GPIO as GPIO # Library for GPIO control
import time # Library for time delays
# Pin configuration
LED_PIN = 17 # GPIO pin where the LED is connected
# GPIO setup
GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering
GPIO.setup(LED_PIN, GPIO.OUT) # Set LED_PIN as an output pin
try:
while True:
GPIO.output(LED_PIN, GPIO.HIGH) # Turn LED on
time.sleep(1) # Wait for 1 second
GPIO.output(LED_PIN, GPIO.LOW) # Turn LED off
time.sleep(1) # Wait for 1 second
except KeyboardInterrupt:
# Clean up GPIO settings on exit
GPIO.cleanup()
Important Considerations and Best Practices
Always use a high-quality power supply to avoid voltage drops.
Avoid directly connecting high-current devices to GPIO pins; use transistors or relays.
Use resistors with LEDs to limit current and prevent damage to the GPIO pins.
Regularly update the Raspberry Pi OS for security and performance improvements.
Troubleshooting and FAQs
Common Issues and Solutions
The Raspberry Pi does not boot:
Ensure the microSD card is properly inserted and contains a valid OS image.
Check the power supply for sufficient voltage and current.
Wi-Fi connectivity issues:
Verify the Wi-Fi credentials and ensure the network is within range.
Update the Raspberry Pi OS to ensure compatibility with your router.
GPIO pins not working:
Double-check the pin numbering (BCM vs. physical pin numbers).
Ensure the GPIO pins are not damaged or shorted.
Overheating:
Use a heatsink or fan for better thermal management.
Avoid placing the Raspberry Pi in poorly ventilated enclosures.
FAQs
Q: Can I power the Raspberry Pi 3B+ via USB ports?
A: No, the USB ports are for peripherals only. Use the micro-USB port or GPIO header for power.
Q: What operating systems are compatible with the Raspberry Pi 3B+?
A: The Raspberry Pi 3B+ supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.
Q: How do I reset the Raspberry Pi?
A: Disconnect and reconnect the power supply to perform a hard reset.
Q: Can I use the Raspberry Pi 3B+ for 4K video output?
A: No, the Raspberry Pi 3B+ supports up to 1080p video output via HDMI.
By following this documentation, you can effectively utilize the Raspberry Pi 3B+ for a variety of projects and applications.
