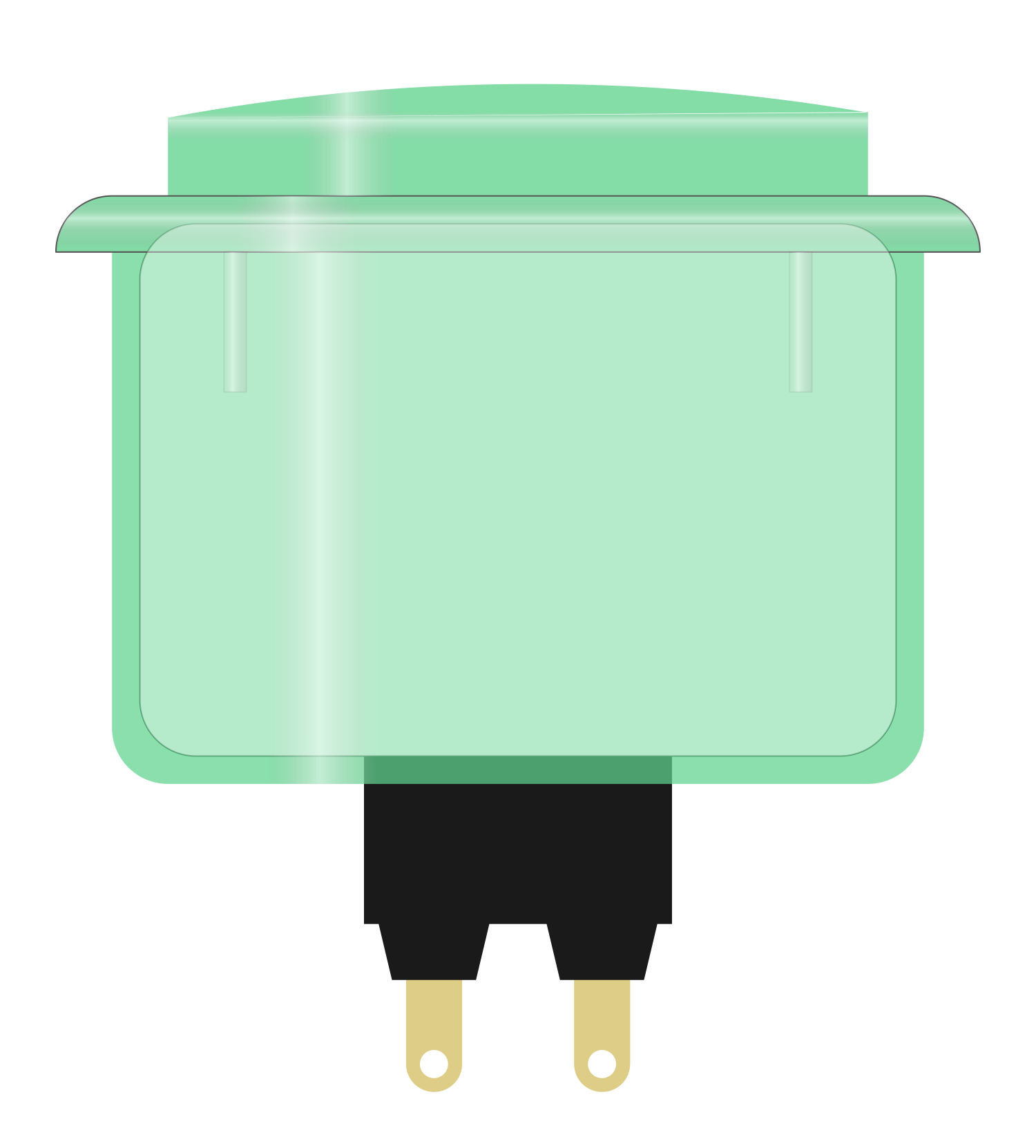

Image of Arcade Button (green)
Cirkit Designer LogoDesign with Arcade Button (green) in Cirkit Designer

Introduction

The Arcade Button (Green) is a durable push-button switch designed for high-frequency use in arcade machines, gaming consoles, and DIY electronics projects. Its bright green color ensures high visibility, while its robust construction and satisfying tactile feedback make it ideal for applications requiring repeated pressing. This button is easy to integrate into circuits and is compatible with microcontrollers like Arduino, Raspberry Pi, and other development boards.

Explore Projects Built with Arcade Button (green)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino 101 LED Control with Push Button
Image of led on off ckt4: A project utilizing Arcade Button (green) in a practical application
This circuit uses an Arduino 101 to control a green LED via a push button. When the button is pressed, the Arduino reads the input and turns on the LED; when the button is released, the LED turns off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Battery-Powered RF Transmitter with Arcade Button
Image of remoterf: A project utilizing Arcade Button (green) in a practical application
This circuit consists of an Arduino Nano microcontroller connected to an RF transmitter module and a green arcade button. The Arduino Nano is powered by a 18650 Li-ion battery and controls the RF module to transmit data when the arcade button is pressed.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Interactive Game with RGB LEDs, LCD Display, and DFPlayer Audio
Image of Game: A project utilizing Arcade Button (green) in a practical application
This circuit is a game controller that uses an Arduino Mega 2560 to manage inputs from multiple arcade buttons, control RGB LEDs, display messages on an LCD, and play audio through a DFPlayer module. The system announces the winner based on button presses, lights up the corresponding RGB LED, and displays the winner's name on the LCD.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled RGB LED Strip with Interactive Button
Image of Simon Circuit: A project utilizing Arcade Button (green) in a practical application
This circuit features an Arduino UNO connected to a WS2812 RGB LED strip, controlled via digital pin D8. An arcade button is interfaced with the Arduino through a resistor and digital pin D3, likely for user input to control the LED strip. Power is supplied through a 2.1mm DC barrel jack, with an electrolytic capacitor for voltage smoothing, and the ground connections are shared among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arcade Button (green)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of led on off ckt4: A project utilizing Arcade Button (green) in a practical application
Arduino 101 LED Control with Push Button
This circuit uses an Arduino 101 to control a green LED via a push button. When the button is pressed, the Arduino reads the input and turns on the LED; when the button is released, the LED turns off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of remoterf: A project utilizing Arcade Button (green) in a practical application
Arduino Nano Battery-Powered RF Transmitter with Arcade Button
This circuit consists of an Arduino Nano microcontroller connected to an RF transmitter module and a green arcade button. The Arduino Nano is powered by a 18650 Li-ion battery and controls the RF module to transmit data when the arcade button is pressed.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Game: A project utilizing Arcade Button (green) in a practical application
Arduino Mega 2560-Based Interactive Game with RGB LEDs, LCD Display, and DFPlayer Audio
This circuit is a game controller that uses an Arduino Mega 2560 to manage inputs from multiple arcade buttons, control RGB LEDs, display messages on an LCD, and play audio through a DFPlayer module. The system announces the winner based on button presses, lights up the corresponding RGB LED, and displays the winner's name on the LCD.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Simon Circuit: A project utilizing Arcade Button (green) in a practical application
Arduino UNO Controlled RGB LED Strip with Interactive Button
This circuit features an Arduino UNO connected to a WS2812 RGB LED strip, controlled via digital pin D8. An arcade button is interfaced with the Arduino through a resistor and digital pin D3, likely for user input to control the LED strip. Power is supplied through a 2.1mm DC barrel jack, with an electrolytic capacitor for voltage smoothing, and the ground connections are shared among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Arcade gaming machines
  • DIY gaming controllers
  • Interactive kiosks
  • Custom electronics projects
  • Educational prototyping

Technical Specifications

The Arcade Button (Green) is a simple, momentary push-button switch. Below are its key technical details:

Parameter Specification
Button Type Momentary push-button
Color Green
Operating Voltage 3.3V to 12V
Maximum Current 1A
Contact Resistance ≤ 50 mΩ
Insulation Resistance ≥ 100 MΩ
Actuation Force ~150g
Mounting Hole Diameter 24mm
Terminal Type Solder or quick-connect terminals
Lifespan ≥ 1,000,000 presses

Pin Configuration and Descriptions

The Arcade Button (Green) typically has two terminals for connection:

Pin Description
NO Normally Open terminal: Connects to the circuit when the button is pressed.
COM Common terminal: Connects to the ground or power source, depending on the circuit design.

Usage Instructions

How to Use the Arcade Button in a Circuit

  1. Wiring the Button:

    • Connect the COM terminal to the ground (GND) of your circuit.
    • Connect the NO terminal to the input pin of your microcontroller or to the positive voltage rail, depending on your circuit design.
  2. Pull-Up or Pull-Down Resistor:

    • Use a pull-up or pull-down resistor to ensure a stable signal when the button is not pressed. For example:
      • Pull-up: Connect a 10kΩ resistor between the input pin and the positive voltage rail.
      • Pull-down: Connect a 10kΩ resistor between the input pin and ground.
  3. Testing the Button:

    • When the button is pressed, the circuit will close, and the input pin will detect a HIGH or LOW signal, depending on your configuration.

Example: Connecting to an Arduino UNO

Below is an example of how to connect and use the Arcade Button (Green) with an Arduino UNO:

Circuit Diagram:

  • COM terminal → GND on Arduino
  • NO terminal → Digital Pin 2 on Arduino (with a pull-up resistor)

Arduino Code:

// Arcade Button Example Code for Arduino UNO
// This code reads the state of the button and turns on an LED when pressed.

const int buttonPin = 2;  // Pin connected to the NO terminal of the button
const int ledPin = 13;    // Pin connected to the built-in LED on Arduino

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); // Set button pin as input with internal pull-up resistor
  pinMode(ledPin, OUTPUT);          // Set LED pin as output
}

void loop() {
  int buttonState = digitalRead(buttonPin); // Read the button state

  if (buttonState == LOW) { // Button is pressed (LOW due to pull-up resistor)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Important Considerations:

  • Ensure the button is securely mounted in a 24mm diameter hole for proper operation.
  • Avoid exceeding the maximum current rating (1A) to prevent damage.
  • Use appropriate resistors to stabilize the signal and avoid floating inputs.

Troubleshooting and FAQs

Common Issues and Solutions:

  1. Button Not Responding:

    • Cause: Loose or incorrect wiring.
    • Solution: Double-check the connections to the COM and NO terminals. Ensure the button is properly connected to the circuit.
  2. Button Signal is Unstable:

    • Cause: Missing pull-up or pull-down resistor.
    • Solution: Add a 10kΩ pull-up or pull-down resistor to stabilize the signal.
  3. Button Feels Stiff or Unresponsive:

    • Cause: Dirt or debris inside the button mechanism.
    • Solution: Clean the button with compressed air or a soft brush. Avoid using liquids.
  4. Button Works Intermittently:

    • Cause: Worn-out contacts or excessive use.
    • Solution: Replace the button if it has exceeded its lifespan (≥ 1,000,000 presses).

FAQs:

Q: Can I use the Arcade Button with a 5V power supply?
A: Yes, the button operates within a voltage range of 3.3V to 12V, making it compatible with 5V systems.

Q: Is the button waterproof?
A: No, the Arcade Button (Green) is not waterproof. Avoid exposing it to moisture or liquids.

Q: Can I use this button for high-power applications?
A: No, the button is rated for a maximum current of 1A. For high-power applications, use a relay or transistor to handle the load.

Q: How do I mount the button securely?
A: The button is designed to fit into a 24mm diameter hole. Use the included mounting nut to secure it in place.

By following this documentation, you can effectively integrate the Arcade Button (Green) into your projects and troubleshoot any issues that arise.
