How to Use esp32 U: Examples, Pinouts, and Specs

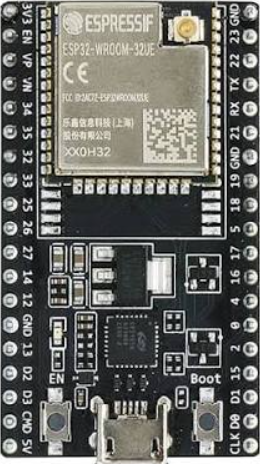

Image of esp32 U
Cirkit Designer LogoDesign with esp32 U in Cirkit Designer

Introduction

The ESP32 U, manufactured by Espressif Systems, is a highly versatile microcontroller designed for Internet of Things (IoT) applications. It combines robust processing power with integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for smart devices, home automation, and industrial IoT projects. With its dual-core processor, extensive GPIO options, and support for multiple communication protocols, the ESP32 U is a go-to solution for developers seeking a compact yet powerful platform.

Explore Projects Built with esp32 U

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing esp32 U in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Data Logger with GPS and RF Communication
Image of Sat: A project utilizing esp32 U in a practical application
This circuit features an ESP32-WROOM-32UE microcontroller as its central processing unit, interfaced with a variety of sensors including a BMP280 barometric pressure sensor, an Adafruit VEML6075 UV sensor, an ENS160+AHT21 air quality sensor, and a GPS NEO 6M module for location tracking. The ESP32 logs data from these sensors to an SD card using a SparkFun OpenLog and also communicates with an RFM95 LoRa transceiver for wireless data transmission. A step-up boost converter raises the voltage from a 3.7V battery to 5V to power the ESP32-CAM, and a buzzer is included for audio signaling, all controlled by the ESP32 which runs a sketch to read sensor data and log it periodically.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
Image of circuit diagram: A project utilizing esp32 U in a practical application
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing esp32 U in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32 U

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MVP_design: A project utilizing esp32 U in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Sat: A project utilizing esp32 U in a practical application
ESP32-Based Environmental Data Logger with GPS and RF Communication
This circuit features an ESP32-WROOM-32UE microcontroller as its central processing unit, interfaced with a variety of sensors including a BMP280 barometric pressure sensor, an Adafruit VEML6075 UV sensor, an ENS160+AHT21 air quality sensor, and a GPS NEO 6M module for location tracking. The ESP32 logs data from these sensors to an SD card using a SparkFun OpenLog and also communicates with an RFM95 LoRa transceiver for wireless data transmission. A step-up boost converter raises the voltage from a 3.7V battery to 5V to power the ESP32-CAM, and a buzzer is included for audio signaling, all controlled by the ESP32 which runs a sketch to read sensor data and log it periodically.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit diagram: A project utilizing esp32 U in a practical application
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps projekt circuit: A project utilizing esp32 U in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Smart home devices (e.g., smart lights, thermostats)
  • Industrial IoT systems
  • Wearable technology
  • Wireless sensor networks
  • Robotics and automation
  • Prototyping and educational projects

Technical Specifications

The ESP32 U is packed with features that make it suitable for a wide range of applications. Below are its key technical specifications:

Parameter Value
Manufacturer Espressif Systems
Part ID ESP32 U
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (external flash support available)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2 + BLE
GPIO Pins 34 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART, etc.)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Operating Voltage 3.3V
Power Consumption Ultra-low power consumption in deep sleep mode (as low as 10 µA)
Operating Temperature -40°C to +85°C
Dimensions Compact form factor (18 mm x 25.5 mm)

Pin Configuration

The ESP32 U features a variety of pins for different functionalities. Below is a summary of the pin configuration:

Pin Name Function Description
GPIO0 Input/Output, Boot Mode Select Used for boot mode selection during startup.
GPIO1 (TXD0) UART TX UART0 transmit pin.
GPIO3 (RXD0) UART RX UART0 receive pin.
GPIO12-15 SPI SPI interface pins (MISO, MOSI, SCK, CS).
GPIO21 I2C SDA Data line for I2C communication.
GPIO22 I2C SCL Clock line for I2C communication.
GPIO25-26 DAC Digital-to-Analog Converter output pins.
GPIO32-39 ADC Analog-to-Digital Converter input pins.
EN Enable Chip enable pin. Active high.
GND Ground Ground connection.
3V3 Power 3.3V power supply input.

Usage Instructions

The ESP32 U is straightforward to use in a variety of applications. Below are the steps and best practices for integrating it into your project.

Basic Circuit Setup

  1. Power Supply: Connect the 3V3 pin to a stable 3.3V power source and GND to ground.
  2. Programming: Use a USB-to-serial adapter to connect the ESP32 U to your computer. Connect:
    • TXD0 (GPIO1) to the RX pin of the adapter.
    • RXD0 (GPIO3) to the TX pin of the adapter.
    • GND to the adapter's ground.
  3. Boot Mode: To upload code, hold the GPIO0 pin low while resetting the module.
  4. Peripherals: Connect sensors, actuators, or other peripherals to the GPIO pins as needed.

Example: Blinking an LED with Arduino IDE

The ESP32 U is compatible with the Arduino IDE, making it easy to program. Below is an example of how to blink an LED connected to GPIO2.

// Include the Arduino framework for ESP32
void setup() {
  pinMode(2, OUTPUT); // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(2, HIGH); // Turn the LED on
  delay(1000);           // Wait for 1 second
  digitalWrite(2, LOW);  // Turn the LED off
  delay(1000);           // Wait for 1 second
}

Best Practices

  • Use a level shifter if interfacing with 5V logic devices, as the ESP32 U operates at 3.3V.
  • Avoid exceeding the maximum current rating of GPIO pins (12 mA per pin).
  • Use decoupling capacitors near the power pins to ensure stable operation.
  • For wireless applications, ensure the antenna area is free from obstructions.

Troubleshooting and FAQs

Common Issues

  1. ESP32 U Not Responding to Code Uploads

    • Cause: Incorrect boot mode or wiring.
    • Solution: Ensure GPIO0 is held low during reset for programming mode.
  2. Wi-Fi Connection Fails

    • Cause: Incorrect SSID or password.
    • Solution: Double-check the credentials in your code. Ensure the router is within range.
  3. Random Resets or Instability

    • Cause: Insufficient power supply.
    • Solution: Use a stable 3.3V power source capable of supplying at least 500 mA.
  4. GPIO Pin Not Working

    • Cause: Pin conflict or incorrect configuration.
    • Solution: Verify the pin's function and ensure it is not being used for another purpose.

FAQs

Q: Can the ESP32 U be powered by a 5V source?
A: No, the ESP32 U requires a 3.3V power supply. Use a voltage regulator if your source is 5V.

Q: How do I reset the ESP32 U?
A: Pull the EN pin low momentarily to reset the module.

Q: Does the ESP32 U support OTA (Over-the-Air) updates?
A: Yes, the ESP32 U supports OTA updates, allowing you to upload firmware wirelessly.

Q: Can I use the ESP32 U for battery-powered applications?
A: Yes, the ESP32 U is suitable for battery-powered projects due to its ultra-low power modes.

By following this documentation, you can effectively integrate the ESP32 U into your projects and troubleshoot common issues with ease.
