How to Use Battery lithium 18650 12V: Examples, Pinouts, and Specs

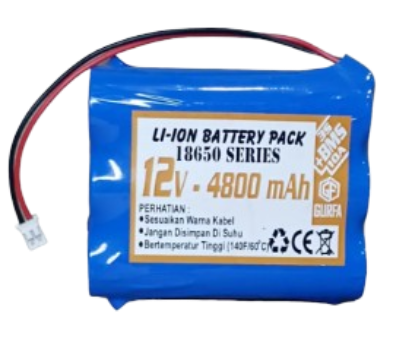

The Battery Lithium 18650 12V is a rechargeable lithium-ion battery pack with a nominal voltage of 12V. It is composed of multiple 18650 cells connected in series and/or parallel to achieve the desired voltage and capacity. Known for its high energy density, long cycle life, and lightweight design, this battery is widely used in portable electronics, electric vehicles, power tools, and renewable energy storage systems.

• Portable electronic devices (e.g., laptops, cameras, and drones)
• Electric vehicles and e-bikes
• Solar energy storage systems
• Power tools and robotics
• Backup power supplies and uninterruptible power systems (UPS)

Below are the key technical details of the Battery Lithium 18650 12V:

The Battery Lithium 18650 12V typically has three main terminals:

Note: Some 18650 12V battery packs include a built-in Battery Management System (BMS) for overcharge, over-discharge, and short-circuit protection.

1. Connect the Terminals Properly: Ensure the positive terminal (+) is connected to the positive input of your circuit, and the negative terminal (-) is connected to the ground or negative input.
2. Use a Compatible Charger: Always use a lithium-ion battery charger with a maximum output voltage of 12.6V to charge the battery safely.
3. Monitor Voltage Levels: Avoid discharging the battery below its cutoff voltage (9V) to prevent damage and reduce cycle life.
4. Incorporate a BMS: If the battery pack does not include a built-in BMS, consider adding one to protect against overcharging, over-discharging, and short circuits.

• Avoid Overcharging: Overcharging can lead to overheating, reduced lifespan, or even safety hazards. Always use a charger with overcharge protection.
• Prevent Deep Discharge: Discharging below the cutoff voltage can permanently damage the battery.
• Temperature Management: Operate the battery within the specified temperature range (-20°C to 60°C) to ensure optimal performance and safety.
• Storage: Store the battery in a cool, dry place at around 50% charge for long-term storage.
• Parallel/Series Connections: When connecting multiple batteries in series or parallel, ensure they are of the same capacity, voltage, and charge level to avoid imbalances.

The Battery Lithium 18650 12V can be used to power an Arduino UNO via its VIN pin. Below is an example circuit and code to monitor the battery voltage using an analog input pin.

1. Connect the positive terminal of the battery to the VIN pin of the Arduino.
2. Connect the negative terminal of the battery to the GND pin of the Arduino.
3. Use a voltage divider circuit (e.g., 10kΩ and 10kΩ resistors) to step down the battery voltage for safe measurement on the Arduino's analog pin.

// Define the analog pin for voltage measurement
const int voltagePin = A0;

// Define the voltage divider ratio (e.g., 10kΩ and 10kΩ resistors)
const float voltageDividerRatio = 2.0;

// Define the reference voltage of the Arduino (5V for most boards)
const float referenceVoltage = 5.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the voltage divider
  int analogValue = analogRead(voltagePin);

  // Convert the analog value to the actual battery voltage
  float batteryVoltage = (analogValue * referenceVoltage / 1023.0) * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Warning: Ensure the voltage divider reduces the battery voltage to a safe level (below 5V) for the Arduino's analog input.

1. Battery Not Charging

   • Cause: Faulty charger or damaged battery.
   • Solution: Verify the charger output voltage and current. Replace the charger or battery if necessary.

2. Battery Drains Quickly

   • Cause: Over-discharge, aging cells, or excessive load.
   • Solution: Avoid deep discharges and replace the battery if its capacity has significantly degraded.

3. Battery Overheats

   • Cause: Overcharging, high discharge current, or poor ventilation.
   • Solution: Use a charger with overcharge protection and ensure proper ventilation during operation.

4. Voltage Readings Are Inaccurate

   • Cause: Incorrect voltage divider ratio or loose connections.
   • Solution: Double-check the resistor values and ensure all connections are secure.

• Q: Can I use this battery to power a 12V DC motor?

  • A: Yes, but ensure the motor's current draw does not exceed the battery's maximum discharge current.

• Q: How do I know when the battery is fully charged?

  • A: The battery is fully charged when the voltage reaches 12.6V.

• Q: Can I connect multiple 18650 12V batteries in parallel?

  • A: Yes, but ensure all batteries have the same voltage and capacity to avoid imbalances.

• Q: Is it safe to leave the battery connected to the charger?

  • A: Only if the charger has overcharge protection. Otherwise, disconnect the battery once fully charged.
