How to Use Green LED: Examples, Pinouts, and Specs

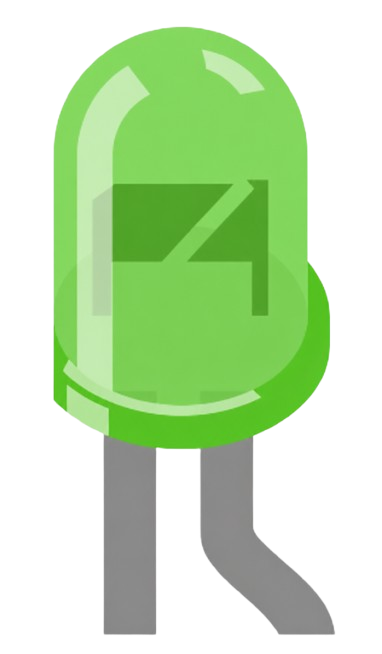

Image of Green LED
Cirkit Designer LogoDesign with Green LED in Cirkit Designer

Introduction

A Green LED (Light-Emitting Diode) is a semiconductor device that emits green light when an electric current flows through it. It is widely used in electronic circuits as an indicator, status light, or part of a display system. Green LEDs are energy-efficient, long-lasting, and available in various sizes and brightness levels, making them suitable for a wide range of applications.

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing Green LED in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing Green LED in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor with LED Indicator
Image of ir home automation: A project utilizing Green LED in a practical application
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO LED Blinker with Resistor
Image of blink_led_uno: A project utilizing Green LED in a practical application
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Panel : A project utilizing Green LED in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yk: A project utilizing Green LED in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir home automation: A project utilizing Green LED in a practical application
Battery-Powered IR Sensor with LED Indicator
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blink_led_uno: A project utilizing Green LED in a practical application
Arduino UNO LED Blinker with Resistor
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power and status indicators in electronic devices
  • Signal lights in control panels
  • Decorative lighting and displays
  • Visual feedback in embedded systems
  • Educational and DIY electronics projects

Technical Specifications

Key Specifications

Parameter Value
Forward Voltage (Vf) 2.0V to 3.2V
Forward Current (If) 10mA to 20mA (typical)
Maximum Current (Imax) 30mA
Wavelength 520nm to 570nm (green light)
Viewing Angle 20° to 60° (varies by model)
Power Dissipation 75mW (typical)
Polarity Anode (+), Cathode (-)

Pin Configuration

Pin Name Description
Anode Positive terminal (longer leg)
Cathode Negative terminal (shorter leg)

Usage Instructions

How to Use a Green LED in a Circuit

  1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. Calculate the resistor value using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED
    • (I_f): Desired forward current (e.g., 20mA)

    For example, if (V_{supply} = 5V), (V_f = 2.2V), and (I_f = 20mA): [ R = \frac{5V - 2.2V}{0.02A} = 140\Omega ] Use the nearest standard resistor value (e.g., 150Ω).

  2. Connect the LED:

    • Connect the anode (longer leg) to the positive side of the power supply through the resistor.
    • Connect the cathode (shorter leg) to the ground.
  3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit green light when current flows through it.

Important Considerations

  • Polarity: LEDs are polarized components. Reversing the polarity may damage the LED.
  • Current Limiting: Always use a resistor to limit the current and prevent overheating.
  • Brightness Control: Use a PWM (Pulse Width Modulation) signal to adjust the brightness of the LED.
  • Series and Parallel Connections: When using multiple LEDs, calculate the resistor values for each configuration.

Example: Connecting a Green LED to an Arduino UNO

Below is an example of how to connect and control a Green LED using an Arduino UNO:

Circuit Setup

  • Connect the anode of the LED to a digital pin (e.g., pin 9) through a 220Ω resistor.
  • Connect the cathode to the GND pin of the Arduino.

Arduino Code

// Define the pin connected to the LED
const int ledPin = 9;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Check the polarity of the LED. Ensure the anode is connected to the positive voltage and the cathode to ground.
    • Verify the resistor value. A resistor with too high a value may prevent sufficient current flow.
    • Ensure the power supply voltage is adequate for the LED's forward voltage.
  2. LED is Too Dim:

    • Check the resistor value. A lower resistance may increase brightness but ensure it does not exceed the maximum current rating.
    • Verify the power supply voltage.
  3. LED Burns Out Quickly:

    • Ensure a current-limiting resistor is used.
    • Verify that the current does not exceed the LED's maximum rating.
  4. Flickering LED:

    • Check for loose connections in the circuit.
    • If using PWM for brightness control, ensure the frequency is appropriate.

FAQs

Q: Can I connect a Green LED directly to a 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: How do I calculate the resistor value for multiple LEDs in series?
A: Add the forward voltages of all LEDs in the series and subtract the total from the supply voltage. Use the result to calculate the resistor value using Ohm's Law.

Q: Can I use a Green LED with a 3.3V microcontroller?
A: Yes, as long as the forward voltage of the LED is less than 3.3V and a suitable resistor is used to limit the current.

Q: How do I adjust the brightness of a Green LED?
A: Use a PWM signal from a microcontroller (e.g., Arduino) to control the brightness by varying the duty cycle.
