How to Use Terminal PCB 2 Pin: Examples, Pinouts, and Specs

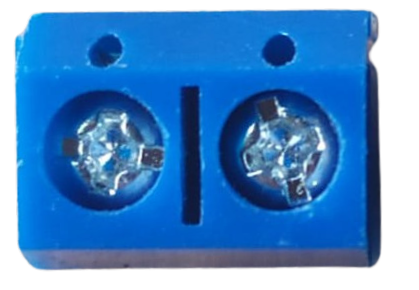

The Terminal PCB 2 Pin is a compact and reliable two-pin terminal block designed for printed circuit boards (PCBs). It provides a secure and convenient way to connect wires to a PCB, allowing for easy disconnection and reconnection when needed. This component is widely used in applications requiring modularity, such as prototyping, industrial control systems, and power distribution circuits.

• Power supply connections in PCB designs
• Signal wiring in industrial control systems
• Prototyping and testing circuits
• Modular PCB designs requiring frequent wire disconnection
• Home automation and IoT devices

The following table outlines the key technical specifications of the Terminal PCB 2 Pin:

The Terminal PCB 2 Pin has two pins for electrical connections. The table below describes the pin configuration:

1. Soldering the Terminal Block:

   • Insert the two pins of the terminal block into the corresponding through-hole pads on the PCB.
   • Ensure the terminal block is oriented correctly, with the wire entry points accessible.
   • Solder the pins securely to the PCB pads, ensuring no cold solder joints.

2. Connecting Wires:

   • Strip the insulation from the wire ends (approximately 5-7 mm).
   • Insert the stripped wire ends into the terminal block's wire entry points.
   • Tighten the screws on the terminal block to secure the wires firmly.

3. Testing the Connection:

   • Verify the electrical connection using a multimeter to ensure proper continuity.
   • Avoid overtightening the screws, as this may damage the wires or the terminal block.

• Ensure the wire gauge is within the supported range (26-12 AWG) for a secure connection.
• Avoid exceeding the rated voltage (300V) and current (10A) to prevent overheating or damage.
• Use a proper screwdriver to tighten the screws without stripping them.
• For high-vibration environments, consider using additional securing mechanisms to prevent wire loosening.
• When designing the PCB, ensure the pin spacing (5.08 mm) matches the terminal block's pitch.

The Terminal PCB 2 Pin can be used to connect external power supplies or sensors to an Arduino UNO. Below is an example of how to use it for powering an Arduino UNO:

1. Connect the positive wire from a 9V DC power supply to Pin 1 of the terminal block.
2. Connect the negative wire from the power supply to Pin 2 of the terminal block.
3. Solder the terminal block to the PCB, ensuring the pins are connected to the Arduino's VIN and GND pins.

// Example code for powering an Arduino UNO with an external power supply
// Ensure the terminal block is securely connected to the VIN and GND pins.

void setup() {
  // No setup required for power connection
}

void loop() {
  // Your main code here
}

1. Loose Wire Connections:

   • Cause: Wires not properly secured in the terminal block.
   • Solution: Ensure the screws are tightened firmly, but avoid overtightening.

2. Cold Solder Joints:

   • Cause: Insufficient heat or solder during the soldering process.
   • Solution: Reheat the joint and apply sufficient solder for a solid connection.

3. Overheating of the Terminal Block:

   • Cause: Exceeding the rated current or voltage.
   • Solution: Verify the circuit's current and voltage requirements and ensure they are within the terminal block's specifications.

4. Wire Slippage:

   • Cause: Incorrect wire gauge or improper tightening.
   • Solution: Use wires within the supported gauge range (26-12 AWG) and tighten the screws properly.

Q1: Can I use the Terminal PCB 2 Pin for AC connections?
A1: Yes, the terminal block can handle AC connections as long as the voltage and current do not exceed the rated values (300V, 10A).

Q2: Is the Terminal PCB 2 Pin reusable?
A2: Yes, the terminal block can be reused, but ensure the screws and contacts are not damaged during repeated use.

Q3: Can I use this terminal block in high-temperature environments?
A3: The terminal block is rated for operating temperatures between -40°C and +105°C. Ensure your application stays within this range.

Q4: What tools are required to use this component?
A4: You will need a soldering iron, solder, a wire stripper, and a small screwdriver for tightening the screws.

By following this documentation, you can effectively integrate the Terminal PCB 2 Pin into your electronic projects for secure and reliable wire connections.
