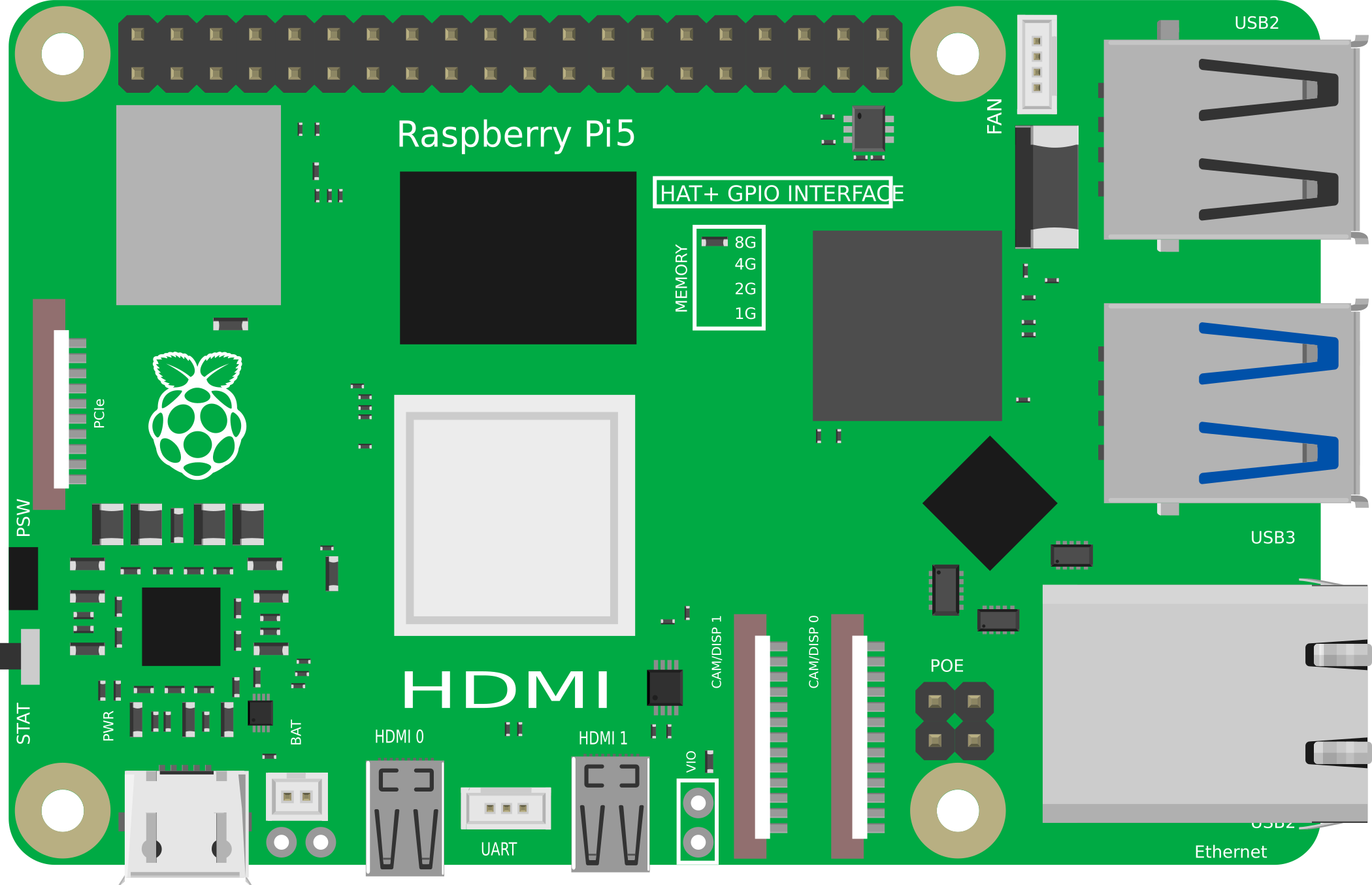

The Raspberry Pi 5, manufactured by Raspberry, is a compact and affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, enhanced graphics capabilities, and multiple connectivity options. This versatile device is ideal for learning programming, building IoT (Internet of Things) devices, creating media centers, and prototyping embedded systems.

• Learning and Education: Perfect for teaching programming languages like Python, Java, and C++.
• IoT Projects: Acts as a hub for smart home devices or industrial IoT systems.
• Media Centers: Can be used to build a home theater PC (HTPC) with software like Kodi.
• Robotics: Powers robots with its GPIO pins and processing capabilities.
• Prototyping: Ideal for testing and developing embedded systems.
• Edge Computing: Suitable for lightweight AI and machine learning tasks.

The Raspberry Pi 5 offers significant improvements over its predecessors, making it a powerful tool for various applications.

The Raspberry Pi 5 features a 40-pin GPIO header, which is backward-compatible with earlier models. Below is the pinout configuration:

For a complete GPIO pinout diagram, refer to the official Raspberry Pi documentation.

1. Powering the Raspberry Pi 5:

   • Use a USB-C power adapter that provides 5V and at least 5A.
   • Ensure the power supply is stable to avoid performance issues.

2. Connecting Peripherals:

   • Attach a micro-HDMI cable to connect the Raspberry Pi to a monitor.
   • Connect a USB keyboard and mouse to the USB ports.
   • Insert a microSD card with the Raspberry Pi OS installed into the microSD slot.

3. Using GPIO Pins:

   • Use the GPIO pins for interfacing with sensors, LEDs, motors, and other components.
   • Be cautious about voltage levels; GPIO pins operate at 3.3V logic.

4. Networking:

   • Connect to the internet via Wi-Fi 6 or Gigabit Ethernet for faster data transfer.

• Heat Management: The Raspberry Pi 5 can get warm under heavy loads. Use a heatsink or fan for cooling.
• Static Electricity: Handle the board carefully to avoid damage from static discharge.
• Software Updates: Regularly update the Raspberry Pi OS to ensure security and compatibility.
• Power Supply: Avoid using low-quality power adapters, as they may cause instability.

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

import RPi.GPIO as GPIO # Library for GPIO control import time # Library for adding delays

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO pin 17 as an output

try: while True: GPIO.output(17, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings when the program is interrupted GPIO.cleanup()

**Note**: Connect the LED's anode (long leg) to GPIO pin 17 and the cathode (short leg) to a resistor (e.g., 330 ohms), then to a ground pin.

1. The Raspberry Pi 5 does not boot:

   • Ensure the microSD card is properly inserted and contains a valid OS image.
   • Check the power supply for sufficient voltage and current.

2. Wi-Fi connectivity issues:

   • Verify the Wi-Fi credentials and ensure the router is within range.
   • Update the Raspberry Pi OS to the latest version.

3. Overheating:

   • Use a heatsink or fan to improve cooling.
   • Avoid placing the Raspberry Pi in an enclosed space without ventilation.

4. GPIO pins not working:

   • Double-check the pin connections and ensure the correct pin numbering is used in the code.
   • Verify that no short circuits are present.

• Can I use the Raspberry Pi 5 with older Raspberry Pi accessories?

  • Yes, most accessories like cases, power supplies, and HATs are compatible, but verify specifications before use.

• What operating systems are supported?

  • The Raspberry Pi 5 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

• Can I power the Raspberry Pi 5 via GPIO pins?

  • Yes, you can supply 5V to the 5V GPIO pins, but this bypasses the onboard power management, so proceed with caution.

• Does the Raspberry Pi 5 support 64-bit applications?

  • Yes, the quad-core ARM Cortex-A76 processor supports 64-bit applications and operating systems.

For additional support, visit the official Raspberry Pi forums or documentation.
