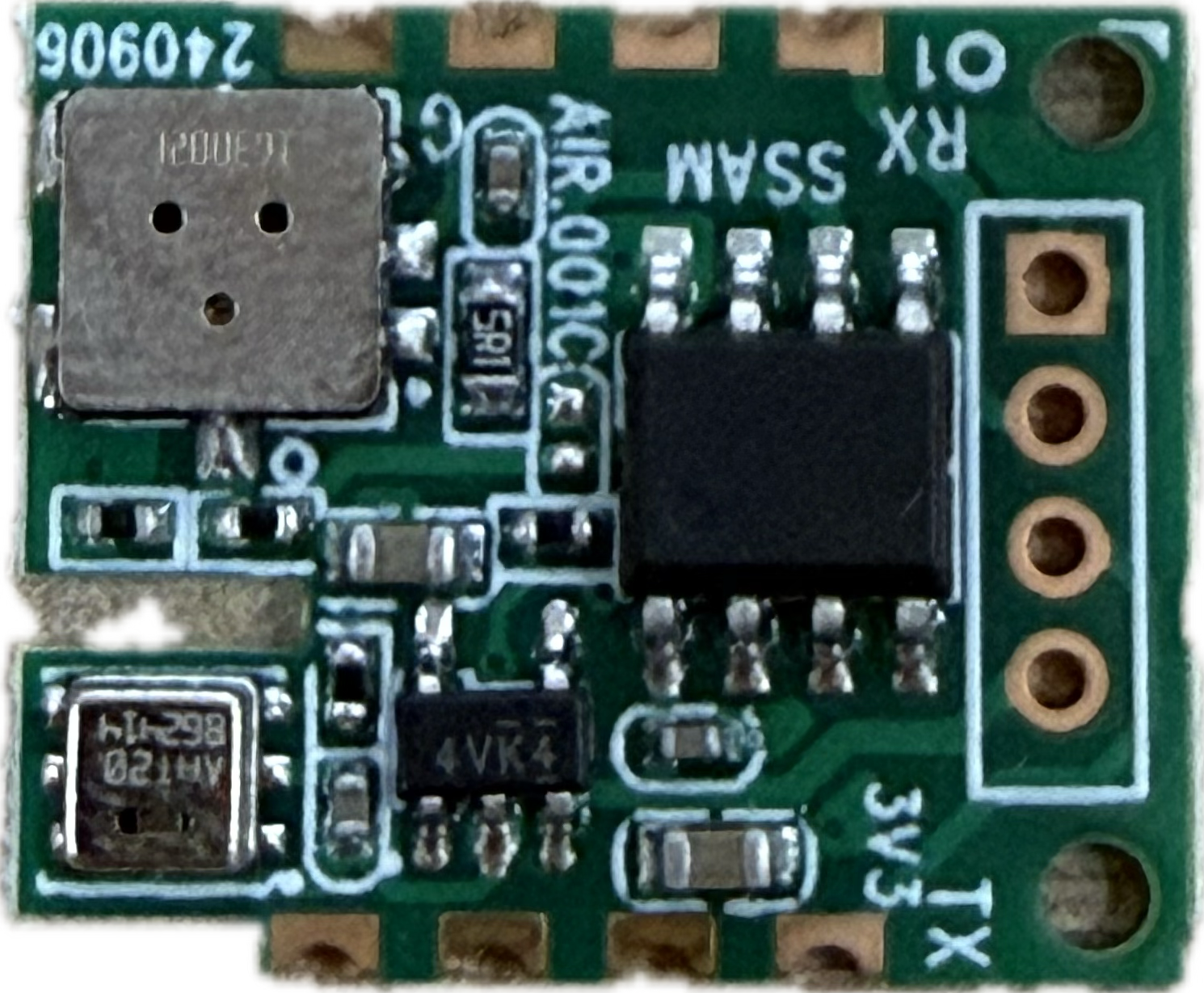

The SSAM TVOC is a high-performance sensor designed to detect and measure total volatile organic compounds (TVOCs) in the air. It provides accurate and reliable data for air quality monitoring and environmental assessments. This sensor is ideal for applications such as indoor air quality monitoring, HVAC systems, smart home devices, and industrial safety systems. Its compact design and ease of integration make it suitable for a wide range of projects, from DIY electronics to professional-grade systems.
Explore Projects Built with SSAM TVOC
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an ESP32 microcontroller interfaced with a 0.96" OLED display and an ME2-CO carbon monoxide sensor. The ESP32 reads data from the CO sensor and displays the information on the OLED screen, providing a compact solution for monitoring CO levels.
This IoT indoor air quality monitoring circuit uses an ESP32 microcontroller to read data from a DHT22 temperature and humidity sensor, an MQ-7 carbon monoxide sensor, and a PM2.5 air quality sensor. The collected data is displayed on a 128x64 OLED display, and an RGB LED and PWM fan are controlled based on the air quality readings to indicate and manage air quality levels.
This circuit is an environmental monitoring system that uses an ESP32 microcontroller to collect data from various sensors, including gas sensors (MQ-135, MQ-136), a humidity and temperature sensor (DHT11), a VOC and NOx sensor (SGP41), and a color sensor (TCS230). The collected data is displayed on an OLED screen and can be transmitted via Bluetooth, with the ESP32 also handling RF signal decoding and transmission.
This circuit features an Arduino Nano microcontroller interfaced with an Adafruit SGP30 air quality sensor, an Adafruit SHTC3 temperature and humidity sensor, and a 0.96" OLED display for real-time environmental monitoring. The sensors communicate with the Arduino via I2C, with the SGP30 and SHTC3 sensors providing air quality readings (CO2 and TVOC) and temperature/humidity data, respectively, which are then displayed on the OLED. Additionally, a buzzer is connected to the Arduino and is programmed to activate when CO2 levels exceed a certain threshold, serving as an alert system.
The SSAM TVOC sensor is engineered for precision and ease of use. Below are its key technical details:
Key Specifications
Parameter
Value
Supply Voltage
3.3V to 5V
Operating Current
10 mA (typical)
Measurement Range
0 to 60,000 ppb (parts per billion)
Response Time
< 1 second
Communication Interface
I2C
Operating Temperature
-10°C to 50°C
Operating Humidity
10% to 90% RH (non-condensing)
Dimensions
20mm x 15mm x 5mm
Pin Configuration
The SSAM TVOC sensor has a 4-pin interface for easy integration into your circuit. Below is the pinout description:
Pin Number
Pin Name
Description
1
VCC
Power supply input (3.3V to 5V)
2
GND
Ground connection
3
SDA
I2C data line
4
SCL
I2C clock line
Usage Instructions
To use the SSAM TVOC sensor in a circuit, follow these steps:
Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
Connect to a Microcontroller: Use the SDA and SCL pins to connect the sensor to the I2C interface of your microcontroller (e.g., Arduino UNO).
Install Required Libraries: If using an Arduino, install an I2C communication library (e.g., Wire.h) and any specific library provided by the manufacturer for the SSAM TVOC sensor.
Write Code: Use the I2C interface to read TVOC data from the sensor. Below is an example Arduino code snippet:
#include <Wire.h>
// I2C address of the SSAM TVOC sensor
#define SSAM_TVOC_ADDR 0x5A
void setup() {
Wire.begin(); // Initialize I2C communication
Serial.begin(9600); // Start serial communication for debugging
Serial.println("Initializing SSAM TVOC sensor...");
}
void loop() {
Wire.beginTransmission(SSAM_TVOC_ADDR); // Start communication with the sensor
Wire.write(0x00); // Command to request TVOC data (check datasheet for details)
Wire.endTransmission();
Wire.requestFrom(SSAM_TVOC_ADDR, 2); // Request 2 bytes of data (TVOC value)
if (Wire.available() == 2) {
uint16_t tvoc = Wire.read() << 8 | Wire.read(); // Combine two bytes into a 16-bit value
Serial.print("TVOC Level: ");
Serial.print(tvoc);
Serial.println(" ppb");
} else {
Serial.println("Error: No data received from SSAM TVOC sensor.");
}
delay(1000); // Wait 1 second before the next reading
}
Important Considerations
Ensure the sensor is operated within its specified temperature and humidity range for accurate readings.
Avoid exposing the sensor to high concentrations of corrosive gases, as this may damage the sensing element.
Use proper pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines if they are not already included in your circuit.
Troubleshooting and FAQs
Common Issues and Solutions
No Data Received from the Sensor
Cause: Incorrect I2C address or wiring.
Solution: Verify the I2C address of the sensor (default is 0x5A) and check all connections.
Inaccurate Readings
Cause: Sensor exposed to extreme environmental conditions or interference.
Solution: Ensure the sensor is used within its operating temperature and humidity range. Minimize electrical noise in the circuit.
Sensor Not Detected by Microcontroller
Cause: Missing pull-up resistors on SDA and SCL lines.
Solution: Add 4.7kΩ pull-up resistors to the SDA and SCL lines.
FAQs
Q: Can the SSAM TVOC sensor detect specific gases?
A: No, the SSAM TVOC sensor measures the total concentration of volatile organic compounds (TVOCs) in the air but does not differentiate between specific gases.
Q: How often should I calibrate the sensor?
A: The sensor is factory-calibrated, but periodic calibration may be required for long-term accuracy, especially in industrial applications.
Q: Can I use the sensor with a 3.3V microcontroller?
A: Yes, the SSAM TVOC sensor supports a supply voltage range of 3.3V to 5V, making it compatible with both 3.3V and 5V systems.
By following this documentation, you can effectively integrate and use the SSAM TVOC sensor in your projects for reliable air quality monitoring.
