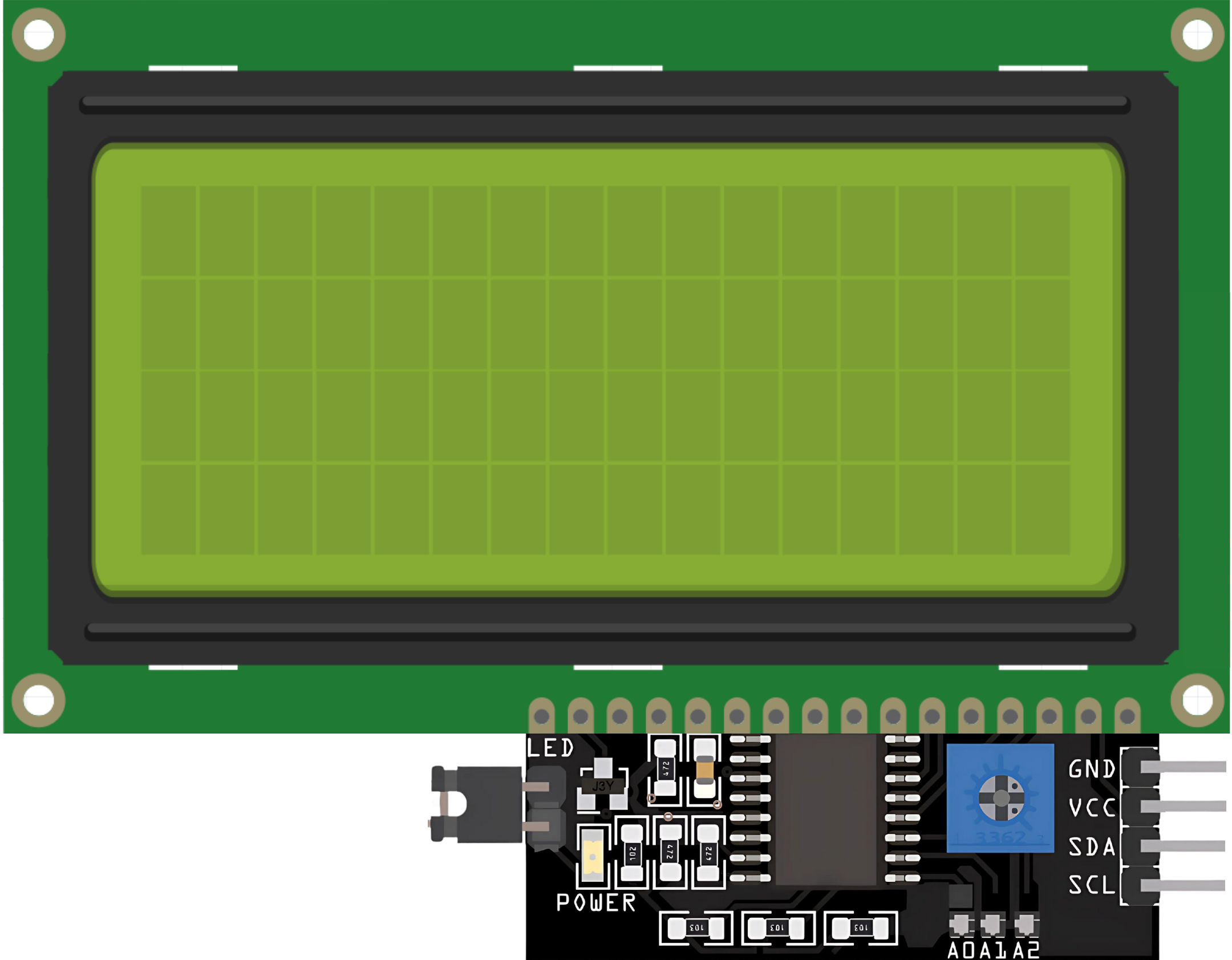

Image of LCD 20X4
Cirkit Designer LogoDesign with LCD 20X4 in Cirkit Designer

Introduction

A 20x4 LCD (Liquid Crystal Display) is a versatile display module capable of showing 20 characters per line across 4 lines. It is widely used in embedded systems for displaying text, numeric data, and simple graphics. The module is based on the HD44780 controller, which allows for easy interfacing with microcontrollers such as Arduino, Raspberry Pi, and other development boards.
