How to Use DC Barrel Jack 5.5x2.1mm Male: Examples, Pinouts, and Specs

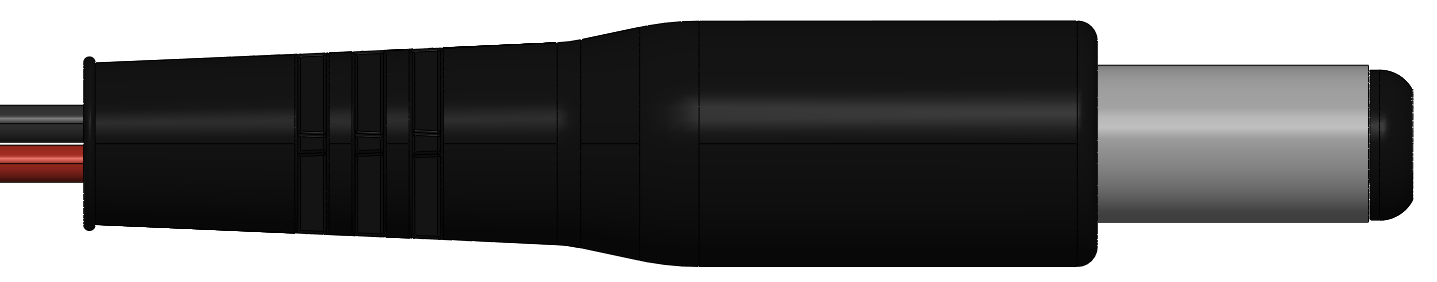

The DC Barrel Jack 5.5x2.1mm Male is a widely used connector for power supply applications. It features a 5.5mm outer diameter and a 2.1mm inner diameter, making it compatible with a variety of power adapters and devices. This connector is commonly found in consumer electronics, DIY projects, and prototyping setups, providing a reliable and standardized method for delivering DC power.

• Powering Arduino boards, Raspberry Pi, and other microcontrollers
• Supplying power to LED strips, small motors, and sensors
• Used in consumer electronics such as routers, modems, and audio equipment
• Ideal for DIY electronics projects and prototyping

The following table outlines the key technical details of the DC Barrel Jack 5.5x2.1mm Male:

The DC Barrel Jack 5.5x2.1mm Male has two main connections:

Note: Ensure proper polarity when connecting the jack to avoid damaging your circuit.

1. Identify Polarity: The inner pin is typically the positive terminal (V+), and the outer sleeve is the ground (GND). Verify this with your power supply or multimeter.
2. Connect to a Female Jack: Insert the male barrel jack into a compatible 5.5x2.1mm female jack. Ensure a snug fit for a reliable connection.
3. Soldering Wires (Optional): If using the jack with bare wires:
   • Solder the positive wire to the inner pin.
   • Solder the ground wire to the outer sleeve.
   • Use heat shrink tubing or electrical tape to insulate the connections.
4. Verify Connections: Double-check the polarity and voltage before powering your circuit.

• Voltage and Current Ratings: Ensure the power supply voltage and current do not exceed the jack's ratings.
• Polarity Check: Always verify the polarity of the power supply to prevent damage to your components.
• Secure Connections: Use a compatible female jack to ensure a stable and reliable connection.
• Avoid Overheating: If soldering, avoid prolonged heating of the metal parts to prevent damage to the insulation.

The DC Barrel Jack 5.5x2.1mm Male can be used to power an Arduino UNO via its DC power input. Below is an example of how to connect it:

1. Use a 9V or 12V DC power adapter with a 5.5x2.1mm female jack.
2. Plug the male barrel jack into the Arduino UNO's DC input port.
3. Ensure the adapter's polarity matches the Arduino's requirements (center-positive).

If powering sensors or modules connected to the Arduino, you can use the following code to test the setup:

// Simple Arduino code to blink an LED connected to pin 13
// Ensure the Arduino is powered via the DC barrel jack

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Loose Connection:

   • Cause: The male jack is not fully inserted into the female jack.
   • Solution: Ensure the jack is securely connected to the female counterpart.

2. Incorrect Polarity:

   • Cause: The power supply's polarity does not match the circuit's requirements.
   • Solution: Use a multimeter to verify the polarity of the power supply before connecting.

3. Overheating:

   • Cause: Excessive current or poor soldering.
   • Solution: Ensure the current does not exceed the jack's rating and use proper soldering techniques.

4. No Power to the Circuit:

   • Cause: Faulty connection or damaged jack.
   • Solution: Check the continuity of the jack with a multimeter and inspect for physical damage.

Q: Can I use this jack with a 5V power supply?
A: Yes, the DC Barrel Jack 5.5x2.1mm Male is compatible with 5V power supplies, as long as the current does not exceed its rating.

Q: Is this jack waterproof?
A: No, this jack is not waterproof. Avoid using it in environments with moisture or water exposure.

Q: Can I use this jack for AC power?
A: No, this jack is designed for DC power only. Using it with AC power can damage your components and pose safety risks.

Q: How do I ensure a secure connection?
A: Use a compatible 5.5x2.1mm female jack and ensure the male jack is fully inserted. For soldered connections, use heat shrink tubing for insulation.

By following this documentation, you can effectively use the DC Barrel Jack 5.5x2.1mm Male in your projects and troubleshoot common issues with ease.
