How to Use Buzzer Module: Examples, Pinouts, and Specs

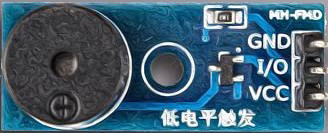

The Buzzer Module (Manufacturer: Naresh, Part ID: 1) is an electronic component designed to produce sound when an electrical signal is applied. It is widely used in applications such as alarms, notifications, timers, and sound-generating circuits. The module is compact, easy to use, and compatible with microcontrollers like Arduino, making it a popular choice for hobbyists and professionals alike.

• Alarm systems (e.g., burglar alarms, fire alarms)
• Timers and reminders
• Notification systems in electronic devices
• Sound effects in toys and gadgets
• Feedback mechanisms in user interfaces

The following table outlines the key technical details of the Buzzer Module:

The Buzzer Module typically has three pins. The table below describes each pin:

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
2. Control the Buzzer: Use the Signal pin to control the buzzer. When the Signal pin is set HIGH, the buzzer will produce sound. When set LOW, the buzzer will remain silent.
3. Microcontroller Integration: The module can be easily interfaced with microcontrollers like Arduino. Use a digital output pin to control the Signal pin of the buzzer.

• Voltage Range: Ensure the supply voltage is within the specified range (3.3V to 5V) to avoid damaging the module.
• Current Limitation: The module draws a small current (≤ 20mA), so it can be directly powered by most microcontroller pins.
• Placement: Place the buzzer in an open area for optimal sound output. Avoid obstructing the sound hole.
• Signal Control: Use a PWM (Pulse Width Modulation) signal to generate varying tones or sound patterns.

Below is an example of how to connect and control the Buzzer Module using an Arduino UNO:

• Connect the VCC pin of the buzzer to the 5V pin on the Arduino.
• Connect the GND pin of the buzzer to the GND pin on the Arduino.
• Connect the Signal pin of the buzzer to Digital Pin 8 on the Arduino.

// Buzzer Module Example Code
// This code demonstrates how to control a buzzer module using an Arduino UNO.

#define BUZZER_PIN 8  // Define the digital pin connected to the buzzer

void setup() {
  pinMode(BUZZER_PIN, OUTPUT);  // Set the buzzer pin as an output
}

void loop() {
  digitalWrite(BUZZER_PIN, HIGH);  // Turn the buzzer ON
  delay(1000);                     // Wait for 1 second
  digitalWrite(BUZZER_PIN, LOW);   // Turn the buzzer OFF
  delay(1000);                     // Wait for 1 second
}

To generate different tones, you can use the tone() function in Arduino. For example:

// Generate tones using the tone() function
#define BUZZER_PIN 8  // Define the digital pin connected to the buzzer

void setup() {
  // No setup required for tone() function
}

void loop() {
  tone(BUZZER_PIN, 1000);  // Generate a 1 kHz tone
  delay(500);              // Wait for 500 ms
  noTone(BUZZER_PIN);      // Stop the tone
  delay(500);              // Wait for 500 ms
}

1. No Sound from the Buzzer

   • Cause: Incorrect wiring or insufficient voltage.
   • Solution: Verify the connections and ensure the supply voltage is within the specified range (3.3V to 5V).

2. Weak or Distorted Sound

   • Cause: Obstruction of the sound hole or insufficient current.
   • Solution: Ensure the sound hole is unobstructed and the power supply can provide sufficient current.

3. Buzzer Always ON

   • Cause: Signal pin is stuck HIGH.
   • Solution: Check the microcontroller code and ensure the Signal pin is toggled correctly.

4. Buzzer Not Responding to PWM

   • Cause: Incorrect use of the tone() function or incompatible frequency.
   • Solution: Verify the frequency range and ensure the tone() function is used correctly.

Q1: Can the Buzzer Module be powered by a 9V battery?
A1: No, the module is designed to operate within a voltage range of 3.3V to 5V. Using a 9V battery directly may damage the module.

Q2: Can I use the Buzzer Module with a Raspberry Pi?
A2: Yes, the module can be used with a Raspberry Pi. Connect the Signal pin to a GPIO pin and control it using Python or other programming languages.

Q3: How can I generate different tones with the buzzer?
A3: Use a PWM signal or the tone() function (if using Arduino) to generate varying frequencies and produce different tones.

Q4: Is the Buzzer Module polarity-sensitive?
A4: Yes, ensure the VCC and GND pins are connected correctly to avoid damage to the module.

By following this documentation, you can effectively integrate and use the Naresh Buzzer Module (Part ID: 1) in your projects.
