How to Use USB Plug: Examples, Pinouts, and Specs

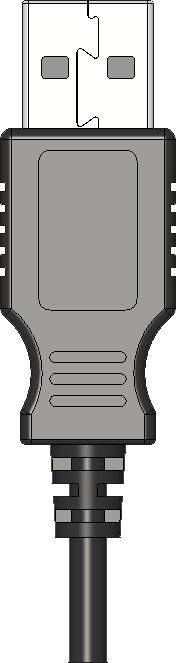

Image of USB Plug
Cirkit Designer LogoDesign with USB Plug in Cirkit Designer

Introduction

A USB plug is a standardized connector used to connect devices to a power source or to transfer data between devices. It is an essential component in modern electronics, enabling seamless communication and power delivery. USB plugs come in various types, including USB-A, USB-B, and USB-C, each designed for specific applications and compatibility.

Explore Projects Built with USB Plug

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered USB Charger with LED Indicator and DC Motor
Image of Copy of Hand Crank mobile charger : A project utilizing USB Plug in a practical application
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Touch Sensor Activated Buzzer with USB Power
Image of Touch Door Bell: A project utilizing USB Plug in a practical application
This circuit consists of a touch sensor, a buzzer, and a USB plug for power. When the touch sensor is activated, it triggers the buzzer to sound, powered by the 5V supply from the USB plug.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB-Powered Pushbutton Controlled LED Circuit
Image of oppgv. 10: A project utilizing USB Plug in a practical application
This circuit consists of a USB power converter supplying power to three pushbuttons, each connected to a corresponding red LED. When a button is pressed, it closes the circuit for its associated LED, causing the LED to light up. The common ground for the circuit is provided through a 40-pin connector, which also serves as an interface for the pushbuttons' inputs and the LEDs' cathodes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing USB Plug in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with USB Plug

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Copy of Hand Crank mobile charger : A project utilizing USB Plug in a practical application
Battery-Powered USB Charger with LED Indicator and DC Motor
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Touch Door Bell: A project utilizing USB Plug in a practical application
Touch Sensor Activated Buzzer with USB Power
This circuit consists of a touch sensor, a buzzer, and a USB plug for power. When the touch sensor is activated, it triggers the buzzer to sound, powered by the 5V supply from the USB plug.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of oppgv. 10: A project utilizing USB Plug in a practical application
USB-Powered Pushbutton Controlled LED Circuit
This circuit consists of a USB power converter supplying power to three pushbuttons, each connected to a corresponding red LED. When a button is pressed, it closes the circuit for its associated LED, causing the LED to light up. The common ground for the circuit is provided through a 40-pin connector, which also serves as an interface for the pushbuttons' inputs and the LEDs' cathodes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfdriver: A project utilizing USB Plug in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Charging electronic devices such as smartphones, tablets, and laptops.
  • Data transfer between devices like computers, external storage, and peripherals.
  • Connecting peripherals such as keyboards, mice, and printers to computers.
  • Powering small electronic devices like microcontrollers and development boards.

Technical Specifications

General Specifications

Parameter Value/Description
Voltage Rating 5V (standard), up to 20V for USB-C (Power Delivery)
Current Rating 500mA (USB 2.0), 900mA (USB 3.0), up to 5A (USB-C PD)
Data Transfer Speeds USB 2.0: 480 Mbps, USB 3.0: 5 Gbps, USB 3.1: 10 Gbps
Connector Types USB-A, USB-B, USB-C, Mini-USB, Micro-USB
Durability 1,500 to 10,000 insertion/removal cycles

Pin Configuration and Descriptions

USB-A Plug

Pin Number Name Description
1 VBUS +5V power supply
2 D- Data line (negative)
3 D+ Data line (positive)
4 GND Ground

USB-C Plug

Pin Number Name Description
A1, B1 GND Ground
A4, B4 VBUS +5V to +20V power supply
A6, B6 D+ Data line (positive)
A7, B7 D- Data line (negative)
A8, B8 SBU1, SBU2 Sideband use (e.g., audio, alternate modes)
A2, B2 TX+ SuperSpeed differential pair (positive)
A3, B3 TX- SuperSpeed differential pair (negative)
A10, B10 RX+ SuperSpeed differential pair (positive)
A11, B11 RX- SuperSpeed differential pair (negative)

Usage Instructions

How to Use the USB Plug in a Circuit

  1. Identify the USB Type: Determine the type of USB plug (e.g., USB-A, USB-C) required for your application.
  2. Connect Power Lines:
    • For USB-A, connect the VBUS pin to a 5V power source and the GND pin to ground.
    • For USB-C, ensure proper voltage levels (5V to 20V) and current ratings are used.
  3. Connect Data Lines:
    • For USB-A, connect D+ and D- to the corresponding data lines of your device.
    • For USB-C, ensure proper differential pair connections for high-speed data transfer.
  4. Secure the Connection: Use a proper USB socket or solder the plug securely to avoid loose connections.
  5. Test the Circuit: Verify power delivery and data transfer functionality.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Ensure the power source matches the voltage and current requirements of the connected device.
  • Cable Quality: Use high-quality USB cables to minimize resistance and ensure reliable data transfer.
  • USB-C Orientation: USB-C plugs are reversible, but ensure proper pin mapping for power and data lines.
  • Avoid Overloading: Do not exceed the current rating of the USB plug to prevent overheating or damage.

Example: Connecting a USB Plug to an Arduino UNO

To power an Arduino UNO using a USB-A plug, connect the VBUS pin to the 5V input pin of the Arduino and the GND pin to the ground. Below is an example code for serial communication via USB:

// Example code for serial communication with Arduino UNO via USB

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("USB Communication Initialized");
}

void loop() {
  if (Serial.available() > 0) {
    // Read incoming data from USB
    char received = Serial.read();
    Serial.print("Received: ");
    Serial.println(received); // Echo the received data back
  }
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Power Delivery:

    • Cause: Incorrect connection of VBUS or GND pins.
    • Solution: Verify the pin connections and ensure the power source is functional.
  2. Data Transfer Fails:

    • Cause: Misconnection of D+ and D- lines or poor cable quality.
    • Solution: Check the data line connections and use a certified USB cable.
  3. Overheating:

    • Cause: Exceeding the current rating of the USB plug.
    • Solution: Use a power source with appropriate current limits and avoid overloading.
  4. USB-C Compatibility Issues:

    • Cause: Incorrect pin mapping or unsupported alternate mode.
    • Solution: Refer to the USB-C specification and ensure proper configuration.

FAQs

  • Q: Can I use a USB-A plug to power a 12V device?
    A: No, USB-A plugs are designed for 5V power delivery. Use USB-C with Power Delivery for higher voltages.

  • Q: How do I identify the orientation of a USB-C plug?
    A: USB-C plugs are reversible, so orientation does not matter for standard connections.

  • Q: Can I use a USB plug for both power and data simultaneously?
    A: Yes, USB plugs are designed to handle both power delivery and data transfer simultaneously.

  • Q: What is the maximum current supported by a USB-C plug?
    A: USB-C plugs can support up to 5A with Power Delivery, depending on the cable and device specifications.
