How to Use Arduino nano: Examples, Pinouts, and Specs

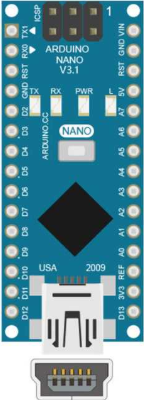

Image of Arduino nano
Cirkit Designer LogoDesign with Arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board based on the ATmega328P, designed for easy integration into a wide range of electronic projects. It features a small form factor, making it ideal for applications where space is limited. The Nano offers digital and analog input/output pins, USB connectivity for programming and communication, and full compatibility with the Arduino IDE, making it a versatile and user-friendly choice for both beginners and experienced developers.

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
Image of mt: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing Arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mt: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and small-scale embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Sensor data acquisition and processing
  • Wearable electronics
  • Educational tools for learning microcontroller programming

Technical Specifications

The Arduino Nano is equipped with the ATmega328P microcontroller and offers the following key specifications:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
1 VIN Input voltage to the board when using an external power source (7-12V recommended).
2 GND Ground pin.
3 5V Regulated 5V output from the onboard voltage regulator.
4 3.3V Regulated 3.3V output (limited to 50 mA).
5 AREF Reference voltage for analog inputs.
6 RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Name Description
D0-D13 Digital I/O General-purpose digital input/output pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Name Description
A0-A7 Analog Input Used for reading analog signals (0-5V). Can also be used as digital I/O pins.

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via a Mini-B USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V recommended) or the 5V pin (regulated 5V).
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the Nano to your computer using a Mini-B USB cable.
    • In the Arduino IDE, select Tools > Board > Arduino Nano.
    • Choose the correct processor (ATmega328P) and port under the Tools menu.
    • Write or load your code and click the Upload button to program the board.
  3. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals or as additional digital I/O pins.
    • Connect sensors, actuators, and other peripherals as needed, ensuring proper voltage and current ratings.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// This example blinks an LED connected to pin D13 on the Arduino Nano.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating of 40 mA per I/O pin to prevent damage.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • Ensure proper grounding when connecting external components to avoid noise or erratic behavior.
  • When using analog inputs, ensure the input voltage does not exceed 5V to prevent damage to the microcontroller.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Arduino Nano is not detected by the computer:

    • Ensure the USB cable is functional and properly connected.
    • Install the correct USB driver for the Nano (e.g., CH340 driver for clones).
    • Check the selected port in the Arduino IDE under Tools > Port.
  2. Code upload fails:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Press the RESET button on the Nano just before uploading the code.
    • Ensure no external components are interfering with the RX/TX pins (D0 and D1).
  3. The board is not powering on:

    • Check the power source and ensure it meets the voltage requirements.
    • Inspect the board for physical damage or loose connections.

FAQs

Q: Can I power the Arduino Nano with a battery?
A: Yes, you can power the Nano using a battery by connecting it to the VIN pin (7-12V) or the 5V pin (regulated 5V).

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266/ESP32) to the Nano via its serial or digital pins.

Q: How do I reset the Arduino Nano?
A: Press the onboard RESET button or connect the RESET pin to GND momentarily.

Q: Is the Arduino Nano compatible with shields?
A: The Nano is not directly compatible with standard Arduino shields, but you can use a Nano breakout board or custom wiring to connect shields.

By following this documentation, you can effectively integrate the Arduino Nano into your projects and troubleshoot common issues with ease.
