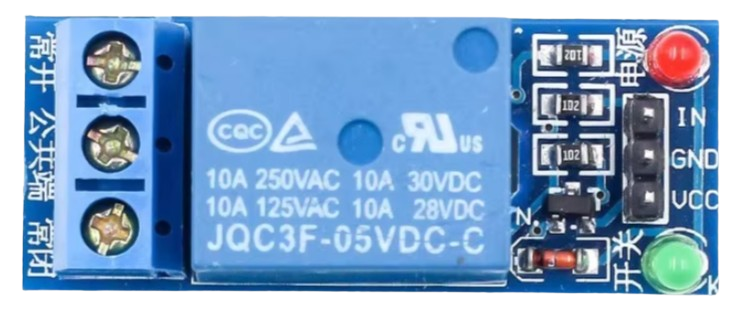

How to Use 1 Channel Relay 5V: Examples, Pinouts, and Specs

The 1 Channel Relay 5V is an electromechanical switch that allows a low voltage control signal (e.g., from a microcontroller) to control a higher voltage circuit. This module is widely used in automation, home appliances, and control systems to switch devices such as lights, fans, motors, or other high-power loads. It operates at 5V, making it compatible with most microcontrollers, including Arduino and Raspberry Pi.

• Home automation systems (e.g., controlling lights or appliances)
• Industrial control systems
• Motor control
• IoT projects
• Security systems (e.g., activating alarms or locks)

Below are the key technical details of the 1 Channel Relay 5V module:

The 1 Channel Relay 5V module has the following pinout:

1. Power the Relay Module: Connect the VCC pin to a 5V power source and the GND pin to ground.
2. Connect the Control Signal: Connect the IN pin to a digital output pin of your microcontroller (e.g., Arduino).
3. Connect the Load:
   • Identify whether you want the load to be normally ON or OFF.
   • For a normally OFF configuration, connect the load between the NO (Normally Open) terminal and COM (Common) terminal.
   • For a normally ON configuration, connect the load between the NC (Normally Closed) terminal and COM terminal.
4. Control the Relay: Send a HIGH signal (5V) to the IN pin to activate the relay and switch the load. Send a LOW signal (0V) to deactivate the relay.

• Isolation: The relay module uses an optocoupler for isolation, ensuring that the control circuit is protected from high voltages on the load side.
• Power Supply: Ensure that the power supply for the relay module can provide sufficient current (typically ~70mA when the relay is active).
• Flyback Diode: If you're controlling an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.
• Avoid Overloading: Do not exceed the maximum voltage (250V AC / 30V DC) or current (10A) ratings of the relay.

Below is an example of how to connect and control the 1 Channel Relay 5V module using an Arduino UNO:

• Relay Module:
  • VCC → 5V pin on Arduino
  • GND → GND pin on Arduino
  • IN → Digital pin 7 on Arduino
• Load:
  • Connect one side of the load to the NO terminal.
  • Connect the other side of the load to the power source.
  • Connect the COM terminal to the power source ground.

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off at startup
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

• Use a separate power supply for the relay module if your microcontroller cannot provide sufficient current.
• Avoid switching high-power loads frequently to extend the relay's lifespan.
• Ensure proper insulation and safety precautions when working with high voltages.

1. Relay Not Activating:

   • Cause: Insufficient voltage or current to the relay module.
   • Solution: Verify that the VCC pin is receiving 5V and the IN pin is receiving a HIGH signal (3.3V to 5V).

2. Load Not Switching:

   • Cause: Incorrect wiring of the load terminals (COM, NO, NC).
   • Solution: Double-check the wiring and ensure the load is connected to the correct terminals.

3. Relay Stuck in ON or OFF State:

   • Cause: Damaged relay due to overloading or voltage spikes.
   • Solution: Replace the relay module and ensure the load does not exceed the rated voltage/current.

4. Microcontroller Resets When Relay Activates:

   • Cause: Voltage drop due to high current draw from the relay.
   • Solution: Use a separate power supply for the relay module or add a capacitor across the microcontroller's power supply.

Q1: Can I use the 1 Channel Relay 5V with a 3.3V microcontroller?
A1: Yes, the relay module can be triggered with a 3.3V control signal, but ensure the VCC pin is powered with 5V.

Q2: Can this relay module switch DC loads?
A2: Yes, it can switch DC loads up to 30V and 10A.

Q3: Is the relay module safe for high-voltage applications?
A3: Yes, but ensure proper insulation and safety precautions when working with voltages up to 250V AC.

Q4: Can I control multiple relays with one microcontroller?
A4: Yes, as long as each relay is connected to a separate digital output pin and the microcontroller can handle the total current draw.
