How to Use Cnc Shield V3: Examples, Pinouts, and Specs

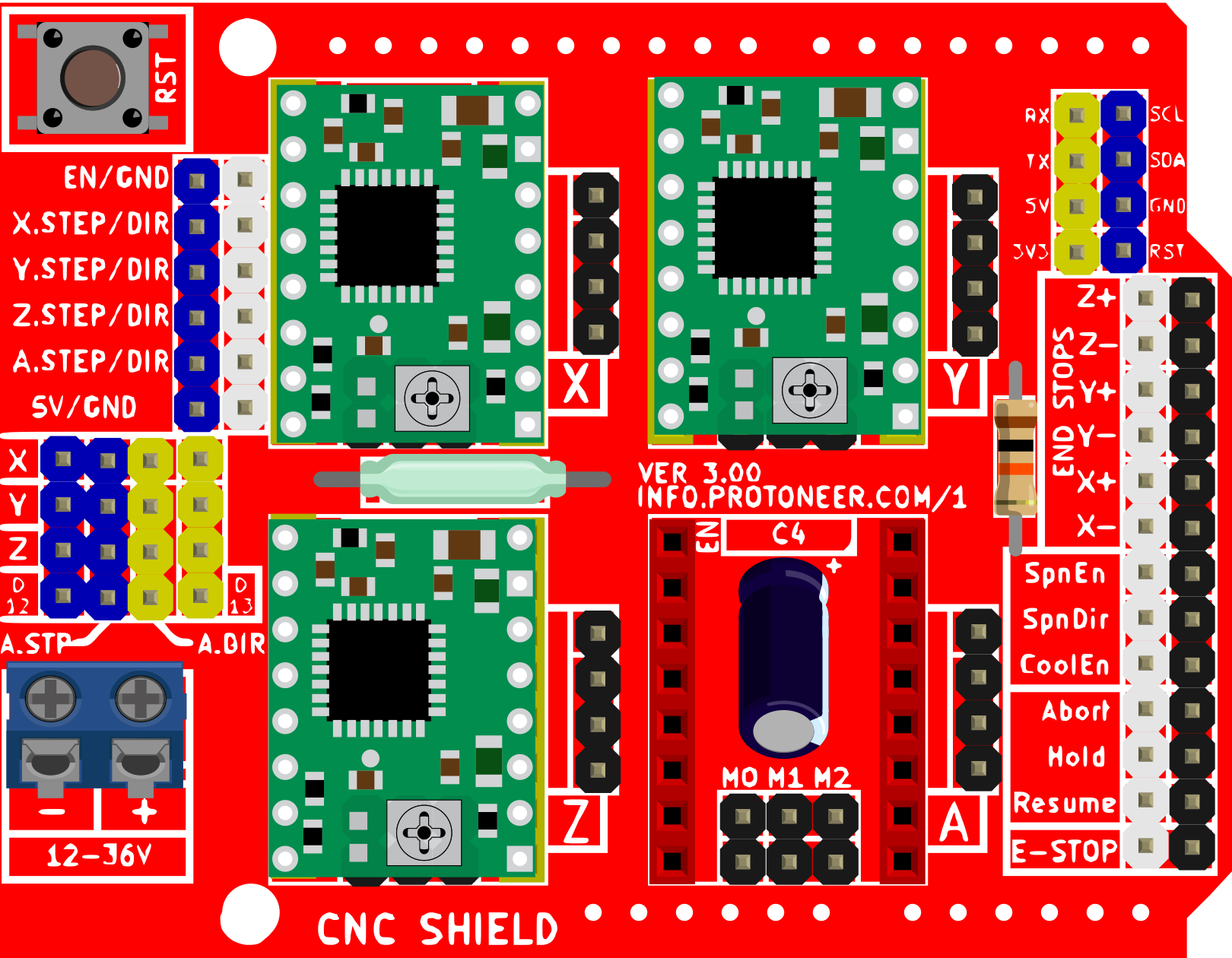

The CNC Shield V3 is a compact and versatile control board designed for driving stepper motors in CNC machines, 3D printers, and other motion control applications. It is compatible with Arduino boards, making it an excellent choice for DIY projects and prototyping. The shield supports up to four stepper motor drivers (such as A4988 or DRV8825) and provides precise control over motor movements. With its modular design and ease of use, the CNC Shield V3 is widely used in hobbyist and professional CNC setups.

• CNC milling machines
• 3D printers
• Laser engravers
• Plotters and drawing machines
• Robotics and automation projects

• Input Voltage: 12V to 36V (via external power supply for stepper motors)
• Logic Voltage: 5V (provided by the Arduino board)
• Stepper Motor Drivers Supported: A4988, DRV8825, or compatible drivers
• Number of Axes Supported: 3 (X, Y, Z) + 1 optional (A axis for dual Y or other configurations)
• Microstepping Support: Configurable via jumpers (full step, 1/2, 1/4, 1/8, 1/16)
• Endstop Connections: 6 (2 per axis for X, Y, Z)
• Spindle/Enable Pins: Available for controlling external devices like a spindle motor or laser
• Dimensions: 69mm x 54mm (fits standard Arduino Uno footprint)

The CNC Shield V3 connects directly to an Arduino Uno and provides the following pinouts:

1. Connect the Shield to an Arduino Uno:

   • Align the CNC Shield V3 with the Arduino Uno and plug it in directly.
   • Ensure all pins are properly seated.

2. Install Stepper Motor Drivers:

   • Insert stepper motor drivers (e.g., A4988 or DRV8825) into the designated sockets.
   • Ensure correct orientation (refer to the markings on the shield and driver).

3. Set Microstepping:

   • Use the jumpers under each driver socket to configure microstepping.
   • For example, place jumpers on MS1, MS2, and MS3 for 1/16 microstepping.

4. Connect Stepper Motors:

   • Attach stepper motors to the X, Y, Z, and optional A-axis terminals.
   • Match the motor wires to the correct coil pairs (consult motor datasheet).

5. Connect Endstops:

   • Attach endstop switches to the X, Y, and Z endstop pins as needed.
   • Use normally open (NO) or normally closed (NC) switches based on your firmware settings.

6. Power the Shield:

   • Connect an external power supply (12V-36V) to the VMOT and GND terminals.
   • Ensure the power supply matches the voltage requirements of your stepper motors.

7. Upload Firmware:

   • Install GRBL firmware on the Arduino Uno using the Arduino IDE.
   • Configure GRBL settings (e.g., steps/mm, max speed) to match your machine.

8. Control the CNC Machine:

   • Use G-code sender software (e.g., Universal Gcode Sender) to send commands to the Arduino.
   • Test movements and calibrate the machine as needed.

• Cooling: Stepper motor drivers can overheat during operation. Use heatsinks and/or a cooling fan to prevent thermal shutdown.
• Current Limiting: Adjust the current limit on each stepper driver to match the motor's rated current. This prevents overheating and damage.
• Firmware Configuration: Ensure GRBL or other firmware is properly configured for your machine's dimensions, stepper motor specs, and endstop behavior.
• Power Supply: Use a stable and adequately rated power supply to avoid voltage drops or motor stalling.

The CNC Shield V3 is typically used with GRBL firmware. Below is an example of how to upload GRBL to the Arduino Uno:

// Install the GRBL library in the Arduino IDE:
// 1. Go to Sketch > Include Library > Manage Libraries.
// 2. Search for "GRBL" and install it.

// Load the GRBL firmware onto the Arduino Uno:
#include <grbl.h>

// Note: GRBL firmware does not require additional code in the sketch.
// Once uploaded, the Arduino will act as a G-code interpreter for the CNC Shield.

1. Stepper Motors Not Moving:

   • Cause: Incorrect wiring or loose connections.
   • Solution: Double-check motor wiring and ensure connections are secure.

2. Drivers Overheating:

   • Cause: Current limit set too high or insufficient cooling.
   • Solution: Adjust the current limit on the driver and add heatsinks or a fan.

3. Endstops Not Working:

   • Cause: Misconfigured firmware or faulty switches.
   • Solution: Verify endstop wiring and check GRBL settings ($5 for invert logic).

4. Motors Moving in the Wrong Direction:

   • Cause: Incorrect motor wiring or direction pin configuration.
   • Solution: Swap one coil pair on the motor or invert the direction in GRBL settings ($3).

5. Arduino Not Responding:

   • Cause: Incorrect firmware upload or communication issue.
   • Solution: Re-upload GRBL firmware and ensure the correct COM port is selected.

• Can I use the CNC Shield V3 with other Arduino boards?

  • The CNC Shield V3 is designed for the Arduino Uno but may work with other boards with the same pinout.

• What stepper motors are compatible with the CNC Shield V3?

  • Most NEMA 17 and NEMA 23 stepper motors are compatible, provided the current and voltage ratings match the drivers.

• How do I control a spindle or laser with the CNC Shield V3?

  • Use the Spindle Enable pin to control an external relay or PWM device. Configure GRBL settings ($30, $31, $32) for spindle/laser mode.

By following this documentation, you can effectively set up and operate the CNC Shield V3 for your CNC or 3D printing projects.
