How to Use lm2596: Examples, Pinouts, and Specs

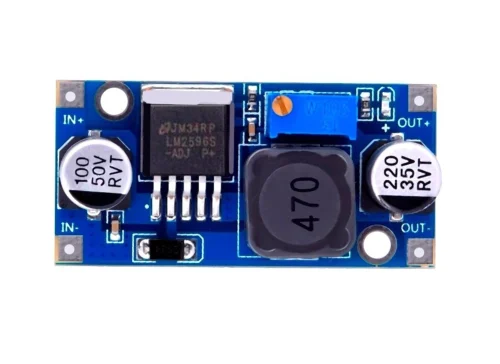

The LM2596 is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage into a stable, regulated output voltage. It is capable of delivering up to 3A of output current, making it ideal for powering a wide range of electronic devices. With its wide input voltage range (4.5V to 40V) and adjustable or fixed output voltage options, the LM2596 is a versatile component for power management in embedded systems, battery-powered devices, and industrial applications.

• Power supply for microcontrollers and embedded systems
• Battery chargers
• Voltage regulation in industrial equipment
• DC-DC converters for automotive and robotics applications
• LED drivers

The LM2596 is available in both adjustable and fixed output voltage versions. Below are the key technical details:

The LM2596 typically comes in a 5-pin TO-220 or TO-263 package. Below is the pinout description:

1. Input Voltage: Connect the input voltage (4.5V to 40V) to the VIN pin. Ensure the input voltage is at least 3V higher than the desired output voltage for proper regulation.
2. Output Voltage: For fixed versions, the output voltage is pre-set (e.g., 5V). For adjustable versions, connect a resistor divider to the Feedback pin to set the desired output voltage.
3. Capacitors: Place input and output capacitors close to the VIN and Output pins to stabilize the circuit. Typical values are:
   • Input capacitor: 100 µF electrolytic
   • Output capacitor: 220 µF electrolytic
4. Inductor: Use an appropriate inductor value (e.g., 33 µH) based on the desired output voltage and current.
5. Enable Pin: If using the ON/OFF pin, connect it to a logic high level to enable the regulator or pull it low to disable it.

Below is a basic circuit for an adjustable LM2596 regulator:

VIN (12V) ----+---- Input Capacitor (100 µF) ---- VIN (Pin 1)
              |
              +---- Inductor (33 µH) ----+---- Output Capacitor (220 µF) ---- VOUT (Pin 2)
                                         |
                                         +---- Feedback Resistor Divider ---- Feedback (Pin 4)
                                         |
                                         GND (Pin 3)

The LM2596 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example code to read the output voltage using the Arduino's ADC:

// Define the analog pin connected to the LM2596 output
const int voltagePin = A0;

// Reference voltage for the ADC (5V for Arduino UNO)
const float referenceVoltage = 5.0;

// Voltage divider resistors (if used for feedback)
const float R1 = 10.0; // Resistor 1 value in kOhms
const float R2 = 2.2;  // Resistor 2 value in kOhms

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int adcValue = analogRead(voltagePin); // Read the ADC value
  float outputVoltage = (adcValue / 1023.0) * referenceVoltage;

  // If a voltage divider is used, calculate the actual output voltage
  outputVoltage = outputVoltage * ((R1 + R2) / R2);

  Serial.print("Output Voltage: ");
  Serial.print(outputVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

• Heat Dissipation: The LM2596 can generate heat under high current loads. Use a heatsink or ensure proper ventilation to prevent overheating.
• Ripple Voltage: Use low-ESR capacitors to minimize output voltage ripple.
• Inductor Selection: Choose an inductor with a current rating higher than the maximum load current to avoid saturation.

1. No Output Voltage:

   • Check the input voltage. Ensure it is within the specified range (4.5V to 40V).
   • Verify that the ON/OFF pin is pulled high or left floating.
   • Inspect the circuit for loose connections or soldering issues.

2. Output Voltage is Incorrect:

   • For adjustable versions, check the resistor divider values connected to the Feedback pin.
   • Ensure the input voltage is at least 3V higher than the desired output voltage.

3. Excessive Heat:

   • Verify that the load current does not exceed 3A.
   • Use a heatsink or improve airflow around the regulator.

4. High Ripple Voltage:

   • Use low-ESR capacitors for input and output filtering.
   • Check the inductor value and ensure it is appropriate for the circuit.

Q: Can the LM2596 be used with a battery as the input source?
A: Yes, the LM2596 can regulate voltage from a battery. Ensure the battery voltage is within the input range and consider the dropout voltage when setting the output.

Q: What is the efficiency of the LM2596?
A: The LM2596 can achieve up to 90% efficiency, depending on the input voltage, output voltage, and load current.

Q: Can I use the LM2596 to power an Arduino directly?
A: Yes, the LM2596 can step down a higher voltage (e.g., 12V) to 5V to power an Arduino UNO or other microcontrollers.

Q: How do I calculate the resistor values for the adjustable version?
A: Use the formula:
[ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ]
where ( V_{REF} ) is 1.23V. Select ( R1 ) and ( R2 ) to achieve the desired output voltage.
