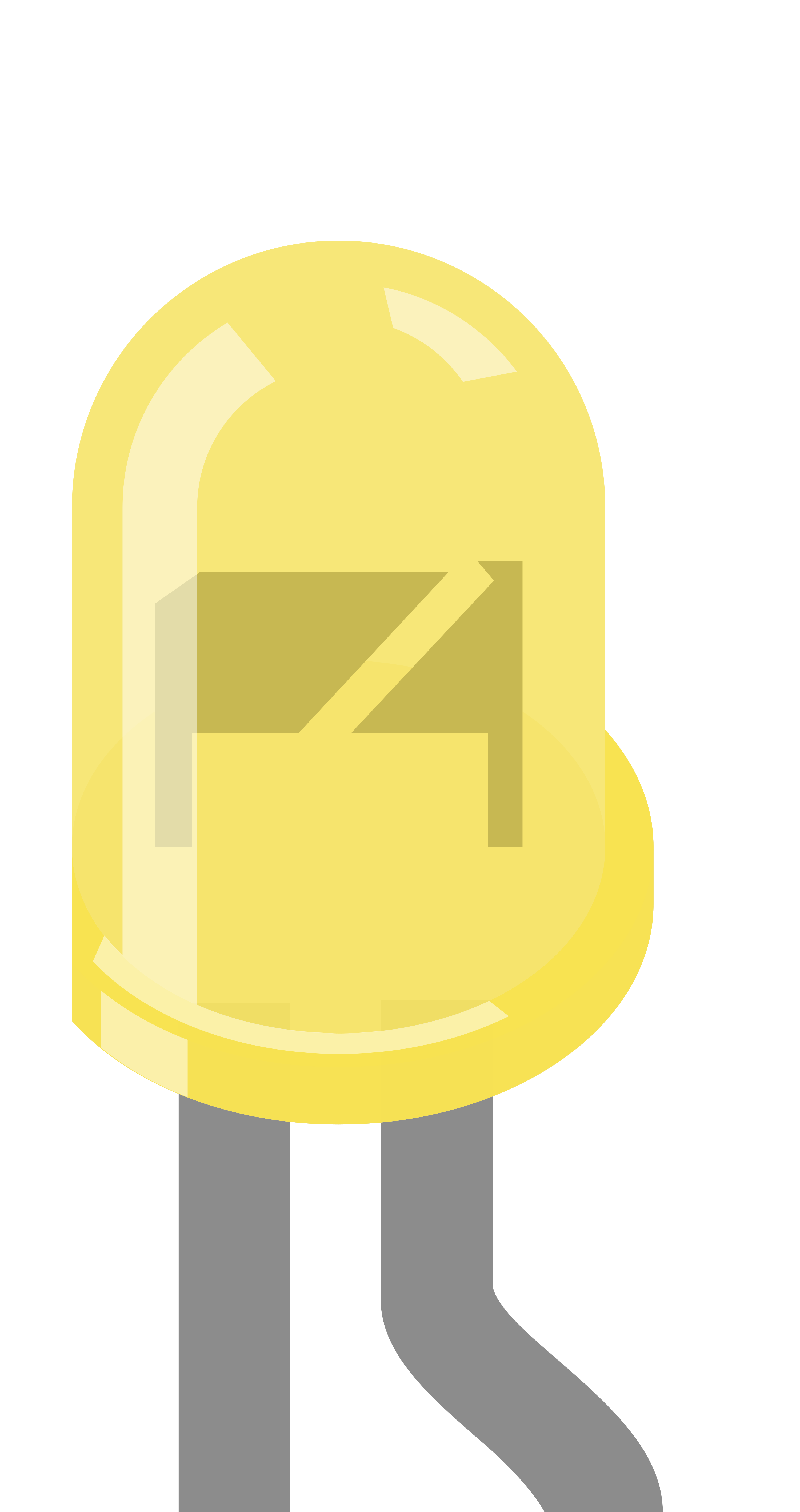

Image of LED: Two Pin (yellow)
Cirkit Designer LogoDesign with LED: Two Pin (yellow) in Cirkit Designer

Introduction

A yellow light-emitting diode (LED) is a semiconductor device that emits yellow light when an electric current flows through it. This two-pin LED is widely used in electronic circuits for status indication, visual signaling, or decorative purposes. Its compact size, low power consumption, and long lifespan make it a versatile component in various applications.

Explore Projects Built with LED: Two Pin (yellow)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
LED Array with Inductive Power Transfer
Image of Wind Mill: A project utilizing LED: Two Pin (yellow) in a practical application
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled LED Indicator using ESP8266 NodeMCU
Image of esp8266 pin : A project utilizing LED: Two Pin (yellow) in a practical application
This circuit uses an ESP8266 NodeMCU microcontroller to control two LEDs, one green and one yellow. The green LED is connected to pin D1, and the yellow LED is connected to pin D2, with both LEDs sharing a common ground with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Simple LED Circuit with Current-Limiting Resistors
Image of 모스시: A project utilizing LED: Two Pin (yellow) in a practical application
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Controlled Multi-Color LED Indicator
Image of iot 1: A project utilizing LED: Two Pin (yellow) in a practical application
The circuit features a Raspberry Pi 4B microcontroller used to independently control three LEDs (green, red, and yellow) through GPIO pins, with each LED having a series resistor for current limiting. The common cathode configuration for the LEDs allows for simple on/off control signaling or status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LED: Two Pin (yellow)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Wind Mill: A project utilizing LED: Two Pin (yellow) in a practical application
LED Array with Inductive Power Transfer
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of esp8266 pin : A project utilizing LED: Two Pin (yellow) in a practical application
Wi-Fi Controlled LED Indicator using ESP8266 NodeMCU
This circuit uses an ESP8266 NodeMCU microcontroller to control two LEDs, one green and one yellow. The green LED is connected to pin D1, and the yellow LED is connected to pin D2, with both LEDs sharing a common ground with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 모스시: A project utilizing LED: Two Pin (yellow) in a practical application
Simple LED Circuit with Current-Limiting Resistors
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of iot 1: A project utilizing LED: Two Pin (yellow) in a practical application
Raspberry Pi 4B Controlled Multi-Color LED Indicator
The circuit features a Raspberry Pi 4B microcontroller used to independently control three LEDs (green, red, and yellow) through GPIO pins, with each LED having a series resistor for current limiting. The common cathode configuration for the LEDs allows for simple on/off control signaling or status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Status indicators in electronic devices
  • Visual feedback in microcontroller projects
  • Decorative lighting and displays
  • Signal indicators in automotive and industrial systems
  • Educational and prototyping purposes

Technical Specifications

Below are the key technical details for the yellow two-pin LED:

Parameter Value
Forward Voltage (Vf) 2.0V to 2.2V
Forward Current (If) 20mA (typical), 30mA (maximum)
Reverse Voltage (Vr) 5V (maximum)
Power Dissipation 60mW
Wavelength 585nm to 595nm (yellow light)
Viewing Angle 20° to 30°
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +100°C

Pin Configuration and Descriptions

The yellow two-pin LED has the following pin configuration:

Pin Description
Anode (+) The longer pin of the LED. Connect this to the positive terminal of the circuit.
Cathode (-) The shorter pin of the LED. Connect this to the negative terminal or ground.

Note: If the pins are trimmed or difficult to distinguish, the flat edge on the LED casing indicates the cathode (-).

Usage Instructions

How to Use the LED in a Circuit

  1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. Calculate the resistor value using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

    • ( V_{supply} ) is the supply voltage
    • ( V_f ) is the forward voltage of the LED (2.0V to 2.2V)
    • ( I_f ) is the desired forward current (typically 20mA)

    For example, with a 5V supply: [ R = \frac{5V - 2.1V}{0.02A} = 145\Omega ] Use the nearest standard resistor value, such as 150Ω.

  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground.
  3. Power the Circuit: Apply the supply voltage, and the LED will emit yellow light.

Important Considerations and Best Practices

  • Polarity Matters: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or cause damage.
  • Avoid Overcurrent: Exceeding the maximum forward current (30mA) can permanently damage the LED.
  • Use Proper Resistors: Always use a resistor to limit current, even for low-voltage supplies.
  • Heat Management: While LEDs generate minimal heat, ensure proper ventilation in high-density circuits.

Example: Connecting the LED to an Arduino UNO

Below is an example of how to connect and control a yellow LED using an Arduino UNO:

Circuit Setup

  • Connect the anode (+) of the LED to Arduino digital pin 9 through a 220Ω resistor.
  • Connect the cathode (-) of the LED to the Arduino GND pin.

Arduino Code

// This code blinks a yellow LED connected to pin 9 of the Arduino UNO.
// Ensure a 220Ω resistor is used to limit current to the LED.

const int ledPin = 9; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.
      • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.
    • Cause: No current-limiting resistor.
      • Solution: Add a resistor in series with the LED to limit current.
  2. LED is Dim:

    • Cause: Resistor value too high.
      • Solution: Recalculate the resistor value for the desired brightness.
    • Cause: Low supply voltage.
      • Solution: Ensure the supply voltage is sufficient to exceed the forward voltage of the LED.
  3. LED Burns Out Quickly:

    • Cause: Excessive current.
      • Solution: Use a resistor to limit the current to 20mA or less.
  4. LED Flickers:

    • Cause: Unstable power supply.
      • Solution: Use a stable power source or add a capacitor to smooth voltage fluctuations.

FAQs

  • Q: Can I connect the LED directly to a 3.3V or 5V supply?
    A: No, always use a current-limiting resistor to prevent damage to the LED.

  • Q: How do I adjust the brightness of the LED?
    A: Use a lower-value resistor for higher brightness (within safe limits) or use PWM (Pulse Width Modulation) with a microcontroller like Arduino.

  • Q: Can I use this LED for AC circuits?
    A: LEDs are designed for DC circuits. For AC applications, use a rectifier circuit to convert AC to DC.

  • Q: What happens if I exceed the maximum forward current?
    A: Exceeding the maximum current can permanently damage the LED or significantly reduce its lifespan.

This documentation provides all the essential details to effectively use and troubleshoot a yellow two-pin LED in your projects.
