How to Use SSOP48: Examples, Pinouts, and Specs

The SSOP48 (Shrink Small Outline Package) is a surface-mount integrated circuit (IC) package with 48 pins. It is designed for applications requiring compact size and high pin density. The SSOP48 package is widely used in modern electronics due to its low profile and small footprint, making it ideal for high-density circuit boards. Its design ensures reliable electrical connections while minimizing space requirements.

• Microcontrollers and digital signal processors (DSPs)
• Memory modules (e.g., EEPROM, Flash)
• Analog and mixed-signal ICs
• Consumer electronics, such as smartphones and tablets
• Automotive electronics
• Industrial control systems

• Package Type: SSOP (Shrink Small Outline Package)
• Number of Pins: 48
• Pin Pitch: 0.635 mm (typical)
• Body Width: 5.3 mm (typical)
• Body Length: 12.8 mm (typical)
• Height: 1.75 mm (maximum)
• Mounting Type: Surface-mount
• Thermal Resistance: Varies by IC, typically 30–50°C/W
• Operating Temperature Range: -40°C to +125°C (varies by IC)
• Moisture Sensitivity Level (MSL): Typically MSL 3 (depends on the IC)

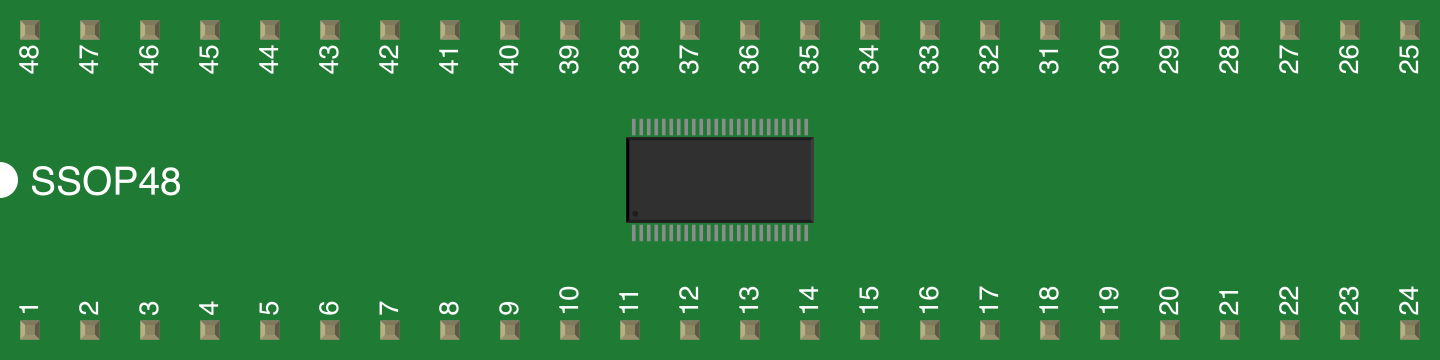

The SSOP48 package has 48 pins arranged in two parallel rows. The pin configuration depends on the specific IC housed in the SSOP48 package. Below is a generic example of pin descriptions for a microcontroller in an SSOP48 package:

Note: Always refer to the datasheet of the specific IC for the exact pinout and functionality.

1. PCB Design: Ensure your PCB layout matches the SSOP48 footprint. Use a 0.635 mm pin pitch and follow the recommended land pattern from the IC's datasheet.
2. Soldering: Use surface-mount soldering techniques, such as reflow soldering, for reliable connections. Ensure proper alignment of the pins with the PCB pads.
3. Power Supply: Provide the correct voltage and current as specified in the IC's datasheet. Use decoupling capacitors near the VCC and GND pins to reduce noise.
4. Signal Connections: Connect the pins to the appropriate signals (e.g., GPIO, communication interfaces) as per your circuit design.
5. Thermal Management: If the IC generates significant heat, consider adding thermal vias or a heatsink to dissipate heat effectively.

• Moisture Sensitivity: SSOP48 packages are sensitive to moisture. Store them in a dry environment and follow proper handling procedures to avoid damage during soldering.
• ESD Protection: Handle the IC with care to prevent electrostatic discharge (ESD) damage. Use ESD-safe tools and workstations.
• Pin Alignment: Ensure precise alignment of the IC during soldering to avoid bridging or open connections.
• Reflow Profile: Follow the recommended reflow soldering profile from the IC's datasheet to prevent thermal damage.

If the SSOP48 package houses a microcontroller, you can interface it with an Arduino UNO for testing or prototyping. Below is an example of Arduino code to communicate with an SSOP48 microcontroller via I2C:

#include <Wire.h> // Include the Wire library for I2C communication

#define SSOP48_ADDRESS 0x50 // Replace with the actual I2C address of the SSOP48 IC

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging
  Serial.println("Initializing SSOP48 communication...");
}

void loop() {
  Wire.beginTransmission(SSOP48_ADDRESS); // Start communication with SSOP48
  Wire.write(0x01); // Send a command or register address (example: 0x01)
  Wire.endTransmission(); // End the transmission

  delay(100); // Wait for the IC to process the command

  Wire.requestFrom(SSOP48_ADDRESS, 1); // Request 1 byte of data from SSOP48
  if (Wire.available()) {
    int data = Wire.read(); // Read the received data
    Serial.print("Received data: ");
    Serial.println(data);
  }

  delay(1000); // Wait before the next communication cycle
}

Note: Replace SSOP48_ADDRESS and the command/register address with the actual values for your specific IC.

1. Incorrect Pin Alignment: Misaligned pins during soldering can cause short circuits or open connections.

   • Solution: Use a magnifying glass or microscope to inspect the solder joints and ensure proper alignment.

2. Overheating During Soldering: Excessive heat can damage the IC or cause solder bridging.

   • Solution: Follow the recommended reflow soldering profile and use appropriate soldering tools.

3. Moisture Damage: Exposure to moisture can lead to package cracking during soldering.

   • Solution: Store the IC in a dry environment and bake it if necessary before soldering.

4. Communication Errors: I2C or SPI communication may fail due to incorrect wiring or configuration.

   • Solution: Double-check the connections, pull-up resistors, and communication settings.

• Check Power Supply: Ensure the correct voltage and current are supplied to the IC.
• Inspect Solder Joints: Look for cold solder joints, solder bridges, or open connections.
• Verify Pinout: Cross-check the pinout with the IC's datasheet to ensure proper connections.
• Use Debugging Tools: Use an oscilloscope or logic analyzer to monitor signals and identify issues.

By following this documentation, you can effectively integrate and troubleshoot the SSOP48 package in your electronic designs. Always refer to the specific IC's datasheet for detailed information and guidelines.
