How to Use ESP32-WROOM-32: Examples, Pinouts, and Specs

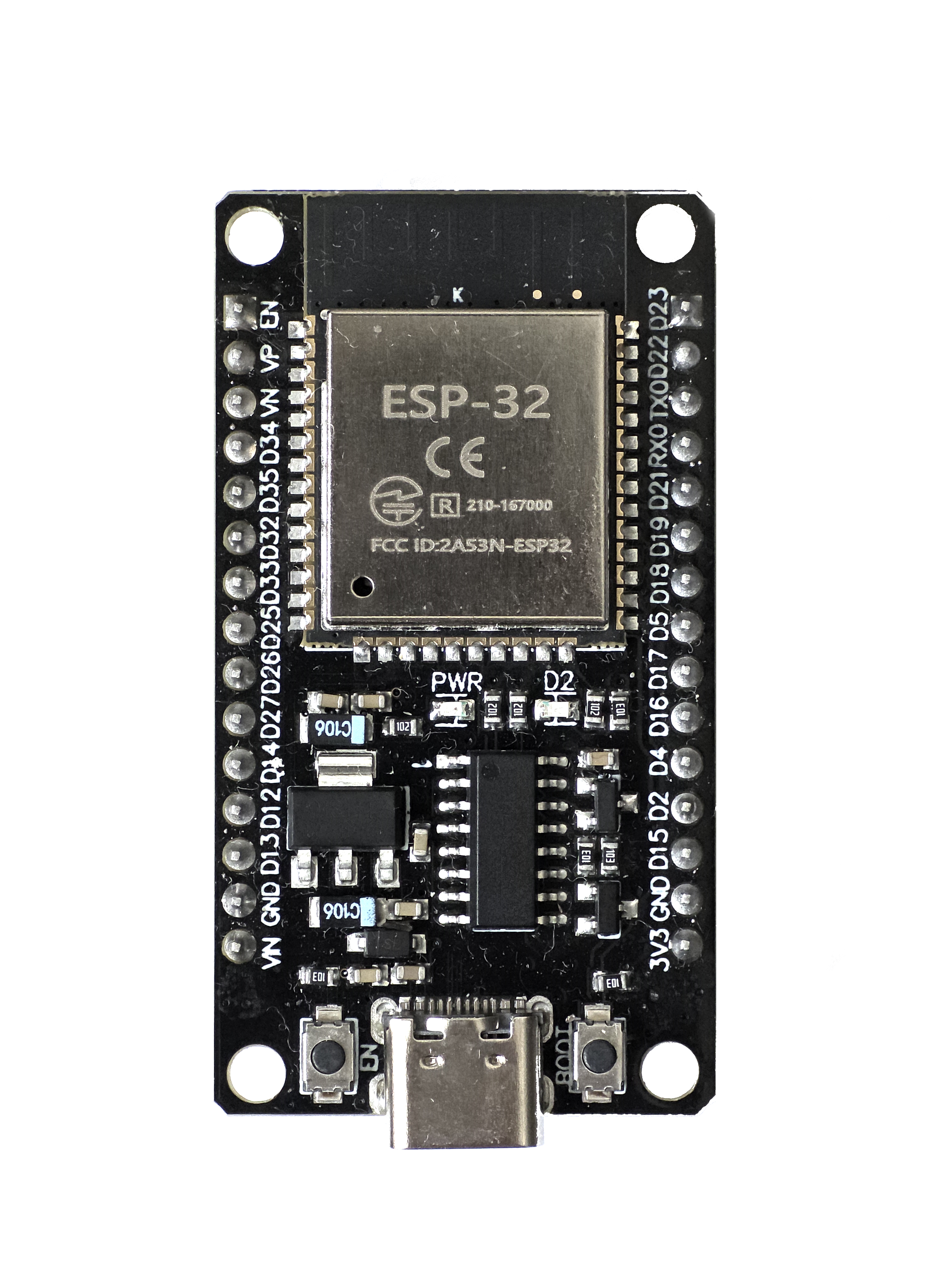

Image of ESP32-WROOM-32
Cirkit Designer LogoDesign with ESP32-WROOM-32 in Cirkit Designer

Introduction

The ESP32-WROOM-32 is a powerful Wi-Fi and Bluetooth microcontroller module designed for IoT applications and embedded systems. It features dual-core processing capabilities, making it suitable for tasks requiring high performance and efficiency. With integrated Wi-Fi and Bluetooth (Classic and BLE), the ESP32-WROOM-32 is widely used in smart home devices, wearables, industrial automation, and other connected applications.
