How to Use Raspberry Pi 4B: Examples, Pinouts, and Specs

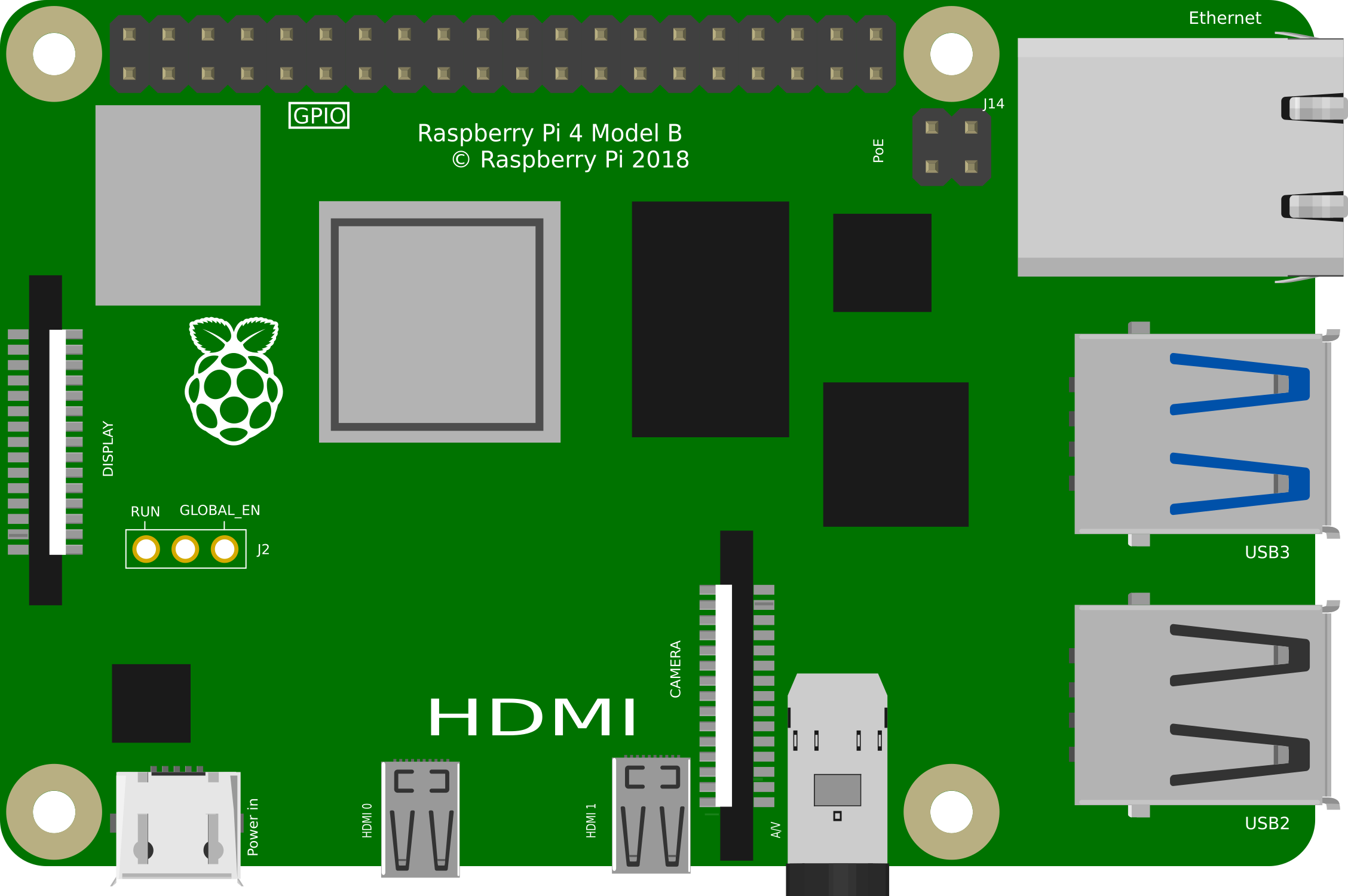

Image of Raspberry Pi 4B
Cirkit Designer LogoDesign with Raspberry Pi 4B in Cirkit Designer

Introduction

The Raspberry Pi 4B is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and built-in Wi-Fi and Bluetooth connectivity. This versatile device is ideal for projects such as learning programming, building IoT devices, creating media centers, and more. Its small form factor and robust capabilities make it a popular choice for hobbyists, educators, and professionals alike.

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Learning Programming: Ideal for beginners to learn Python, Java, and other languages.
  • IoT Projects: Acts as a hub for smart home devices or other IoT systems.
  • Media Centers: Can be used to build a home theater system with software like Kodi.
  • Retro Gaming: Supports emulation software for classic gaming consoles.
  • Robotics: Powers robots and other hardware projects.
  • Edge Computing: Suitable for lightweight AI and machine learning tasks.

Technical Specifications

Key Technical Details

Specification Details
Processor Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM Options 2GB, 4GB, or 8GB LPDDR4
Storage MicroSD card slot (supports up to 1TB)
USB Ports 2x USB 3.0, 2x USB 2.0
Video Output 2x micro-HDMI ports (up to 4K resolution)
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Pins 40-pin GPIO header (3.3V logic)
Power Supply 5V/3A via USB-C or GPIO header
Dimensions 85.6mm x 56.5mm x 17mm
Operating System Raspberry Pi OS (Linux-based), supports other OS like Ubuntu and more

Pin Configuration and Descriptions

The Raspberry Pi 4B features a 40-pin GPIO header for interfacing with external components. Below is a summary of the pin configuration:

Pin Number Pin Name Function Voltage Level
1 3.3V Power Power Output 3.3V
2 5V Power Power Output 5V
3 GPIO2 (SDA1) I2C Data 3.3V
4 5V Power Power Output 5V
5 GPIO3 (SCL1) I2C Clock 3.3V
6 Ground Ground 0V
... ... ... ...
39 Ground Ground 0V
40 GPIO21 General Purpose I/O 3.3V

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 4B in a Circuit

  1. Powering the Raspberry Pi:

    • Use a 5V/3A USB-C power supply to power the Raspberry Pi 4B.
    • Alternatively, power it via the GPIO header (pins 2 and 6 for 5V and ground).
  2. Connecting Peripherals:

    • Attach a monitor via one or both micro-HDMI ports.
    • Connect a keyboard and mouse to the USB ports.
    • Insert a microSD card with a pre-installed operating system (e.g., Raspberry Pi OS).
  3. Using GPIO Pins:

    • Use the GPIO pins to interface with sensors, LEDs, motors, and other components.
    • Ensure proper voltage levels (3.3V logic) to avoid damaging the board.
  4. Networking:

    • Connect to the internet via Ethernet or Wi-Fi.
    • Use Bluetooth to pair with compatible devices.

Important Considerations and Best Practices

  • Cooling: The Raspberry Pi 4B can get hot under heavy loads. Use a heatsink or fan for cooling.
  • Power Supply: Ensure a stable 5V/3A power supply to avoid performance issues.
  • Static Protection: Handle the board carefully to avoid static discharge damage.
  • Software Updates: Regularly update the operating system and software for optimal performance and security.

Example: Blinking an LED with GPIO and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:


Import necessary libraries

import RPi.GPIO as GPIO # Library to control GPIO pins import time # Library for time delays

Pin configuration

LED_PIN = 17 # GPIO pin where the LED is connected

GPIO setup

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(LED_PIN, GPIO.OUT) # Set LED_PIN as an output pin

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


Running the Code

  1. Connect an LED to GPIO pin 17 with a 330-ohm resistor in series.
  2. Save the code as blink.py on your Raspberry Pi.
  3. Run the script using the command: python3 blink.py.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted and contains a valid OS image.
    • Check the power supply for sufficient voltage and current.
  2. Wi-Fi or Bluetooth is not working:

    • Verify that the wireless network is active and within range.
    • Ensure the Raspberry Pi OS is up to date.
  3. GPIO pins are not responding:

    • Double-check the pin connections and ensure the correct pin numbering mode is used in the code.
    • Verify that the GPIO pins are not damaged or shorted.
  4. Overheating:

    • Use a heatsink or fan to cool the Raspberry Pi.
    • Avoid placing the board in an enclosed space without ventilation.

FAQs

  • Can I power the Raspberry Pi 4B with a power bank? Yes, as long as the power bank provides a stable 5V/3A output.

  • What operating systems are supported? The Raspberry Pi 4B supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

  • Can I connect multiple displays? Yes, the Raspberry Pi 4B supports dual displays via its two micro-HDMI ports.

  • How do I reset the Raspberry Pi? Simply unplug and replug the power supply. There is no dedicated reset button.

By following this documentation, you can effectively use the Raspberry Pi 4B for a variety of projects and applications.
