How to Use Arduino UNO R3: Examples, Pinouts, and Specs

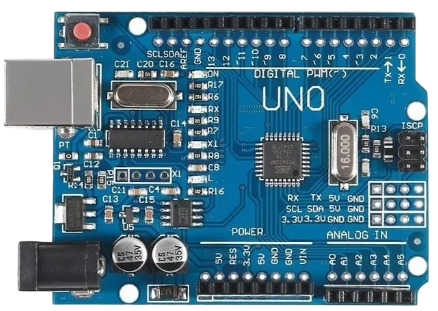

Image of Arduino UNO R3
Cirkit Designer LogoDesign with Arduino UNO R3 in Cirkit Designer

Introduction

The Arduino UNO R3, manufactured by ARDUINO (Part ID: UNO), is a widely used microcontroller board based on the ATmega328P microcontroller. It features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a USB connection for programming, a power jack, and a reset button. The board is designed for ease of use, making it an excellent choice for beginners and professionals alike.

Explore Projects Built with Arduino UNO R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing Arduino UNO R3 in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing Arduino UNO R3 in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO R4 WiFi and Motor Shield Robotic System with LIDAR and Thermal Imaging
Image of Arduino Set up: A project utilizing Arduino UNO R3 in a practical application
This circuit is a robotic control system featuring an Arduino UNO R4 WiFi connected to a motor shield, two 775 motors, a Li-Ion battery, a TF LUNA LIDAR sensor, and an Adafruit AMG8833 thermal camera. The Arduino UNO R4 WiFi serves as the main controller, managing motor operations and sensor data acquisition for navigation and environmental sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Access Control System with Data Logging
Image of Research Internal Design (2): A project utilizing Arduino UNO R3 in a practical application
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino UNO R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Circuit: A project utilizing Arduino UNO R3 in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wheel: A project utilizing Arduino UNO R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Arduino Set up: A project utilizing Arduino UNO R3 in a practical application
Arduino UNO R4 WiFi and Motor Shield Robotic System with LIDAR and Thermal Imaging
This circuit is a robotic control system featuring an Arduino UNO R4 WiFi connected to a motor shield, two 775 motors, a Li-Ion battery, a TF LUNA LIDAR sensor, and an Adafruit AMG8833 thermal camera. The Arduino UNO R4 WiFi serves as the main controller, managing motor operations and sensor data acquisition for navigation and environmental sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Research Internal Design (2): A project utilizing Arduino UNO R3 in a practical application
Arduino UNO-Based Access Control System with Data Logging
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping electronic circuits
  • Robotics and automation projects
  • IoT (Internet of Things) applications
  • Educational purposes in electronics and programming
  • Sensor data acquisition and processing
  • Controlling actuators such as motors, LEDs, and relays

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

Digital Pins

Pin Number Functionality
0 (RX) Serial communication (receive)
1 (TX) Serial communication (transmit)
2-13 General-purpose digital I/O
3, 5, 6, 9, 10, 11 PWM output pins

Analog Pins

Pin Number Functionality
A0-A5 Analog input (10-bit resolution)

Power Pins

Pin Name Functionality
VIN Input voltage to the board
5V Regulated 5V output
3.3V Regulated 3.3V output
GND Ground
RESET Reset the microcontroller

Usage Instructions

How to Use the Arduino UNO R3 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the power jack or VIN pin.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer and select the correct board ("Arduino UNO") and port in the IDE.
    • Write your code in the IDE and upload it to the board using the "Upload" button.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the current drawn by connected components does not exceed the pin's maximum rating (20 mA).

Important Considerations and Best Practices

  • Avoid short circuits between pins or between pins and ground.
  • Use external resistors for LEDs to limit current and prevent damage.
  • When using motors or high-power devices, use external power supplies and appropriate driver circuits.
  • Always double-check connections before powering the board.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to digital pin 13.

// This example code blinks an LED connected to pin 13 on the Arduino UNO R3.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB drivers for the Arduino UNO.
  2. Code does not upload to the board:

    • Verify that the correct board ("Arduino UNO") is selected in the IDE.
    • Ensure no other program is using the same COM port.
    • Press the reset button on the board before uploading.
  3. Components connected to the board are not working:

    • Check the wiring and ensure proper connections.
    • Verify that the components are functional and compatible with the Arduino UNO.
    • Ensure the power supply is sufficient for the connected components.

FAQs

Q: Can I power the Arduino UNO R3 with a battery?
A: Yes, you can use a 9V battery connected to the power jack or VIN pin. Ensure the voltage is within the recommended range (7-12V).

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when powered through an external power supply.

Q: Can I use the Arduino UNO R3 for wireless communication?
A: Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers to enable wireless communication.

Q: How do I reset the board?
A: Press the reset button on the board, or connect the RESET pin to GND momentarily.

This concludes the documentation for the Arduino UNO R3.
