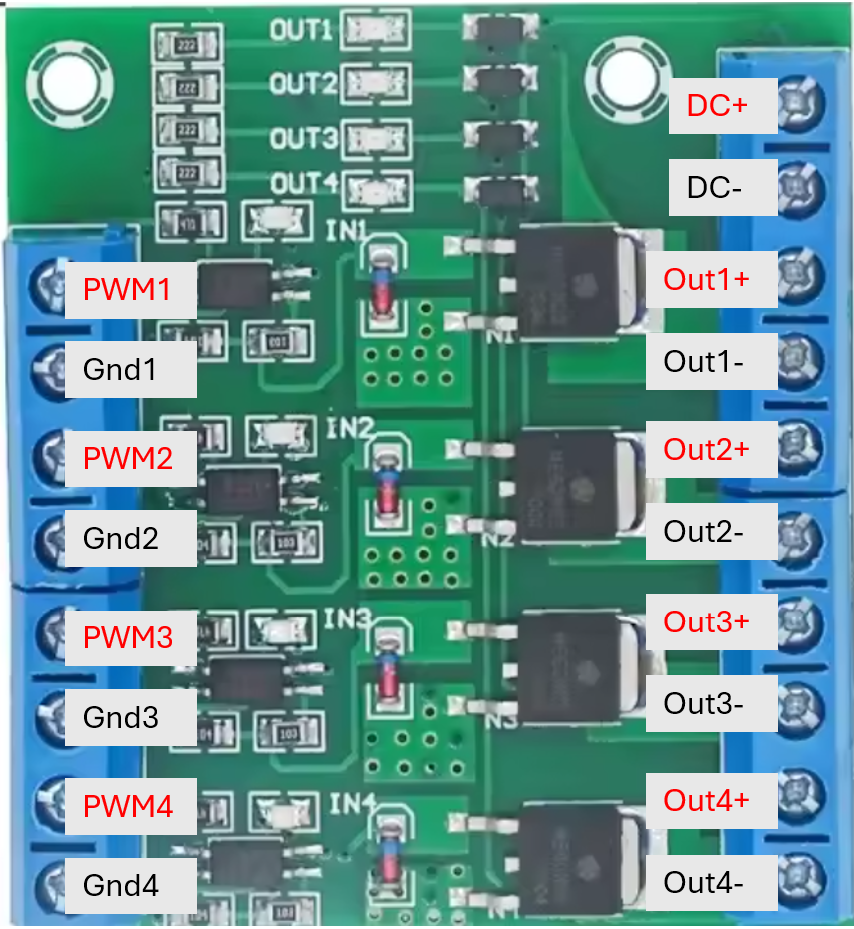

How to Use Mosfet: Examples, Pinouts, and Specs

• A Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a type of transistor used for switching and amplifying electronic signals. It is controlled by voltage and is widely used in power electronics and digital circuits due to its high efficiency and fast switching capabilities.
• Common applications include motor control, power supplies, audio amplifiers, LED drivers, and digital logic circuits.

The specifications of a MOSFET can vary depending on the specific model. Below is an example of typical specifications for an N-channel MOSFET (e.g., IRF540N):

• Type: N-channel or P-channel
• Maximum Drain-Source Voltage (V_DS): 100V (example for IRF540N)
• Maximum Gate-Source Voltage (V_GS): ±20V
• Continuous Drain Current (I_D): 33A (at 25°C)
• Power Dissipation (P_D): 150W
• R_DS(on) (On-Resistance): 0.044Ω (typical)
• Threshold Voltage (V_GS(th)): 2-4V
• Switching Speed: Fast (nanoseconds range)

MOSFETs typically have three pins: Gate (G), Drain (D), and Source (S). Below is a table describing the pin configuration:

1. Determine the Type: Identify whether the MOSFET is N-channel or P-channel. N-channel MOSFETs are more commonly used due to their lower R_DS(on).
2. Gate Voltage: Apply a voltage to the Gate (G) to turn the MOSFET ON. For an N-channel MOSFET, the Gate voltage must be higher than the Source voltage (typically 5V or more for logic-level MOSFETs).
3. Connect the Load: Connect the load between the Drain (D) and the positive supply (for N-channel MOSFETs).
4. Source Connection: Connect the Source (S) to the ground (for N-channel MOSFETs).

• Gate Resistor: Use a resistor (e.g., 10Ω) between the Gate and the control signal to limit inrush current and prevent damage to the MOSFET.
• Heat Dissipation: Use a heatsink if the MOSFET is handling high currents to prevent overheating.
• Flyback Diode: When driving inductive loads (e.g., motors), use a flyback diode across the load to protect the MOSFET from voltage spikes.
• Logic-Level MOSFETs: For microcontroller applications (e.g., Arduino), use logic-level MOSFETs that can fully turn ON with 5V or 3.3V Gate voltage.

Below is an example of controlling an LED with an N-channel MOSFET and Arduino UNO:

// Define the MOSFET Gate pin
const int mosfetGatePin = 9; // Connect to the Gate of the MOSFET

void setup() {
  pinMode(mosfetGatePin, OUTPUT); // Set the Gate pin as an output
}

void loop() {
  digitalWrite(mosfetGatePin, HIGH); // Turn the MOSFET ON (LED ON)
  delay(1000); // Wait for 1 second
  digitalWrite(mosfetGatePin, LOW);  // Turn the MOSFET OFF (LED OFF)
  delay(1000); // Wait for 1 second
}

Circuit Connections:

• Gate (G): Connect to Arduino pin 9 through a 10Ω resistor.
• Drain (D): Connect to the negative terminal of the LED.
• Source (S): Connect to ground.
• Positive terminal of the LED: Connect to a suitable power supply (e.g., 12V) with a current-limiting resistor.

1. MOSFET Not Turning ON:

   • Ensure the Gate voltage is high enough to exceed the threshold voltage (V_GS(th)).
   • Use a logic-level MOSFET if controlling with a microcontroller.

2. Overheating:

   • Check if the MOSFET is operating within its current and power ratings.
   • Use a heatsink or active cooling if necessary.

3. Load Not Working:

   • Verify the connections and ensure the load is properly connected to the Drain.
   • Check for a faulty MOSFET or incorrect pin configuration.

Q: Can I use a MOSFET without a resistor on the Gate?
A: It is not recommended. A resistor (e.g., 10Ω) limits the inrush current to the Gate and protects the MOSFET and the control circuit.

Q: What is the difference between N-channel and P-channel MOSFETs?
A: N-channel MOSFETs require a positive Gate voltage relative to the Source to turn ON, while P-channel MOSFETs require a negative Gate voltage relative to the Source.

Q: How do I choose the right MOSFET for my application?
A: Consider the voltage, current, R_DS(on), and switching speed requirements of your circuit. For microcontroller applications, use a logic-level MOSFET.
