How to Use AC to 12V DC 20A: Examples, Pinouts, and Specs

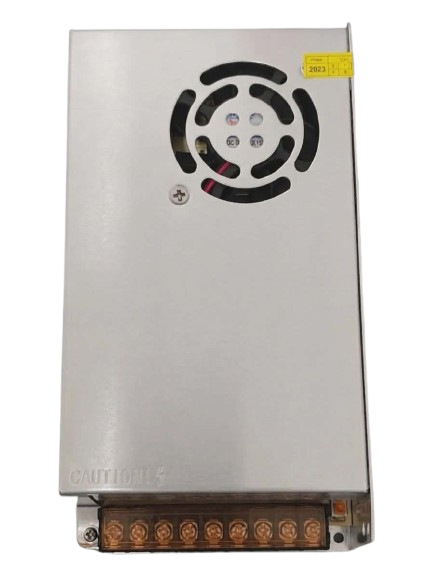

The WEIYU S120-12 240W is a high-performance power supply unit designed to convert alternating current (AC) from the mains into a stable 12 volts direct current (DC) output. With a maximum output current of 20A, this power supply is ideal for powering a wide range of electronic devices, including LED strips, motors, industrial equipment, and other high-current applications. Its robust design ensures reliable operation in demanding environments.

• Powering LED lighting systems (e.g., LED strips, panels)
• Supplying power to DC motors and actuators
• Industrial automation and control systems
• DIY electronics projects requiring high current
• Charging 12V battery systems
• Powering Arduino or Raspberry Pi projects with additional current needs

The WEIYU S120-12 240W power supply has clearly labeled input and output terminals for easy connection. Below is the pin configuration:

1. Input Connection:

   • Ensure the input voltage matches the selected range (110V or 220V AC). Use the voltage selector switch on the side of the unit to set the correct input voltage.
   • Connect the live (L) and neutral (N) wires from the AC mains to the corresponding terminals on the power supply.
   • Connect the ground (GND) terminal to the earth wire for safety.

2. Output Connection:

   • Connect the positive (+V) and negative (-V) terminals to the load (e.g., LED strip, motor, or other devices).
   • Ensure the total current draw of the connected devices does not exceed 20A.

3. Power On:

   • After verifying all connections, plug the power supply into the AC mains and switch it on.
   • The built-in fan will activate to cool the unit during operation.

• Load Capacity: Do not exceed the maximum output current of 20A to avoid overloading the power supply.
• Ventilation: Ensure adequate airflow around the power supply to prevent overheating.
• Safety: Always disconnect the power supply from the mains before making any wiring changes.
• Voltage Adjustment: Some units may include a small potentiometer to fine-tune the output voltage. Use this feature carefully if needed.
• Fuse Protection: Consider adding a fuse on the input side for additional safety.

The WEIYU S120-12 240W can be used to power an Arduino UNO and additional peripherals. Below is an example circuit and code:

1. Connect the +V terminal of the power supply to the VIN pin of the Arduino UNO.
2. Connect the -V terminal of the power supply to the GND pin of the Arduino UNO.
3. Ensure the Arduino's total current draw (including connected peripherals) does not exceed the power supply's capacity.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered by the WEIYU S120-12 240W power supply

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can I use this power supply for a 12V battery charger?

   • Yes, but ensure the charging current does not exceed the battery's specifications.

2. Is the power supply waterproof?

   • No, the WEIYU S120-12 240W is not waterproof. Use it in a dry environment.

3. Can I connect multiple devices to this power supply?

   • Yes, as long as the total current draw does not exceed 20A.

4. How do I know if the power supply is overloaded?

   • The power supply will activate its overload protection, and the output may shut down temporarily.

By following this documentation, you can safely and effectively use the WEIYU S120-12 240W power supply in your projects.
