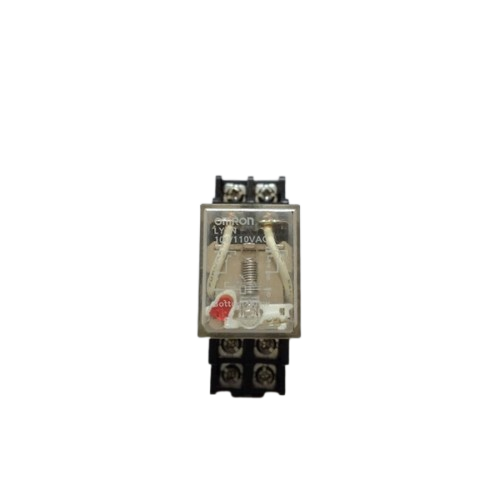

Image of relay ly2n
Cirkit Designer LogoDesign with relay ly2n in Cirkit Designer

Introduction

The LY2N is an electromagnetic relay designed to control high-power circuits using low-power signals. It features a double-pole double-throw (DPDT) configuration, enabling it to switch two independent circuits simultaneously. This relay is widely used in automation, industrial control systems, and home appliances due to its reliability and versatility. Its compact design and robust construction make it suitable for a variety of applications, including motor control, lighting systems, and signal switching.

Explore Projects Built with relay ly2n

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and SIM800L GSM-Based Remote Monitoring System with LoRa and Battery Power
Image of Receiver: A project utilizing relay ly2n in a practical application
This circuit is a remote monitoring and alert system that uses an Arduino Nano to interface with a GSM module (SIM 800L) and a LoRa module for communication. It includes an MQ-2 gas sensor for detecting gas levels, a relay module to control a siren for alerts, and multiple LEDs for status indication. The system is powered by a 12V battery with a step-down regulator to provide the necessary voltages.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Arduino Pro Mini with NRF24L01 Wireless Communication and Humidity Sensing
Image of NRF: A project utilizing relay ly2n in a practical application
This circuit consists of two separate systems, each with an Arduino Pro Mini microcontroller interfaced with an NRF24L01 wireless transceiver module for RF communication. Both systems are powered by 18650 Li-ion batteries, regulated to 3.3V by voltage regulators, and can be turned on or off using rocker switches. Additionally, one system includes a YL-69 humidity sensor interfaced with its Arduino for environmental sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Cellular-Enabled IoT Device with Real-Time Clock and Power Management
Image of LRCM PHASE 2 BASIC: A project utilizing relay ly2n in a practical application
This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Light-Activated Relay Circuit with Photocell and Transistor
Image of darshan: A project utilizing relay ly2n in a practical application
This circuit is a light-sensitive relay switch that uses a photocell (LDR) to control a 12V relay via a BC547 transistor. The relay is powered by a 12V battery, and the transistor acts as a switch that is triggered by the resistance change in the LDR, which is influenced by the ambient light level.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with relay ly2n

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Receiver: A project utilizing relay ly2n in a practical application
Arduino Nano and SIM800L GSM-Based Remote Monitoring System with LoRa and Battery Power
This circuit is a remote monitoring and alert system that uses an Arduino Nano to interface with a GSM module (SIM 800L) and a LoRa module for communication. It includes an MQ-2 gas sensor for detecting gas levels, a relay module to control a siren for alerts, and multiple LEDs for status indication. The system is powered by a 12V battery with a step-down regulator to provide the necessary voltages.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of NRF: A project utilizing relay ly2n in a practical application
Dual Arduino Pro Mini with NRF24L01 Wireless Communication and Humidity Sensing
This circuit consists of two separate systems, each with an Arduino Pro Mini microcontroller interfaced with an NRF24L01 wireless transceiver module for RF communication. Both systems are powered by 18650 Li-ion batteries, regulated to 3.3V by voltage regulators, and can be turned on or off using rocker switches. Additionally, one system includes a YL-69 humidity sensor interfaced with its Arduino for environmental sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LRCM PHASE 2 BASIC: A project utilizing relay ly2n in a practical application
Cellular-Enabled IoT Device with Real-Time Clock and Power Management
This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of darshan: A project utilizing relay ly2n in a practical application
Battery-Powered Light-Activated Relay Circuit with Photocell and Transistor
This circuit is a light-sensitive relay switch that uses a photocell (LDR) to control a 12V relay via a BC547 transistor. The relay is powered by a 12V battery, and the transistor acts as a switch that is triggered by the resistance change in the LDR, which is influenced by the ambient light level.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details of the LY2N relay:

General Specifications

  • Relay Type: Electromagnetic
  • Configuration: Double-Pole Double-Throw (DPDT)
  • Coil Voltage: 12V DC, 24V DC, 110V AC, 220V AC (varies by model)
  • Contact Rating: 10A at 250V AC / 10A at 30V DC
  • Coil Resistance: Depends on the coil voltage (e.g., ~160Ω for 12V DC)
  • Dielectric Strength: 2000V AC (between coil and contacts)
  • Operating Time: Approx. 20ms
  • Release Time: Approx. 20ms
  • Insulation Resistance: ≥100MΩ at 500V DC
  • Mechanical Life: 10 million operations (minimum)
  • Electrical Life: 100,000 operations (minimum)

Pin Configuration and Descriptions

The LY2N relay typically has 8 pins arranged in a rectangular layout. Below is the pin configuration:

Pin Number Description
1 Coil Terminal 1 (Positive)
2 Coil Terminal 2 (Negative)
3 Common Terminal for Pole 1 (COM1)
4 Normally Closed for Pole 1 (NC1)
5 Normally Open for Pole 1 (NO1)
6 Common Terminal for Pole 2 (COM2)
7 Normally Closed for Pole 2 (NC2)
8 Normally Open for Pole 2 (NO2)

Wiring Diagram

The following diagram illustrates the internal connections of the LY2N relay:

Coil: [1]----(Coil)----[2]
Pole 1: [3]----(NC1)----[4]
        [3]----(NO1)----[5]
Pole 2: [6]----(NC2)----[7]
        [6]----(NO2)----[8]

Usage Instructions

How to Use the LY2N Relay in a Circuit

  1. Power the Coil: Connect the relay's coil terminals (pins 1 and 2) to a power source that matches the relay's rated coil voltage (e.g., 12V DC). Ensure the polarity is correct for DC models.
  2. Connect the Load:
    • For each pole, connect the load to the common terminal (COM) and either the normally open (NO) or normally closed (NC) terminal, depending on the desired behavior.
    • When the relay is inactive, the NC terminal is connected to COM. When the relay is energized, the NO terminal is connected to COM.
  3. Control the Relay: Use a low-power control signal (e.g., from a microcontroller or switch) to energize the coil and activate the relay.

Important Considerations

  • Back-EMF Protection: When using the relay with a DC coil, always include a flyback diode across the coil terminals to protect the driving circuit from voltage spikes caused by the collapsing magnetic field.
  • Contact Ratings: Ensure the load does not exceed the relay's contact ratings (10A at 250V AC or 30V DC).
  • Mounting: Use a compatible relay socket for easy installation and replacement. Ensure secure connections to avoid loose contacts.

Example: Controlling the LY2N Relay with an Arduino UNO

Below is an example of how to control the LY2N relay using an Arduino UNO:

// Define the pin connected to the relay's coil
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);
}

void loop() {
  // Turn the relay ON
  digitalWrite(relayPin, HIGH);
  delay(1000); // Keep the relay ON for 1 second

  // Turn the relay OFF
  digitalWrite(relayPin, LOW);
  delay(1000); // Keep the relay OFF for 1 second
}

Note: Use a transistor or relay driver circuit to interface the Arduino with the relay, as the Arduino's GPIO pins cannot directly supply the current required to energize the relay coil.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Relay Not Activating:

    • Cause: Insufficient coil voltage or incorrect wiring.
    • Solution: Verify the power supply voltage matches the relay's coil rating. Check the wiring for proper connections.
  2. Contacts Not Switching:

    • Cause: Faulty relay or excessive load current.
    • Solution: Test the relay with a multimeter to ensure proper operation. Ensure the load does not exceed the contact ratings.
  3. Noise or Chattering:

    • Cause: Unstable control signal or insufficient power supply.
    • Solution: Use a stable power source and ensure the control signal is clean and free of noise.
  4. Burnt Contacts:

    • Cause: Switching high-current loads without proper protection.
    • Solution: Use a snubber circuit or arc suppression techniques for inductive loads.

FAQs

  • Q: Can the LY2N relay handle DC loads?

    • A: Yes, the LY2N relay can handle DC loads up to 10A at 30V DC. Ensure the load does not exceed this rating.
  • Q: Is the LY2N relay suitable for switching high-frequency signals?

    • A: No, the LY2N relay is not designed for high-frequency applications. Use a solid-state relay or other specialized components for such use cases.
  • Q: Can I use the LY2N relay without a socket?

    • A: Yes, but using a compatible socket is recommended for easier installation and maintenance.
  • Q: How do I protect the relay from voltage spikes?

    • A: Use a flyback diode across the coil terminals for DC models and a snubber circuit for AC models to suppress voltage spikes.

This concludes the documentation for the LY2N relay.
