How to Use Arduino Mega 2560 (Rev3): Examples, Pinouts, and Specs

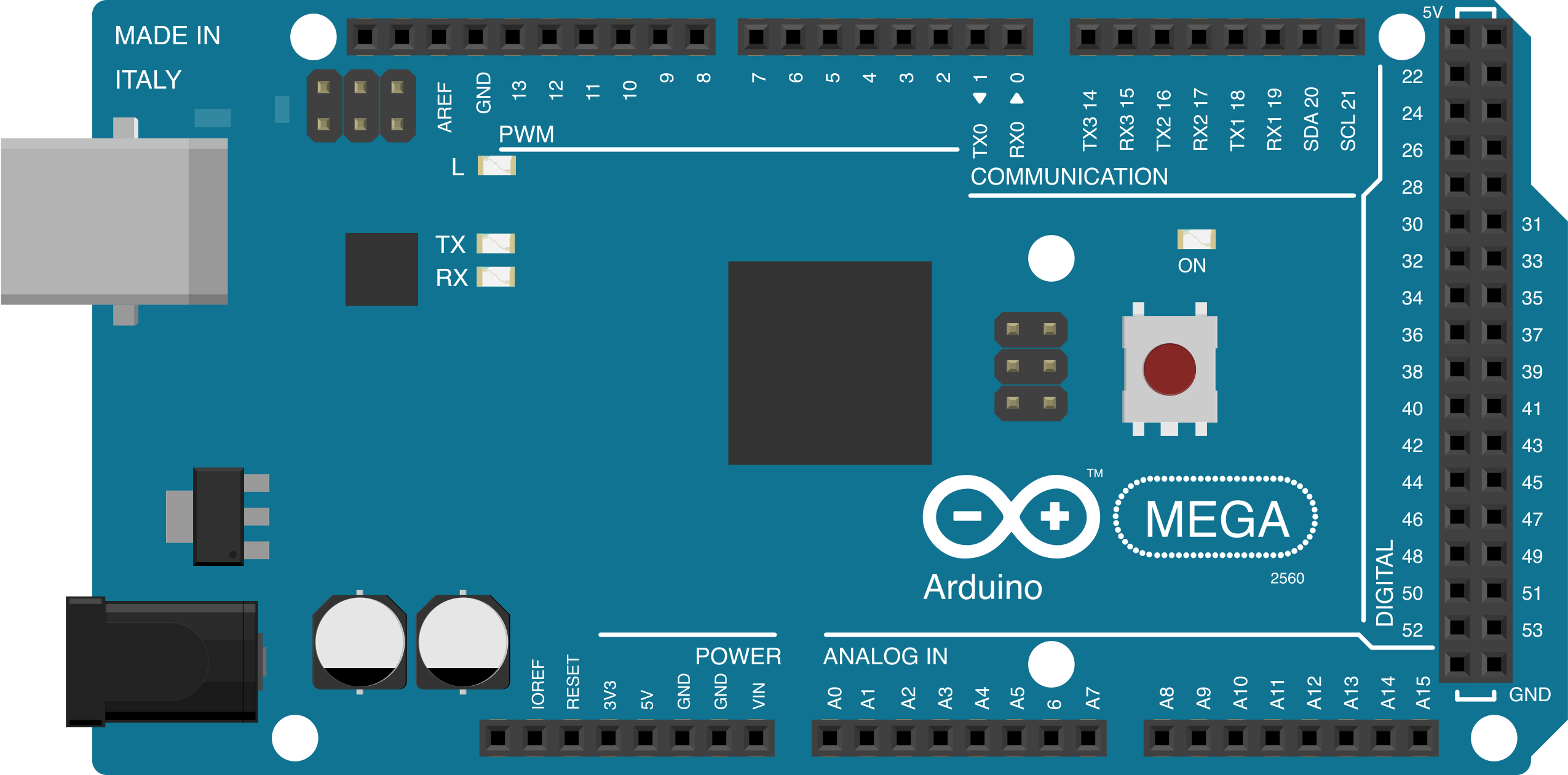

Image of Arduino Mega 2560 (Rev3)
Cirkit Designer LogoDesign with Arduino Mega 2560 (Rev3) in Cirkit Designer

Introduction

The Arduino Mega 2560 (Rev3), manufactured by Arduino (Part ID: A000067), is a powerful microcontroller board based on the ATmega2560. It is designed for projects requiring a large number of input/output connections and advanced processing capabilities. With 54 digital I/O pins, 16 analog inputs, and a USB interface for programming and power, the Mega 2560 is ideal for complex applications such as robotics, IoT systems, and data acquisition.

Explore Projects Built with Arduino Mega 2560 (Rev3)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 Controlled TFT Touchscreen Interface
Image of Tablero Moto: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Smart Home Automation System with LCD Display and Sensor Integration
Image of newfinal: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
This circuit is a multi-functional system controlled by an Arduino Mega 2560, featuring an LCD display for output, multiple LEDs for status indication, and sensors for water level and temperature/humidity monitoring. It also includes a motor driver to control a DC motor and a stepper motor, with user input facilitated by pushbuttons and a rotary potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled Lighting and Display System with Rotary Encoder and Dual Servos
Image of inseg: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
This circuit features an Arduino Mega 2560 microcontroller as its central processing unit, interfacing with a variety of peripherals. It includes a BH1750 light sensor and an OLED display connected via I2C for light intensity measurement and data display, respectively. Additionally, two SG92R servomotors are controlled by PWM signals for actuation, a rotary encoder is used for user input, and an LED is provided for visual output or status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Wireless Joystick-Controlled Display with RTC
Image of RH-WallE Sender Schaltplan (Cirkit Designer).png: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
This circuit is a multi-functional embedded system using an Arduino Mega 2560 as the central controller. It interfaces with various peripherals including a DS3231 RTC for timekeeping, an NRF24L01 for wireless communication, a KY-023 joystick for user input, a 4x4 keypad for additional input, and a TM1637 display for output. The system is powered by a combination of 3.3V and 5V sources.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Mega 2560 (Rev3)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Tablero Moto: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
Arduino Mega 2560 Controlled TFT Touchscreen Interface
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of newfinal: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
Arduino Mega 2560-Based Smart Home Automation System with LCD Display and Sensor Integration
This circuit is a multi-functional system controlled by an Arduino Mega 2560, featuring an LCD display for output, multiple LEDs for status indication, and sensors for water level and temperature/humidity monitoring. It also includes a motor driver to control a DC motor and a stepper motor, with user input facilitated by pushbuttons and a rotary potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of inseg: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
Arduino Mega 2560 Controlled Lighting and Display System with Rotary Encoder and Dual Servos
This circuit features an Arduino Mega 2560 microcontroller as its central processing unit, interfacing with a variety of peripherals. It includes a BH1750 light sensor and an OLED display connected via I2C for light intensity measurement and data display, respectively. Additionally, two SG92R servomotors are controlled by PWM signals for actuation, a rotary encoder is used for user input, and an LED is provided for visual output or status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RH-WallE Sender Schaltplan (Cirkit Designer).png: A project utilizing Arduino Mega 2560 (Rev3) in a practical application
Arduino Mega 2560-Based Wireless Joystick-Controlled Display with RTC
This circuit is a multi-functional embedded system using an Arduino Mega 2560 as the central controller. It interfaces with various peripherals including a DS3231 RTC for timekeeping, an NRF24L01 for wireless communication, a KY-023 joystick for user input, a 4x4 keypad for additional input, and a TM1637 display for output. The system is powered by a combination of 3.3V and 5V sources.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics and automation systems
  • IoT (Internet of Things) devices
  • Data logging and sensor networks
  • Prototyping for industrial control systems
  • Advanced educational projects

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (15 PWM outputs)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
Flash Memory 256 KB (8 KB used by bootloader)
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 101.52 mm x 53.3 mm
Weight 37 g

Pin Configuration and Descriptions

The Arduino Mega 2560 features a wide array of pins for various functionalities. Below is a summary of the pin configuration:

Digital Pins

Pin Number Functionality
0-1 Serial Communication (RX, TX)
2-13 General Digital I/O, PWM (2-13)
14-21 Additional Serial Communication
22-53 General Digital I/O

Analog Pins

Pin Number Functionality
A0-A15 Analog Input (10-bit resolution)

Power Pins

Pin Name Description
VIN Input voltage to the board
5V Regulated 5V output
3.3V Regulated 3.3V output
GND Ground
IOREF Voltage reference for I/O pins

Usage Instructions

How to Use the Arduino Mega 2560

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or DC barrel jack.
  2. Programming:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Mega 2560" as the board type in the IDE.
    • Write your code in the IDE and upload it to the board via the USB connection.
  3. Connecting Components:

    • Use the digital pins for digital sensors, actuators, or communication modules.
    • Use the analog pins for sensors requiring analog input.
    • Ensure proper grounding and voltage levels for all connected components.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin 13.

// This example blinks an LED connected to pin 13 on the Arduino Mega 2560.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations

  • Avoid exceeding the maximum current rating of 20 mA per I/O pin.
  • Use external power when connecting high-power components to prevent overloading the USB port.
  • Ensure proper grounding for all connected devices to avoid erratic behavior.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not recognized by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Install the correct USB drivers for the Arduino Mega 2560.
    • Check that the correct COM port is selected in the Arduino IDE.
  2. Code upload fails:

    • Verify that "Arduino Mega 2560" is selected as the board type in the IDE.
    • Ensure no other application is using the COM port.
    • Press the reset button on the board and try uploading again.
  3. Components connected to the board are not working:

    • Double-check wiring and connections.
    • Ensure the components are compatible with the board's voltage levels.
    • Test the components individually to rule out hardware issues.

FAQs

Q: Can I power the Arduino Mega 2560 with a battery?
A: Yes, you can use a battery with a voltage between 7-12V connected to the VIN pin or DC barrel jack.

Q: How do I reset the board?
A: Press the reset button on the board to restart the microcontroller.

Q: Can I use the Arduino Mega 2560 with shields designed for the Arduino Uno?
A: Yes, the Mega 2560 is compatible with most Uno shields, but ensure the shield does not rely on specific pins unavailable on the Mega.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB or up to 1A when powered via an external power source.

By following this documentation, you can effectively utilize the Arduino Mega 2560 (Rev3) for a wide range of projects and applications.
