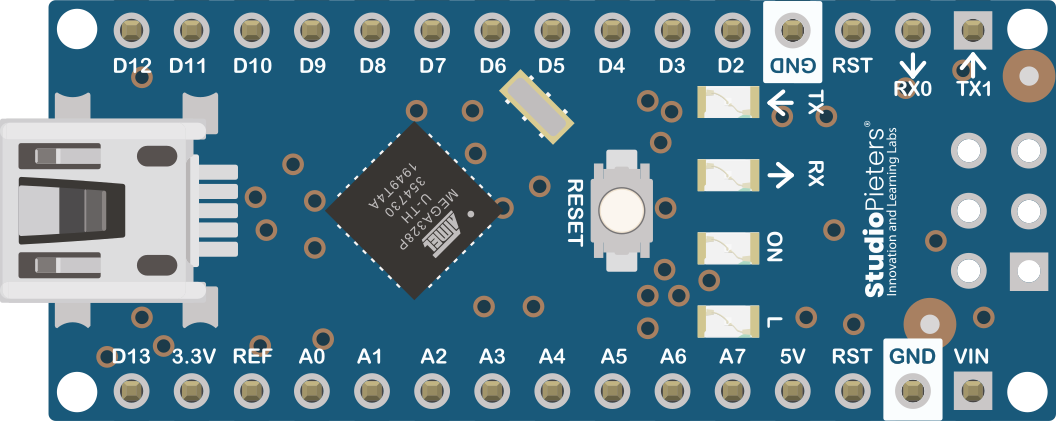

Image of NANO
Cirkit Designer LogoDesign with NANO in Cirkit Designer

Introduction

The NANO is a compact microcontroller board based on the ATmega328P, designed for small-scale projects and prototyping. Its small size, ease of use, and compatibility with the Arduino ecosystem make it a popular choice among hobbyists, students, and professionals. The NANO offers similar functionality to the Arduino UNO but in a smaller form factor, making it ideal for space-constrained applications.

Explore Projects Built with NANO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Wireless Input Controller with Joysticks and Sensors
Image of TRANSMITTER: A project utilizing NANO in a practical application
This is a multifunctional interactive device featuring dual-axis control via PS2 joysticks, visual feedback through an OLED display, and wireless communication using an NRF24L01 module. It includes a piezo buzzer for sound, tactile buttons for additional user input, rotary potentiometers for analog control, and an MPU-6050 for motion sensing. The Arduino Nano serves as the central processing unit, coordinating input and output functions, with capacitors for power stability.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Controlled Obstacle Avoidance Robot with IR and Ultrasonic Sensors
Image of LFOA Circuit Diagram: A project utilizing NANO in a practical application
This is a robotic control system featuring an Arduino Nano that interfaces with two IR sensors, an ultrasonic sensor, and a servomotor for various sensing and actuation tasks. It controls two DC gear motors through an L298N motor driver, all powered by a 12V battery. The system's functionality is determined by the embedded code running on the Arduino Nano, which manages sensor inputs and actuator outputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Smart Sensor System with RS485 Communication and RGB LED Control
Image of NanoSlave: A project utilizing NANO in a practical application
This circuit features an Arduino Nano that interfaces with various sensors and modules, including an RS485 communication module, a WS2812 RGB LED strip, an HC-SR04 ultrasonic sensor, and an SW-420 vibration sensor. The Arduino Nano processes sensor data and controls the LED strip, while also managing communication via RS485 and logging events with a real-time clock (RTC) module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
Image of RTC for Keyboard: A project utilizing NANO in a practical application
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with NANO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of TRANSMITTER: A project utilizing NANO in a practical application
Arduino Nano-Based Wireless Input Controller with Joysticks and Sensors
This is a multifunctional interactive device featuring dual-axis control via PS2 joysticks, visual feedback through an OLED display, and wireless communication using an NRF24L01 module. It includes a piezo buzzer for sound, tactile buttons for additional user input, rotary potentiometers for analog control, and an MPU-6050 for motion sensing. The Arduino Nano serves as the central processing unit, coordinating input and output functions, with capacitors for power stability.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LFOA Circuit Diagram: A project utilizing NANO in a practical application
Arduino Nano-Controlled Obstacle Avoidance Robot with IR and Ultrasonic Sensors
This is a robotic control system featuring an Arduino Nano that interfaces with two IR sensors, an ultrasonic sensor, and a servomotor for various sensing and actuation tasks. It controls two DC gear motors through an L298N motor driver, all powered by a 12V battery. The system's functionality is determined by the embedded code running on the Arduino Nano, which manages sensor inputs and actuator outputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of NanoSlave: A project utilizing NANO in a practical application
Arduino Nano-Based Smart Sensor System with RS485 Communication and RGB LED Control
This circuit features an Arduino Nano that interfaces with various sensors and modules, including an RS485 communication module, a WS2812 RGB LED strip, an HC-SR04 ultrasonic sensor, and an SW-420 vibration sensor. The Arduino Nano processes sensor data and controls the LED strip, while also managing communication via RS485 and logging events with a real-time clock (RTC) module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RTC for Keyboard: A project utilizing NANO in a practical application
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DIY electronics and robotics projects
  • Wearable devices
  • IoT (Internet of Things) applications
  • Sensor-based systems
  • Educational tools for learning microcontroller programming

Technical Specifications

The NANO is equipped with the ATmega328P microcontroller and features the following key specifications:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 of which provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The NANO has a total of 30 pins, including power, analog, and digital pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Description
VIN Input voltage to the NANO when using an external power source (7-12V recommended).
5V Regulated 5V output from the onboard voltage regulator.
3.3V Regulated 3.3V output (maximum current: 50 mA).
GND Ground pins.
RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Description
D0-D13 Digital I/O pins. Pins D3, D5, D6, D9, D10, and D11 support PWM output.

Analog Pins

Pin Description
A0-A7 Analog input pins. Can also be used as digital I/O pins.

Communication Pins

Pin Description
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
A4 SDA pin for I2C communication.
A5 SCL pin for I2C communication.

Usage Instructions

How to Use the NANO in a Circuit

  1. Powering the NANO:
    • Use the USB Mini-B port to power the NANO via a computer or USB adapter.
    • Alternatively, supply 7-12V to the VIN pin for external power.
  2. Connecting Components:
    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals or as additional digital I/O pins.
  3. Programming the NANO:
    • Connect the NANO to your computer using a USB Mini-B cable.
    • Open the Arduino IDE, select "Arduino Nano" as the board, and choose the appropriate processor (ATmega328P).
    • Write your code and upload it to the NANO.

Important Considerations and Best Practices

  • Ensure the input voltage does not exceed the recommended range to avoid damaging the board.
  • Use current-limiting resistors when connecting LEDs or other components to the digital pins.
  • Avoid drawing more than 40 mA from any single I/O pin.
  • Use a proper heat sink or cooling mechanism if the board operates in high-temperature environments.

Example Code for Arduino UNO-Compatible Projects

The following example demonstrates how to blink an LED connected to pin D13:

// This code blinks an LED connected to pin D13 on the NANO.
// The LED will turn on for 1 second and off for 1 second.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The NANO is not recognized by the computer:

    • Ensure the correct USB driver is installed for the NANO.
    • Try using a different USB cable or port.
    • Verify that the correct board and processor are selected in the Arduino IDE.
  2. Code upload fails:

    • Check the COM port in the Arduino IDE and ensure it matches the NANO's port.
    • Press the RESET button on the NANO just before uploading the code.
    • Ensure no other software is using the same COM port.
  3. The NANO is overheating:

    • Verify that the input voltage does not exceed the recommended range.
    • Check for short circuits in the connected components.
  4. Analog readings are unstable:

    • Use proper decoupling capacitors near the analog input pins.
    • Ensure the sensor or input device is properly grounded.

FAQs

Q: Can the NANO be powered directly from a 9V battery?
A: Yes, you can connect a 9V battery to the VIN pin. The onboard voltage regulator will step it down to 5V.

Q: How do I reset the NANO?
A: Press the RESET button on the board or pull the RESET pin LOW momentarily.

Q: Can I use the NANO for I2C communication?
A: Yes, the NANO supports I2C communication using the A4 (SDA) and A5 (SCL) pins.

Q: Is the NANO compatible with Arduino shields?
A: The NANO is not directly compatible with standard Arduino shields due to its smaller size, but you can use jumper wires to connect the shield to the NANO.

This concludes the documentation for the NANO microcontroller board.
